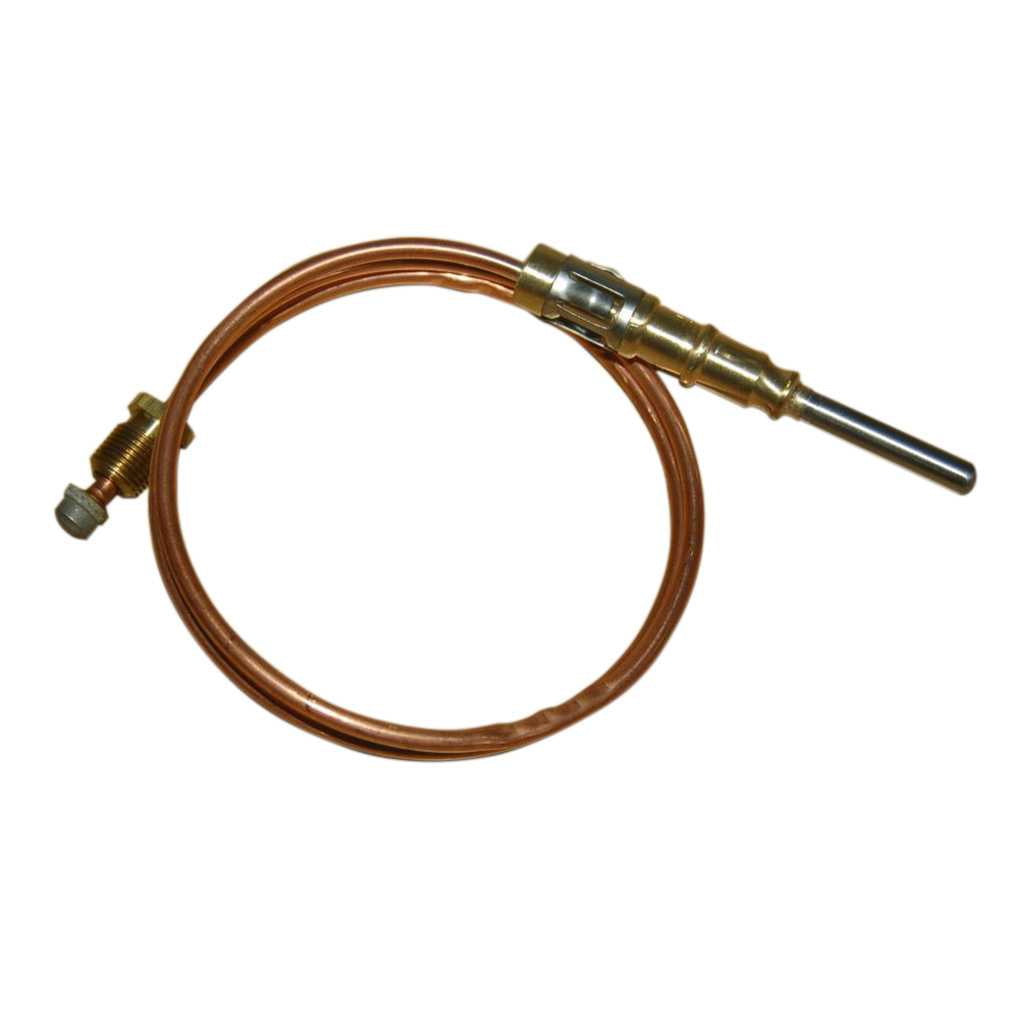

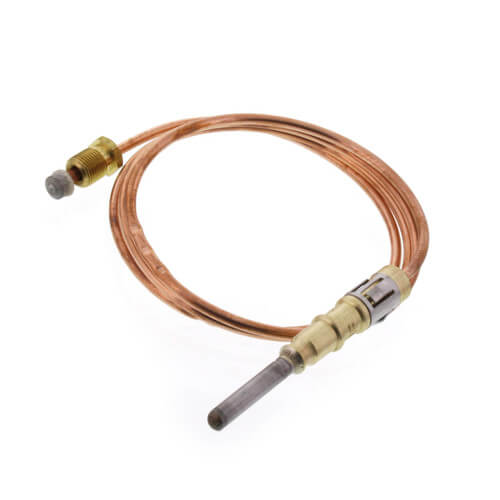

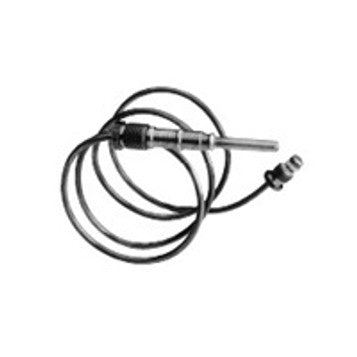

HEATINGVARIOUSMFG-GENERIC K15FA-36 Thermocouple

Product Description

The HEATINGVARIOUSMFG-GENERIC K15FA-36 thermocouple is made for standing pilot ignition systems. It is compatible with BASO brand automatic pilot controls and pilot burners. This device allows for thermoelectric applications where pilot burner brackets support quick snap-in assembly to track the pilot flame efficiently. When the pilot light functions, the thermocouple generates a voltage signal that ensures the gas control valve remains open. If the pilot light extinguishes, the voltage decreases, leading to the automatic closure of the valve.

• Designed for automatic pilot controls and pilot burners.
• Features a snap-in design for fast assembly.
• Suitable for various thermoelectric applications.

Product Highlights

This thermocouple is essential for maintaining flame stability and safety in gas appliances.

Product Information

Standard Information

• Brand: HEATINGVARIOUSMFG-GENERIC
• MPN: K15FA-36

Technical Specifications

• Length: 36 inches
• Maximum Hot Junction Temperature: 1500°F (816°C)
• Open Circuit Voltage Range: 20 - 28 mV
• Connection Type: 11/32-32 male nut connector
• Min Open Circuit: 15 mV
• Min Closed Circuit: 8 mV
