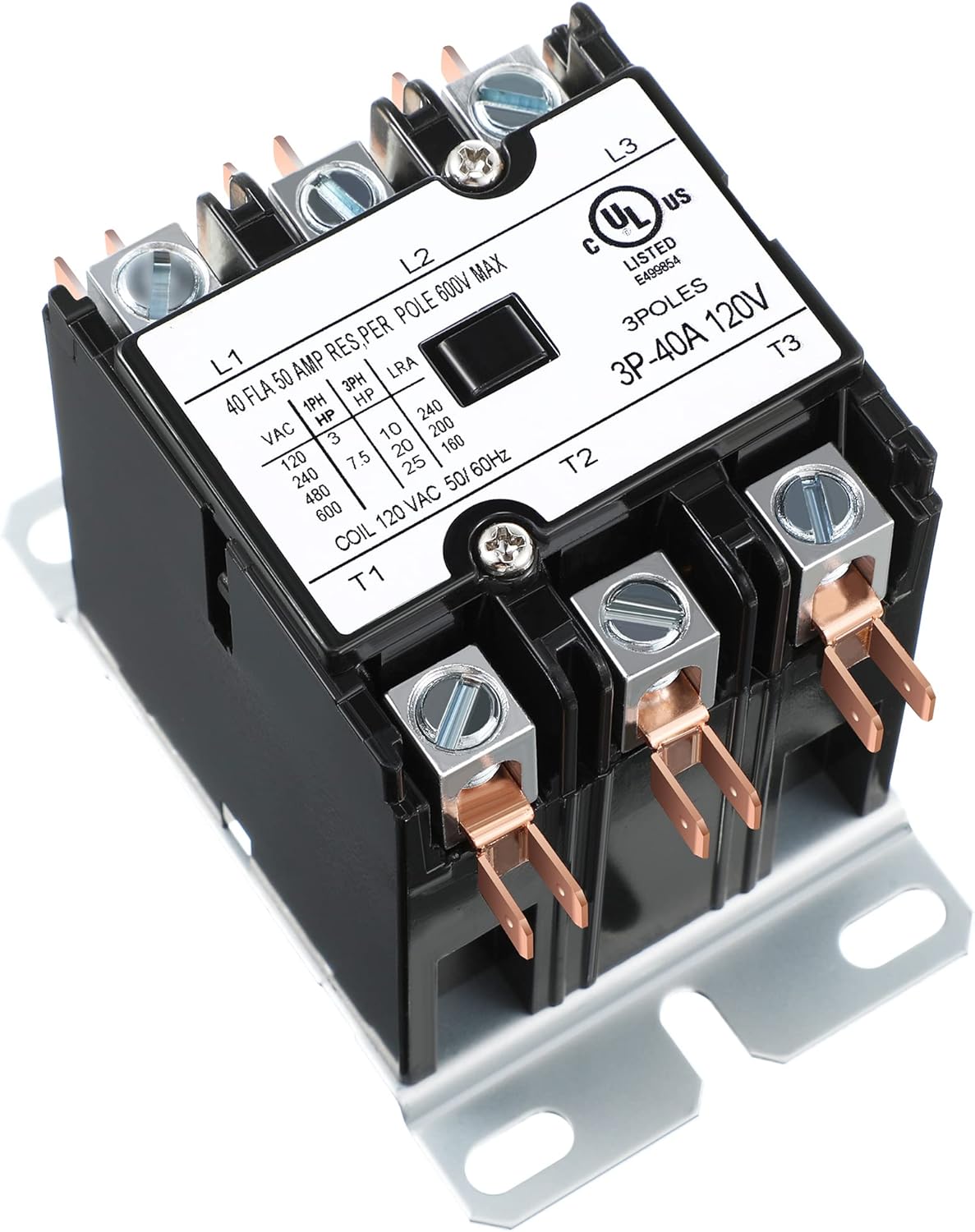

HEATINGVARIOUSMFG-GENERIC DP401203 CONTACTOR 40A 120V 3 POLE

Product Description

The HEATINGVARIOUSMFG-GENERIC DP401203 is a reliable 3-pole contactor for HVAC&R systems. With a full load amps rating of forty and a coil voltage of one hundred twenty volts, it is suited for a variety of applications.

• CSA approved for safety and reliability.
• Features silver cadmium oxide contacts for enhanced conductivity and durability.
• Interchangeable mounting with many competitive contactors.

Product Highlights

This contactor offers a compact design that fits in smaller panels, making it a preferred choice for technicians looking to save space without compromising on performance.

Product Information

Standard Information

• Brand: HEATINGVARIOUSMFG-GENERIC
• MPN: DP401203

Technical Specifications

• Full Load Amps (FLA): 40A
• Coil Voltage: 120V
• Number of Poles: 3 Pole
• Resistive Load Amperage (RLA): 50A
• Termination: Box Lug
• Termination Torque: 35-inch pounds
• Operating Temperature: -40°F to 150°F (-40°C to 65°C)
