HEATINGVARIOUSMFG-GENERIC AG13A020 Schneider Electric Buildings Control Valves

Product Description

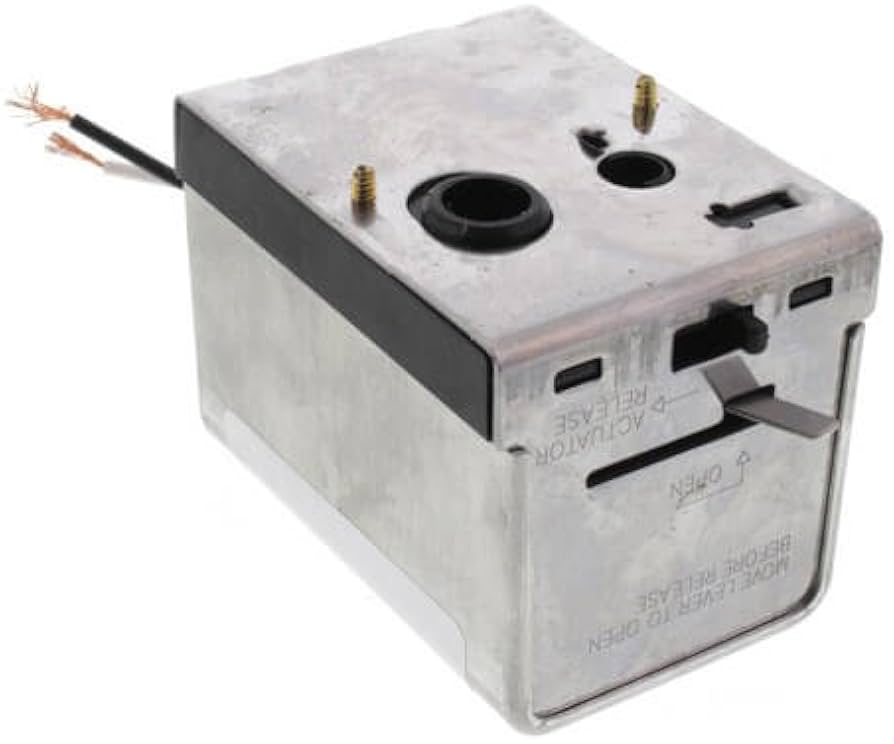

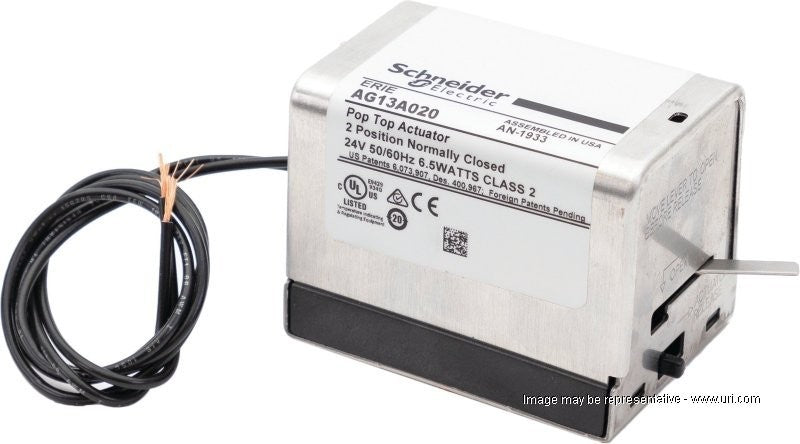

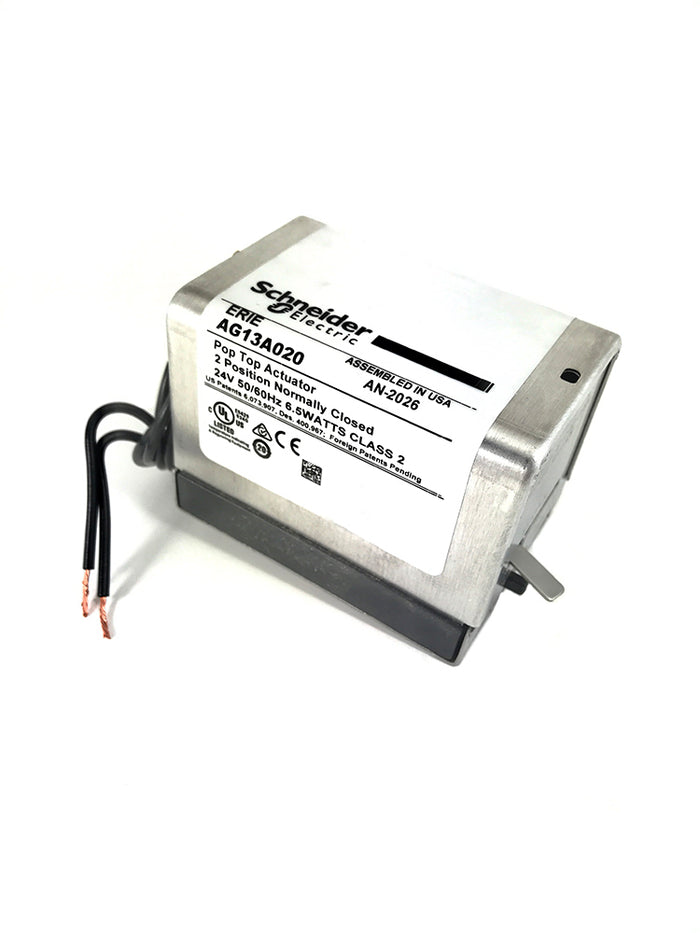

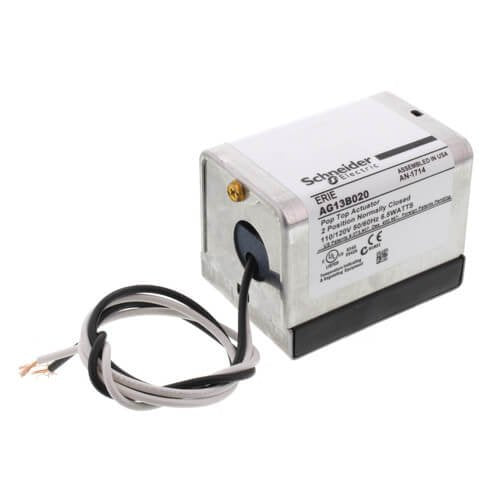

The Schneider Electric Buildings AG13A020 is a control valve suitable for various HVAC applications. This valve is constructed with a brass body and seat, ensuring durability and reliability. It utilizes a nickel-plated stem and a BUNA N paddle for effective operation. The actuator is built with a stainless steel base plate and an aluminum cover to withstand different environmental conditions.

• Compatible with hot or chilled water and up to 50% ethylene glycol.
• Available in two-way or three-way patterns for versatile use.

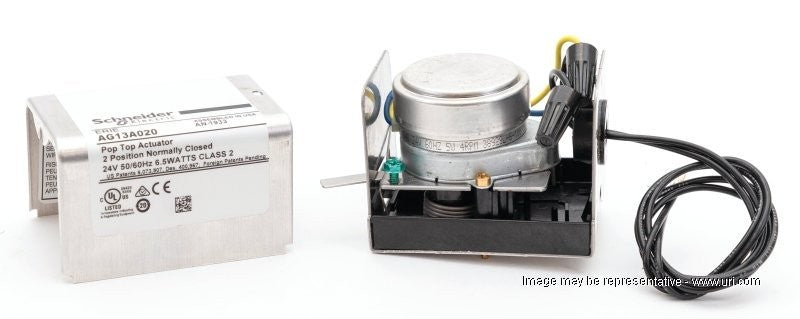

• Features a removable actuator for easy maintenance.

Product Highlights

This control valve efficiently regulates flow in HVAC systems. It supports media temperatures from thirty-two degrees to two hundred degrees Fahrenheit when using the AG actuator, and can reach up to two hundred fifty degrees Fahrenheit with the AH actuator.

Product Information

Standard Information

• Brand: Schneider Electric Buildings
• MPN: AG13A020

Technical Specifications

• SKU: AG13A020
• Connection: Wire Leads
• Fail-Safe: Spring Return
• Power Supply: 24 V
• Type: Actuator Only
• Supply Va: 7.5 VA
• Control Signal: Two Position
• Flow Pattern: 2-Way
• Valve Trim: Brass
• Actuator Type: Electric
• Supply Voltage (Nominal): 24 VAC
• Size: 1/2, 3/4, 1
• Cv Range: 1.0 to 8.0
• Connections: FNPT, Sweat, or inverted flare (3/4 only)
• Flow Characteristic: Quick Opening
• Leakage Rating: ANSI Class IV (0.01% of rated capacity)
• Maximum Pressure Rating: 300 psig (2067 kPa)
• Materials Of Construction: Brass valve body and seat, nickel-plated stem, BUNA N paddle; stainless steel base plate and aluminum cover on actuator.
• Media Compatibility: Hot or chilled water; 50% or less ethylene glycol; 15 psig steam.
• Media Temperature Range: 32 degrees to 200 degrees Fahrenheit (0 degrees to 93 degrees Celsius) with AG actuator; up to 250 degrees Fahrenheit (121 degrees Celsius) with AH actuator.
