HEATINGVARIOUSMFG-GENERIC 3MFD-440V Dual Run Capacitor

Product Description

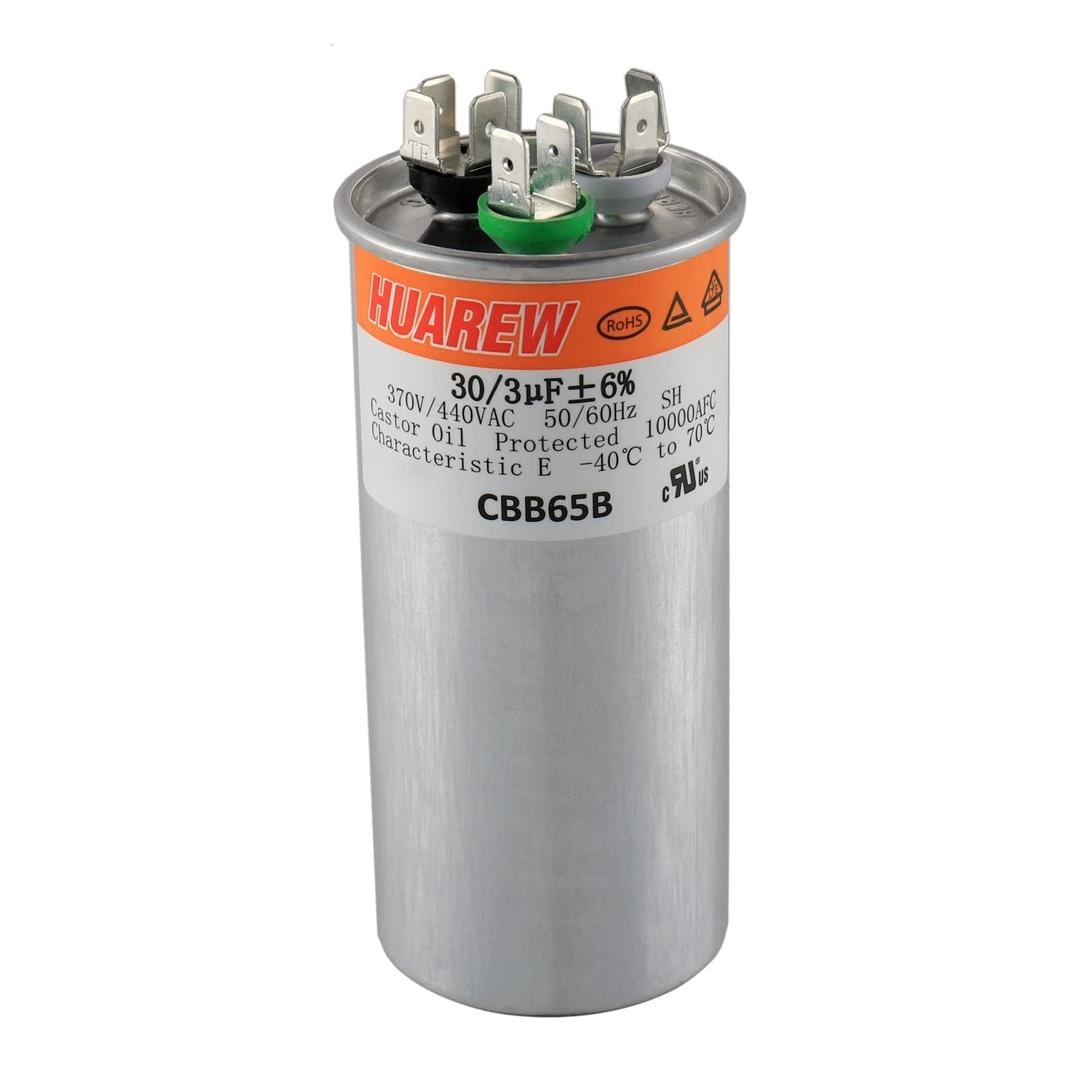

The HEATINGVARIOUSMFG-GENERIC 3MFD-440V is a dual run capacitor, ideal for single-phase AC applications such as air conditioners and heat pumps. This capacitor employs metalized polypropylene film, which effectively minimizes heat while enhancing efficiency. The unit is encapsulated in biodegradable oil, making it an environmentally friendly choice. It operates at voltage ratings of 370 VAC and 440 VAC, ensuring reliable performance across various applications. The round design includes quick connect terminals or flexible wires, simplifying installation.

• Designed for single-phase AC applications.
• Features metalized polypropylene film for reduced heat.
• Encapsulated in biodegradable oil for environmental safety.

Product Highlights

Product Information

Standard Information

• Brand: HEATINGVARIOUSMFG-GENERIC
• MPN: 3MFD-440V

Technical Specifications

• Capacitance: 3/30/45 MFD
• Voltage: 440 VAC
• Frequency: 50/60 Hz
• Capacitance Tolerance: ±6%
• Rated Case Temperature: -25°C/+70°C
• Shape: Round
• Termination: Tin plated leads, quick connect terminals or flexible wires
• Capacitor Type: Dual

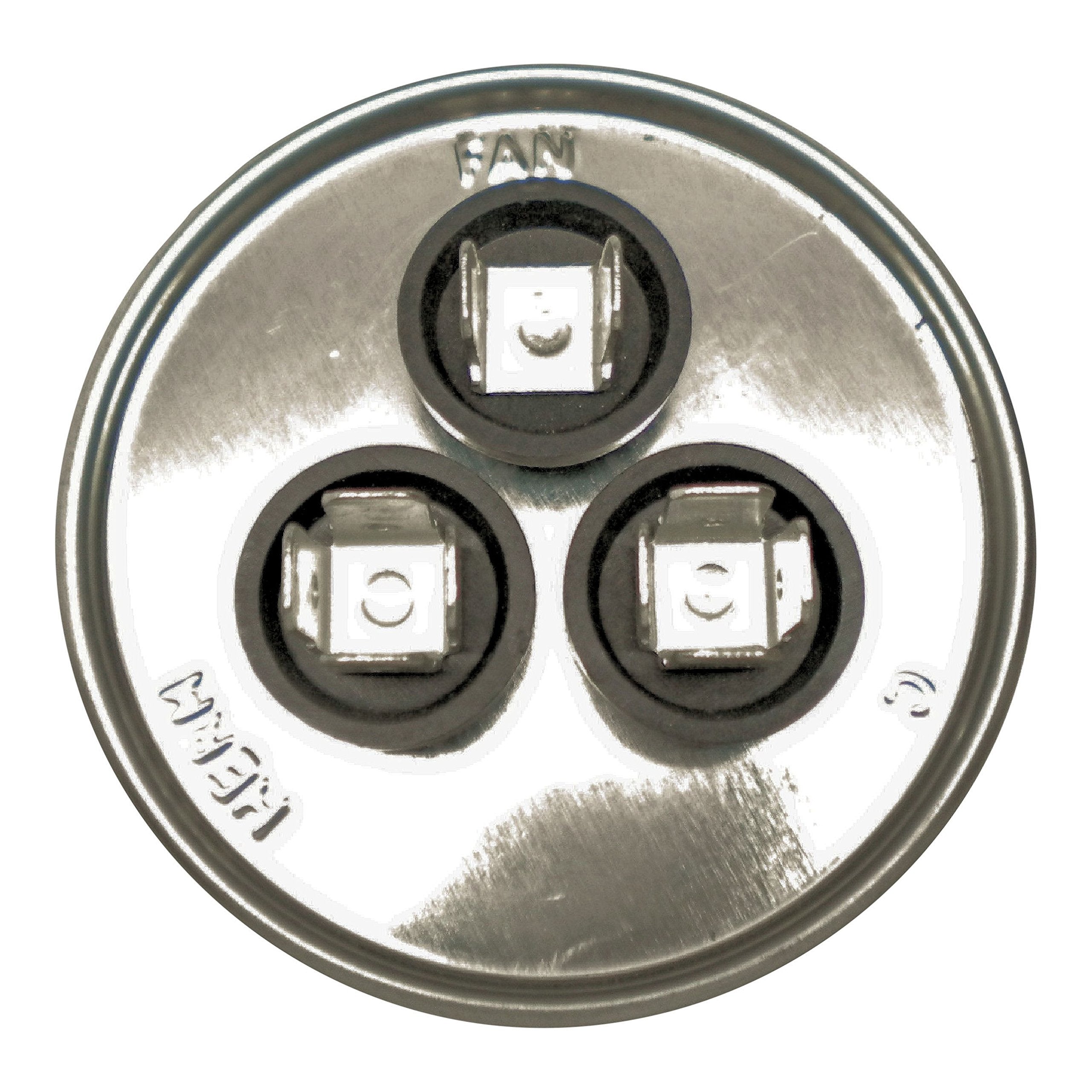

• Terminals: 1 WH term - 3 blades, 1 GR term - 2 blades, 1 CPT term
• Round Base Dimension: 2-1/2 inches
• Voltage Rating: 440V
