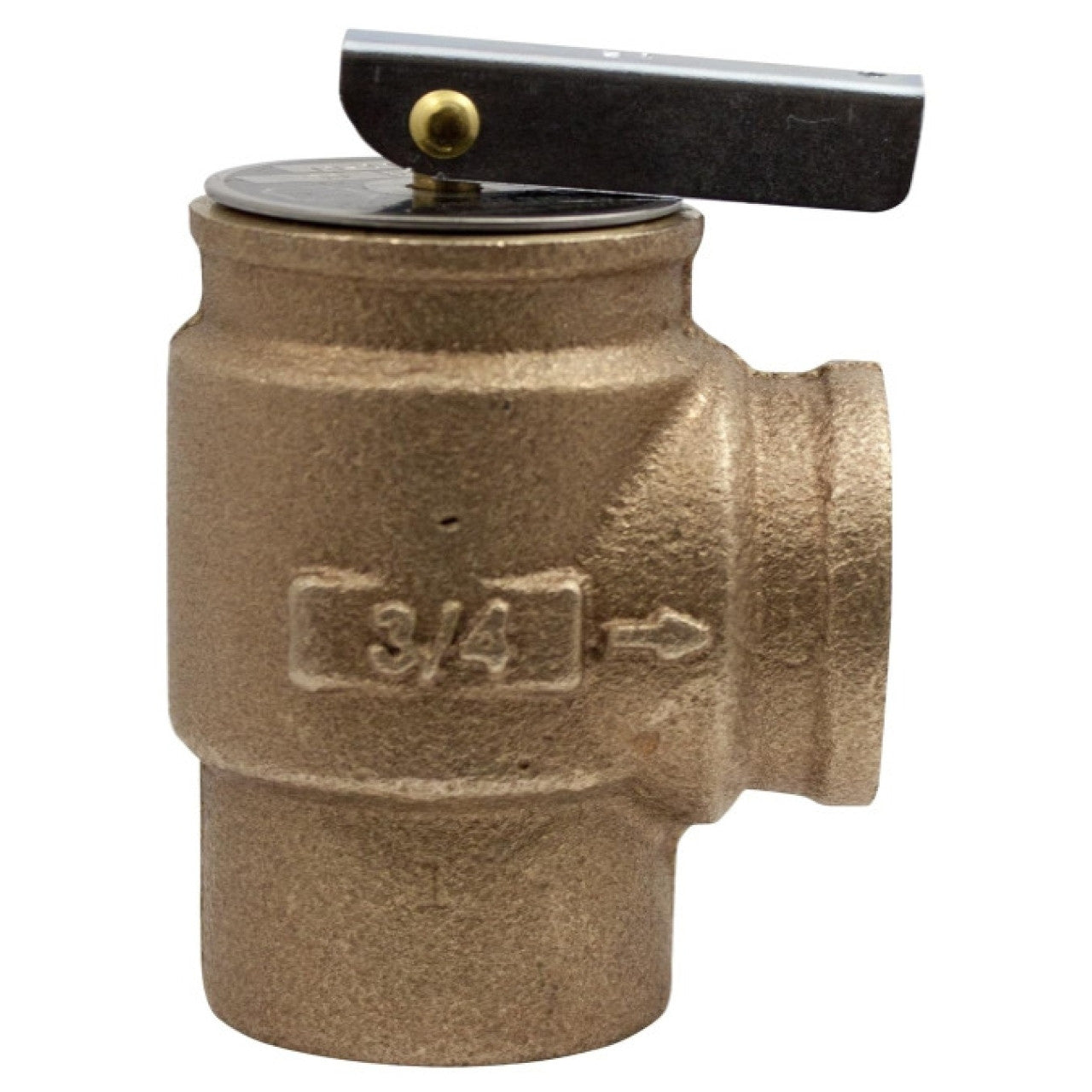

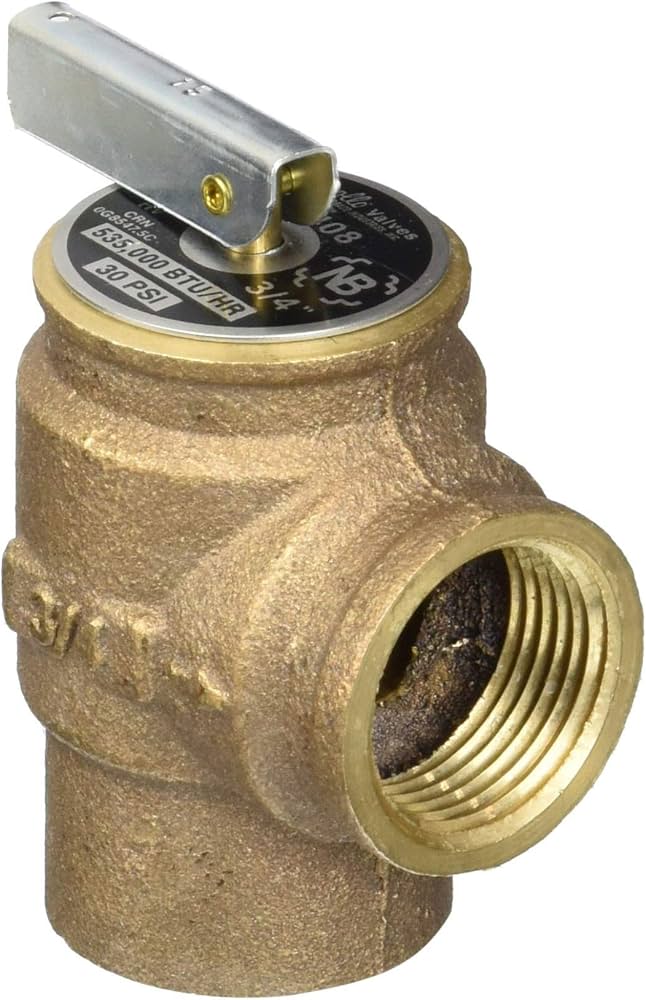

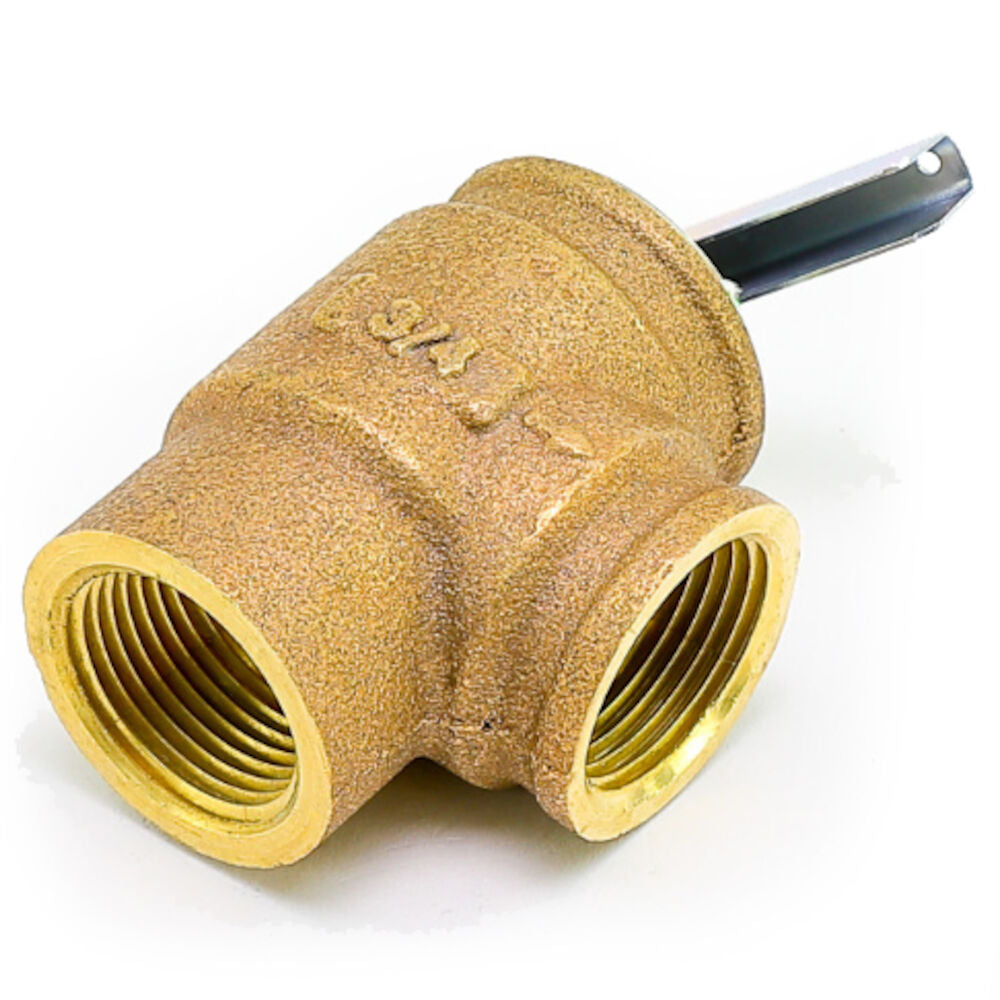

HEATINGVARIOUSMFG-GENERIC 10-408-05 Apollo 10-400 Uni-Body Safety Relief Valve

Product Description

The HEATINGVARIOUSMFG-GENERIC 10-408-05 is a uni-body safety relief valve. This valve is designed to provide protection against excessive water pressure and steam. It meets ASME Section IV requirements, making it suitable for hot water boilers and heating systems.

• 3/4 Female NPT inlet and outlet
• Pre-set at 30 PSI with a capacity of 535,000 BTU
• Maximum temperature service of 250 degrees F

Product Highlights

This safety relief valve offers reliable safety features for heating systems. It is ideal for managing high-pressure scenarios.

Product Information

Standard Information

• Brand: HEATINGVARIOUSMFG-GENERIC
• MPN: 10-408-05

Technical Specifications

• Body Material: Bronze
• End Style: FNPT x FNPT
• Nominal Size: 3/4 inches
• Pressure Rating: 30 psi
• Temperature Rating: 250 degrees F
• BTU/hr: 2,316,000
• Series: 10-400
• Media: Water
