Heatingvariousmfg-generic 015G-4292 Heatingvariousmfg-generic Danfoss RA2000 Thermostatic Radiator Operator

Product Description

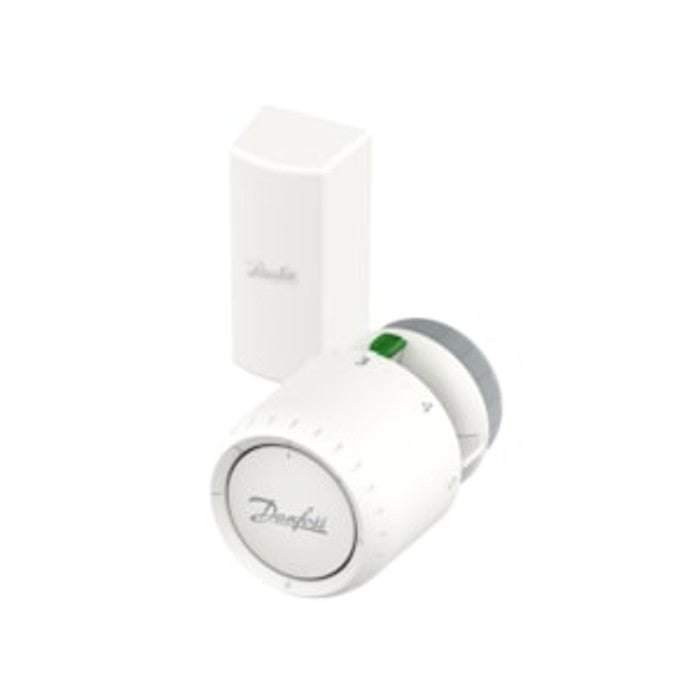

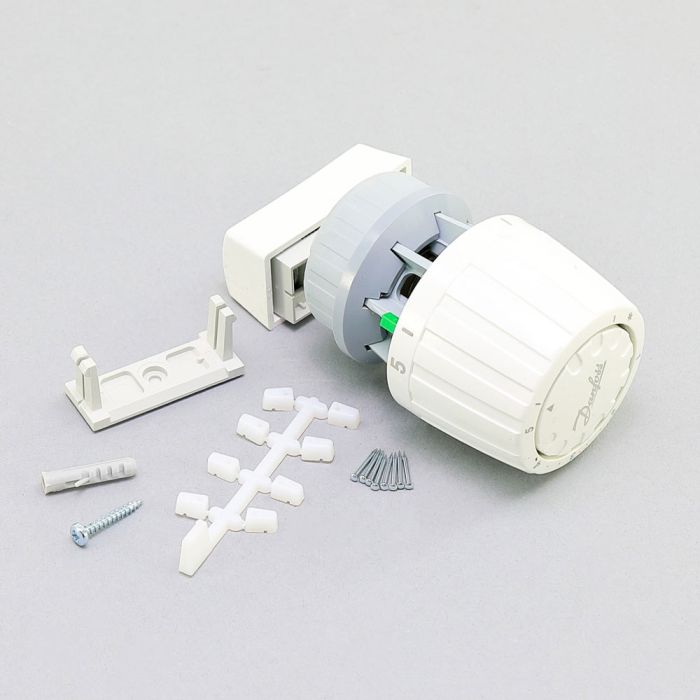

The Heatingvariousmfg-generic 015G-4292 is a Danfoss RA2000 thermostatic radiator operator. This component controls the flow of hot water or low-pressure steam in heating systems.

• Valve-mounted dial with six-foot remote sensor
• Setpoint adjustable from forty-five to eighty-six degrees Fahrenheit
• Compatible with hot water and low-pressure steam

Product Highlights

This non-electric thermostat offers quick response and effective comfort control for different heating applications.

Product Information

Standard Information

• Brand: Danfoss
• MPN: 015G4292

Technical Specifications

• Series: RA2000
• Cv Range: 1.6 to 2.8
• Pipe Size Range: 1/2 to 1-1/4
• Maximum Pressure Rating: Test pressure 232 psig (1600 kPa)
• Maximum Pressure: Water 145 psig (1000 kPa), steam 15 psig (103 kPa)
• Media Compatibility: Hot water and low pressure steam
• Media Temperature Range: Maximum 250 degrees Fahrenheit (121 degrees Celsius) for water or steam
• Setpoint Range: Adjustable 45 to 86 degrees Fahrenheit (7 to 30 degrees Celsius)
• Operating Temperature: Maximum sensor temperature 140 degrees Fahrenheit (60 degrees Celsius)
• Connections: FPT x MPT union tailpiece or double solder union (1/2 and 3/4 straight bodies only)
• Body Pattern: 2-way straight, angle or side-mount angle
