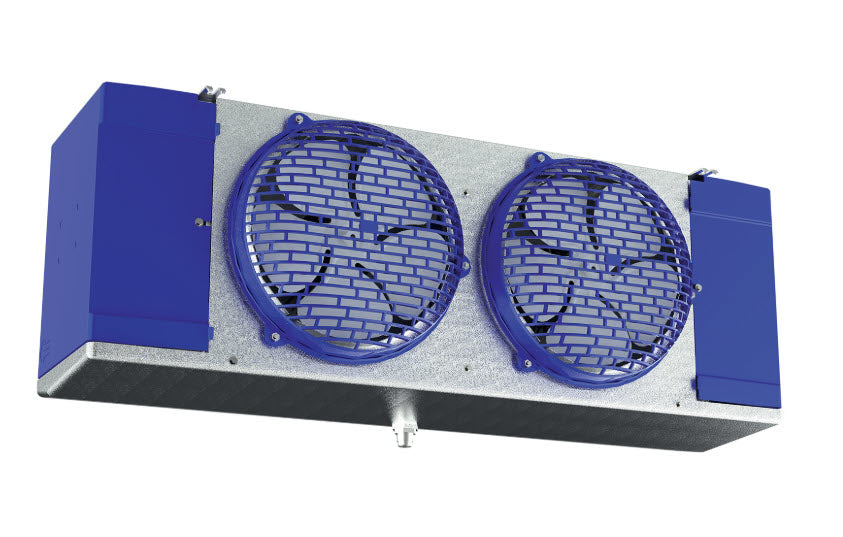

Heatcraft HEL0105AY6AMAB0000 Low Profile Walk In Cooler

Product Description

The HeatCraft HEL0105AY6AMAB0000 low profile walk-in cooler is designed for cooler applications. Operating at 115/1/60 voltage, it delivers 12,600 BTU/H capacity with a 1,305 CFM. This unit features air defrost and is suitable for use with R-454A refrigerant. The cooler has a 1/20 HP motor.

• Features hinged and removable access panels
• Equipped with a hinged drain pan
• Includes an easy service motor mount

Product Highlights

The HeatCraft HEL0105AY6AMAB0000 is a low-profile walk-in cooler with a 2-speed EC motor, ideal for maintaining optimal temperatures in walk-in cooler environments.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: HEL0105AY6AMAB0000

Technical Specifications

• Application: cooler
• CFM: 1,305
• Capacity BTUH: 12,600
• Coil Inlet OD: 1/2
• Defrost Type: air defrost
• Depth In: 13.25
• Drain MPT: 3/4
• Dual Rated: False
• External Equalizer OD: 1/4
• FPI: 6
• Fins Per Inch: 6
• Height (In.): 16.4375
• Length (in.): 45.5
• Motor Amps: 1.8
• Motor HP: 1/20
• Motor Type: 2-Speed EC
• Motor Voltage: 115/1/60
• Motor Watts: 110
• No Of Fans: 2
• Number Of Circuits: 3
• Number Of Coil Circuits: 3
• Product Brand: Chandler
• Product Category: Unit Coolers
• Product Style: Low Profile
• Product Type: Walk In Unit Coolers
• Refrigerant: R-454A
• Suction Od: 5/8
• Tube OD: 3/16
• Unit MCA: 2.0
• Unit MOPD: 20
• Voltage: 115/1/60
