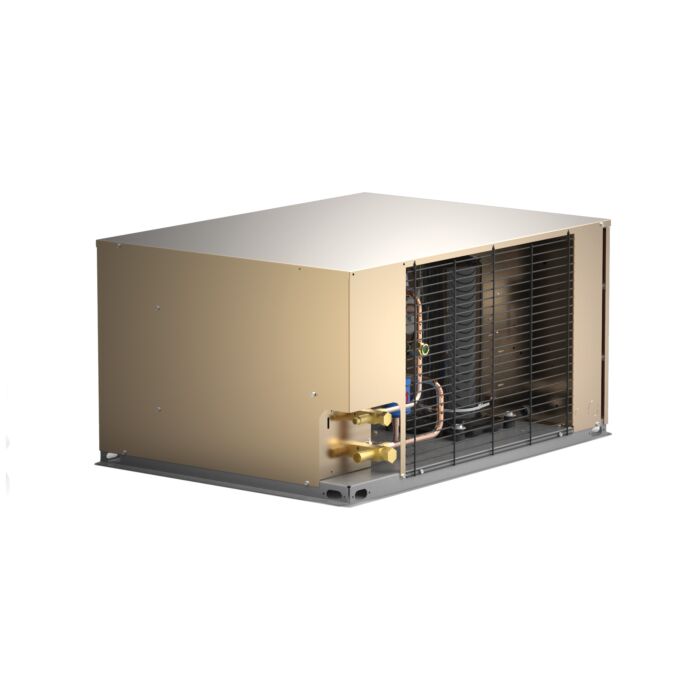

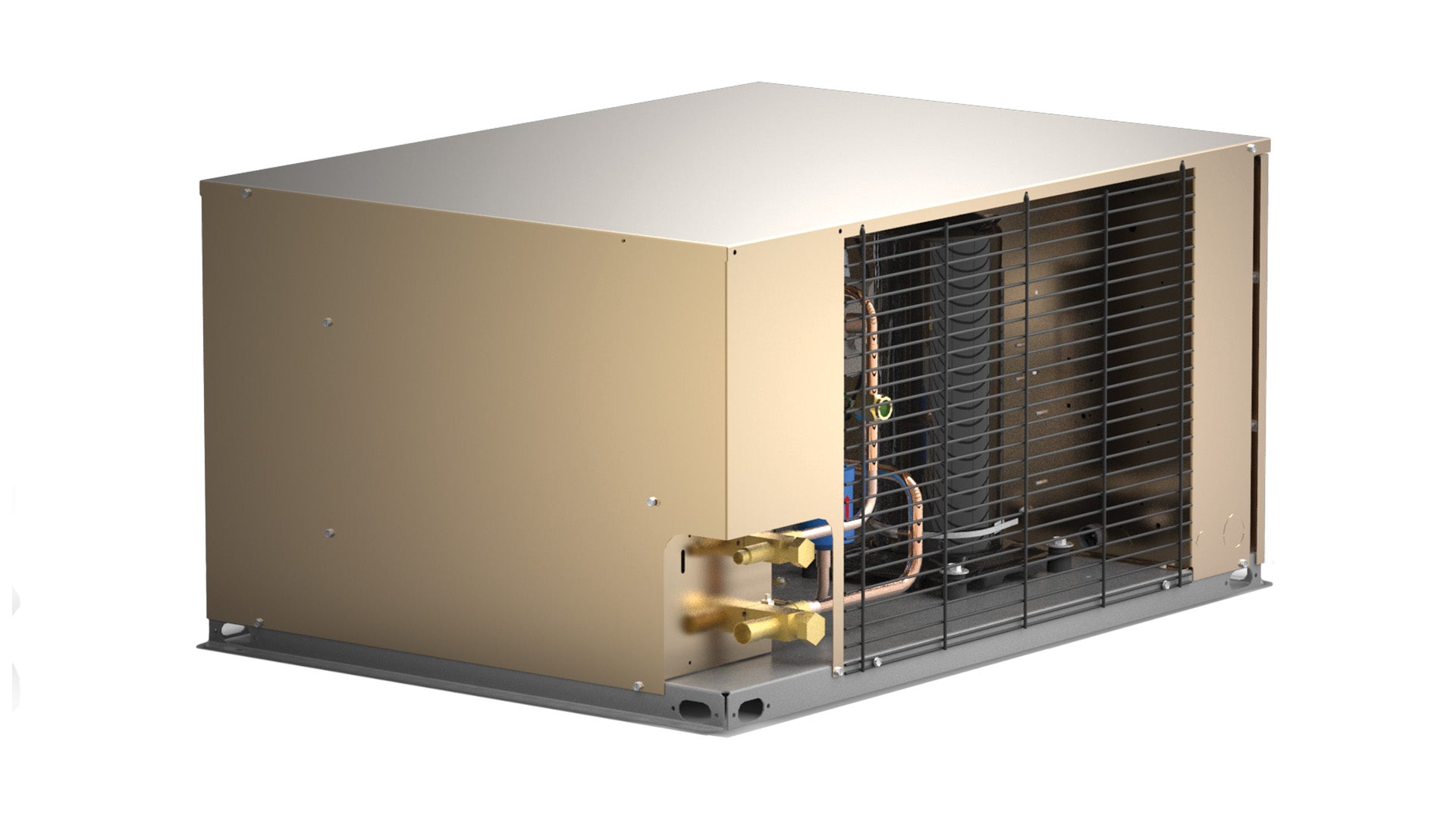

Heatcraft HCH0030MBACZA0000 Air-Cooled Condensing Unit

Product Description

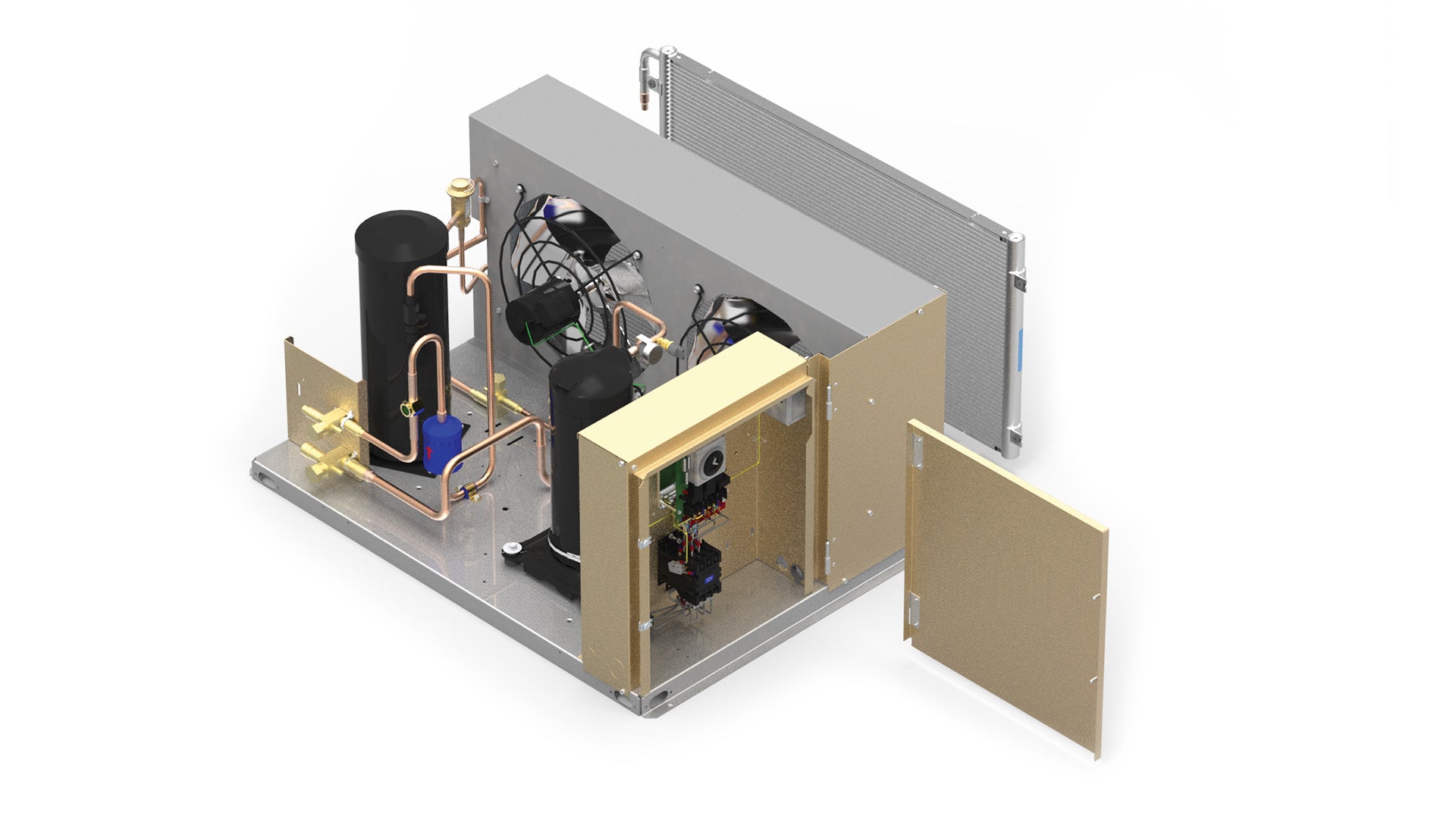

The Heatcraft HCH0030MBACZA0000 is an air-cooled condensing unit designed for flexibility and serviceability. It features Copeland Hermetic reciprocating or Scroll compressors and LG scroll compressors. Piping connections are externally mounted, and cabinets are removable for easy access to service components. These designs are energy efficient and approved for use with multiple refrigerants.

• Copeland Hermetic reciprocating or Scroll compressors
• Piping connections are externally mounted
• Energy efficient designs

Product Highlights

This air-cooled condensing unit is designed for cooler applications and medium temperature operating ranges. It is configurable to meet minimum AWEF, Title 24 or other regulations.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: HCH0030MBACZA0000

Technical Specifications

• Product Brand: Chandler
• Product Type: Air-Cooled Condensing Units
• Product Category: Condensing Units and Packaged Systems
• Product Style: 0.5 - 6 HP Horizontal Air Discharge
• Product Classification: current
• Application: cooler
• Operating Range: Medium Temperature
• Compressor Type: Scroll
• Compressor P N: ZS21KAE-PFV
• Voltage: 208-230/1/60
• Cabinet: C3
• Condenser Coil Type: Microchannel Coil
• Rating Point: 95 00b0 F Ambient 25 00b0 F SST
• Ambient Temperature F: 95 00b0 F
• Suction Temperature F: 25 00b0 F
• Capacity BTUH: 31,930
• Meets Minimum Awef: TRUE
• Refrigerant: R-404A
• Height (In.): 29.25
• Depth In: 30.25
• Width (In.): 43.875
• Approx Net Weight (lbs): 297
• Receiver 90 Pc Full Standard Lbs: 20
• Receiver 90 Pc Full Optional Lbs: 40
• Sound Data Dba: 63
• Compressor Model Number: ZS21KAE-PFV
• Power: 208-230/1/60
• Compressor RLA: 20.83333333
• Compressor LRA: 112
• Fan Motor Qty: 1
• Fan Motor Fla: 3.5
• Defrost Amps: 30
• MCA: 29.5
• MOPD: 50
• Evap Fan Amps: 10
• Defrost Heater Amps: 30
• Remote Loads 1 Contractors High Amps Electric Defrost Mca: 39.5
• Remote Loads 1 Contractors High Amps Electric Defrost Mopd: 60
• Connection Type: Parallel Piped
• Liquid Od: 0.5
• Suction Od: 0.875
• HP: 3
• Manufacturer: Heat Craft
• Manufacturer Part Number: HCH0030MBACZA0000
• Temperature: Medium
• Compressor Brand: Copeland Scroll
