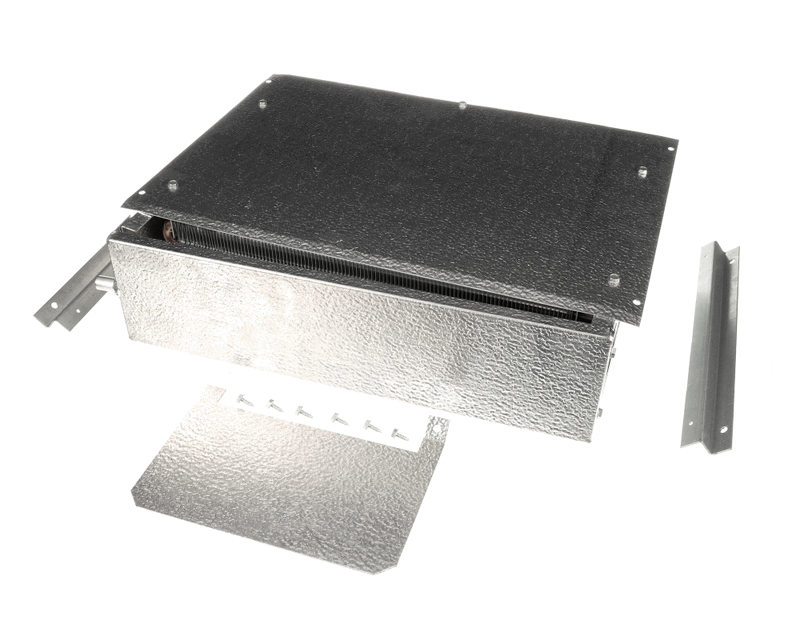

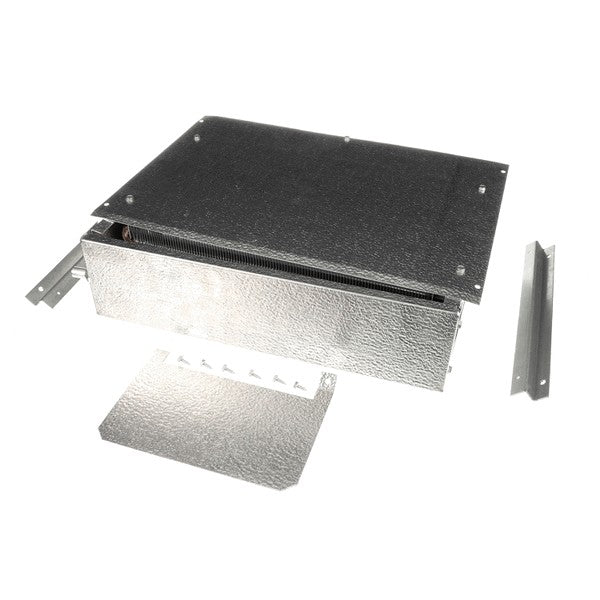

Heatcraft BBM11AG Evaporator Assembly 115V

Product Description

The HEATCRAFT BBM11AG evaporator assembly is designed for Heatcraft units. This OEM replacement part dehumidifies indoor environments by absorbing heat, causing moisture to condense. Ideal for undercounter reach-in or drawer-type fixtures, it draws air from the bottom and discharges at the top.

• Genuine OEM replacement part from Heatcraft
• Suitable for under counter reach-in fixtures
• Adjustable air deflector provides different air patterns

Product Highlights

The HEATCRAFT BBM11AG evaporator assembly is a reliable component for maintaining optimal conditions in refrigeration systems.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: BBM11AG
• Country of Origin: United States

Technical Specifications

• OEM Part Number: BBM11AG
• OEM: Heatcraft
• Product Category: Unit Coolers
• Product Type: OEM
• AllPoints OEM Part Number: HEABBM11AG
• Frequency: 60HZ
• Phase: 1PH
• Voltage: 115V
• Motor Type: Shaded Pole Motor
• No Of Fans: 1
• Motor Voltage: 115/1/60
• Total FLA: 0.8
• Coil Inlet OD: 0.375
• Suction Od: 0.5
• Drain OD: 0.5
• MFR #: BBM11AG
• BtuH @ 10 00b0 TD: 1,100
• BtuH @ 12 00b0 TD: 1,320
• BtuH @ 15 00b0 TD: 1,650
• CFM: 90
• Defrost: Air
• Depth: 5-1/2"
• Drain Conn.: 1/2" O.D.
• Inlet Conn.: 3/8" O.D.
• Suction Conn.: 3/4"
• Application: Medium Temp
• Coil Finish: Uncoated
• Connection Size Inlet (In.): 1/2
• Connection Suction (In.): 3/8
• Connection Type: ODS Suction x Flare Inlet
• Hertz: 60
• Horsepower: 1/150
• Motor FLA: 0.4
• Number of Motors: 1
• Coil Option: Standard
• Refrigerant: HFC
• Rating Point F: 10 00b0F TD
• Capacity BTUH: 1,100
• Product Brand: Bohn
• Product Style: Back Bar
• Product Classification: current
• Defrost Type: Air Defrost
