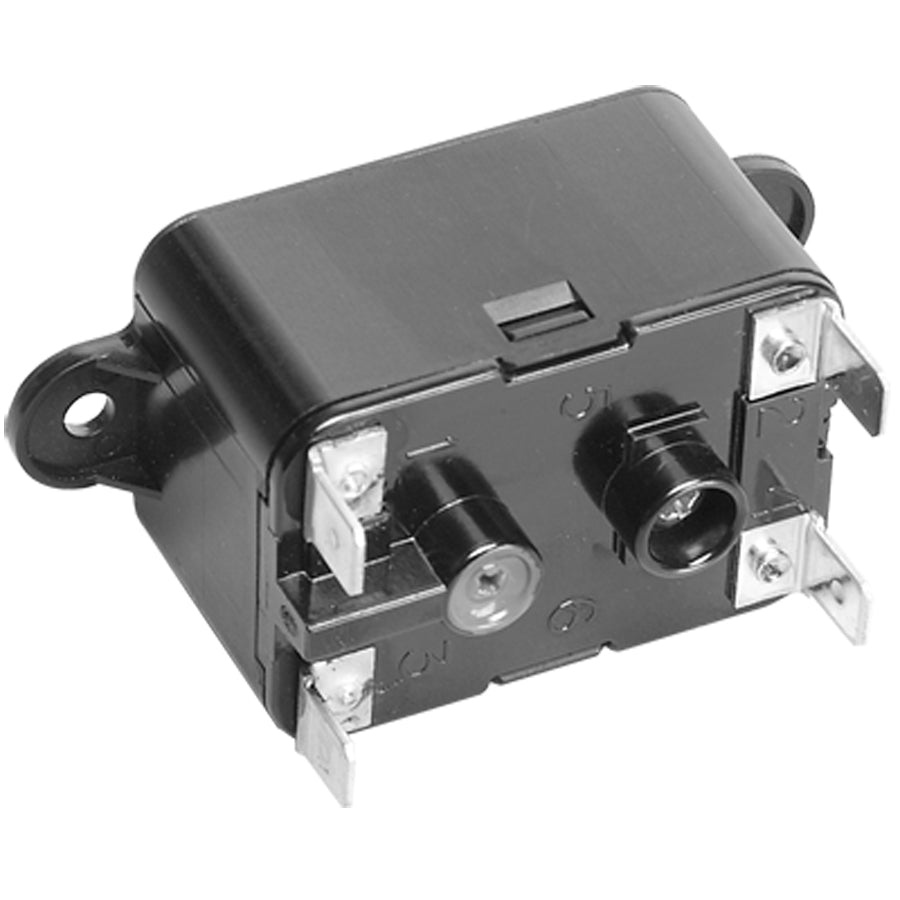

HEATCONTROLLER92360 92360 Spst 24V Relay

Product Description

The HEATCONTROLLER92360 92360 is a single-pole single-throw (SPST) relay rated for 24-volt control circuits. Relays of this type serve as electrically operated switches, using a low-voltage signal to open or close a higher-current load circuit. The 92360 is designed for use in HVAC control systems where a 24-volt thermostat or control board signal must switch a downstream load. Licensed HVAC technicians and controls specialists are the primary installers of this component.

This SPST relay is suited for residential and light commercial HVAC applications. Typical installation scenarios include integration into furnace, air handler, or rooftop unit control circuits where a single normally open or normally closed switching path is required. It is commonly used to switch loads such as blower motors, contactors, or zone control circuits under the command of a 24-volt control signal.

Key Features

• Single-pole single-throw (SPST) switching configuration
• 24-volt coil rating for direct compatibility with standard HVAC low-voltage control circuits
• Compact relay form factor suitable for panel or bracket mounting in control enclosures
• Designed for use in low-voltage switching applications common to HVAC controls

Compatibility

Designed as an OEM-style replacement relay for residential and light commercial HVAC control systems utilizing 24-volt low-voltage control circuits.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the unit before removing or installing any relay. Verify that the coil voltage and contact ratings of the replacement relay match the existing control circuit requirements before energizing the system. Wiring should comply with applicable NEC guidelines and local codes.

Technical Specifications

• Relay Type: SPST (Single-Pole Single-Throw)
• Coil Voltage: 24 volts

Standard Information

• Brand: HEATCONTROLLER92360
• Manufacturer Part Number: 92360
