Heat & Glo DVP-TRAP2 Rear Vent Horizontal Termination Kit

Product Description

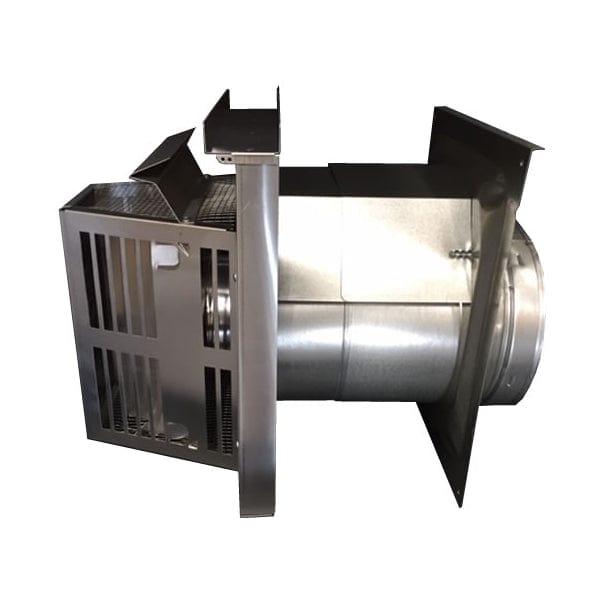

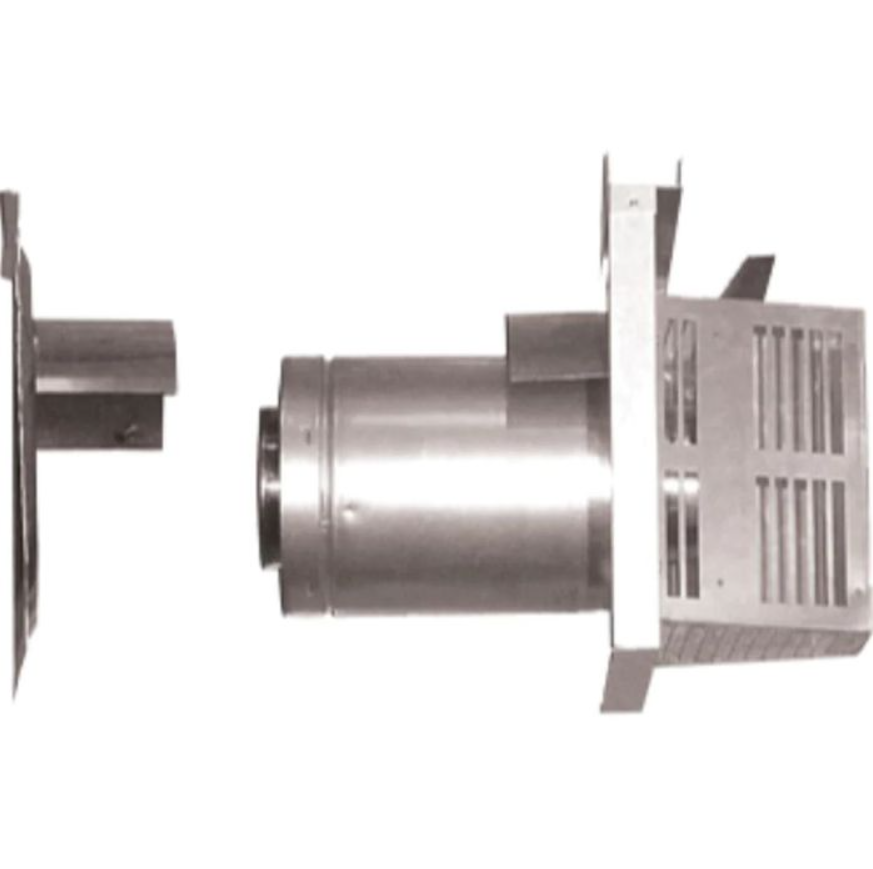

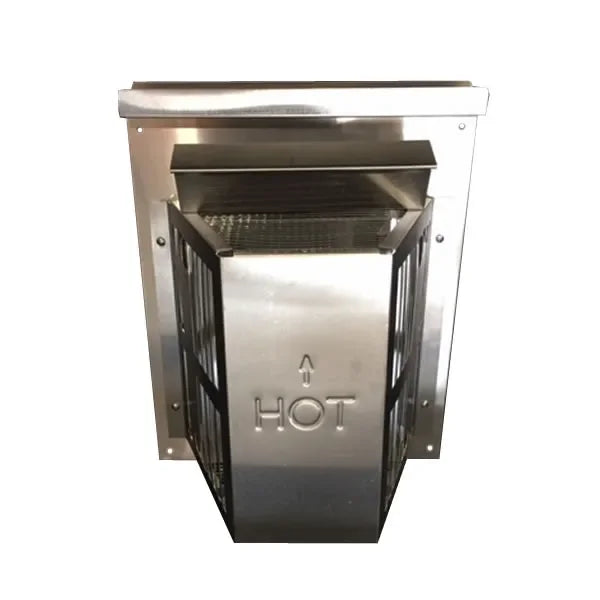

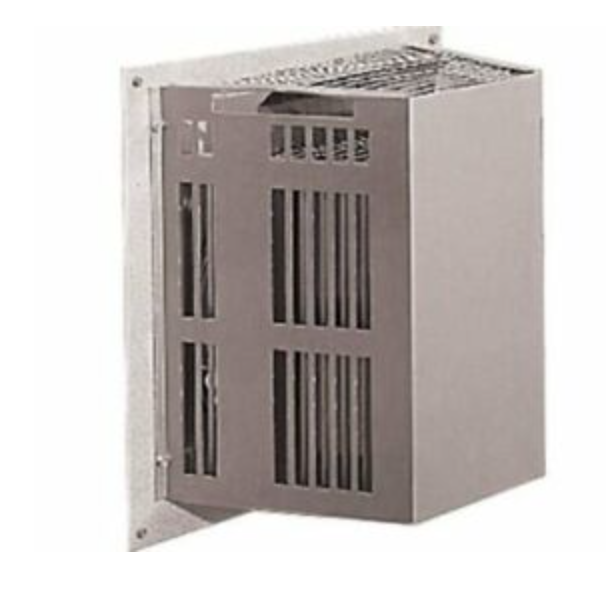

The HEAT & GLO DVP-TRAP2 Rear Vent Horizontal Termination Kit is designed for venting through an exterior wall. Compatible with Heat & Glo, Heatilator, Majestic, Vermont Castings, Monessen, Quadrafire, Harmon, and DutchWest brands. Commonly used with DVP and direct vent gas appliances. Includes a horizontal trapezoid termination with attached slip pipe and wall shield with heat shield.

• Commonly used with DVP
• Direct Vent Gas Appliance Only
• Used with Heat-N-Glo, Heatilator, Quadra-Fire, Monessen, Majestic

Product Highlights

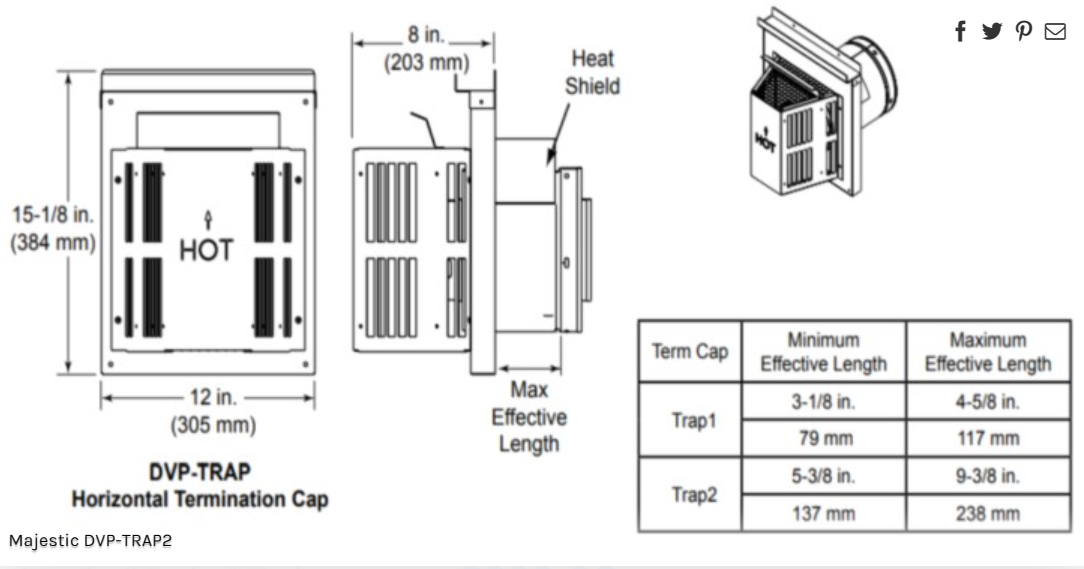

This kit extends from 5-3/8" to 9-3/8" and includes a telescoping flue, wall firestop, termination cap, and fastener pack.

Product Information

Standard Information

• Brand: HEAT & GLO
• Manufacturer Part Number: DVP-TRAP2

Technical Specifications

• Compatible Brands: Heat & Glo, Heatilator, Majestic, Vermont Castings, Monessen, Quadrafire, Harmon, DutchWest
• Application: Direct Vent Gas Appliance
• Pipe Size: 5" ID pipe - 8" OD pipe
• Effective Length: 5-3/8" – 9-3/8"
