Heat Controller Llc A-SVH24SB-1-CY 24K Mini Split

Product Description

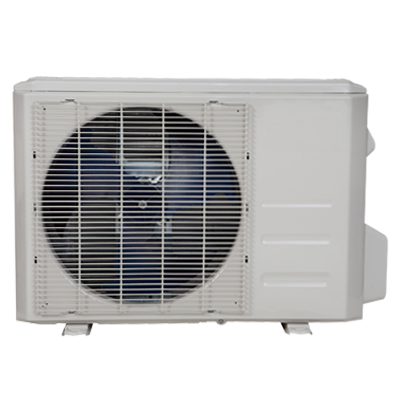

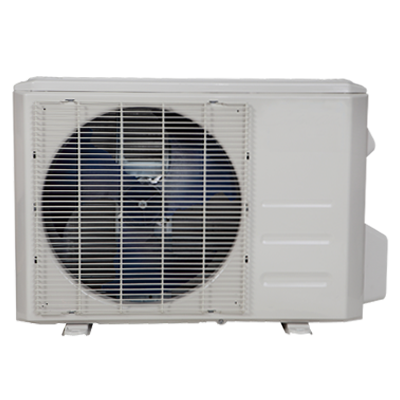

The HEAT CONTROLLER LLC A-SVH24SB-1-CY is a 24,000 BTU/h outdoor condensing unit designed for ductless mini split systems using R-410A refrigerant. This unit serves as the outdoor half of a ductless cooling and heating system, housing the compressor and condenser coil. It connects to a compatible indoor air handler via refrigerant line sets and low-voltage control wiring. HVAC technicians install this unit as part of a complete ductless system in residential or light commercial applications.

This outdoor condenser is suited for ductless mini split installations in residential homes, apartments, and small commercial spaces where ducted systems are impractical. The 24,000 BTU/h capacity covers medium to large zones, typically ranging from 1,000 to 1,500 square feet depending on local load conditions. It is paired with a compatible indoor evaporator unit to complete the refrigerant circuit and deliver conditioned air.

Key Features

• 24,000 BTU/h capacity suitable for medium to large single-zone applications
• Operates on R-410A refrigerant, a non-ozone-depleting refrigerant common in residential mini split systems
• Outdoor condensing unit designed for ductless split system installation
• Compatible with corresponding Century-brand indoor air handler units

Compatibility

Designed as an outdoor condensing unit for ductless mini split systems rated at 24,000 BTU/h using R-410A refrigerant. No specific compatible indoor unit model numbers were provided in the product data.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification for handling R-410A refrigerant. The outdoor unit must be mounted on a level pad or wall bracket with adequate clearance on all sides per manufacturer and local code requirements. Disconnect and lock out all power before making any electrical or refrigerant connections. Refrigerant line sets must be properly sized, leak-tested, and evacuated before charging the system.

Technical Specifications

• Cooling Capacity: 24,000 BTU/h
• Refrigerant Type: R-410A
• Unit Type: Outdoor Condensing Unit
• System Type: Ductless Mini Split

Standard Information

• Brand: HEAT CONTROLLER LLC
• Manufacturer Part Number: A-SVH24SB-1-CY
