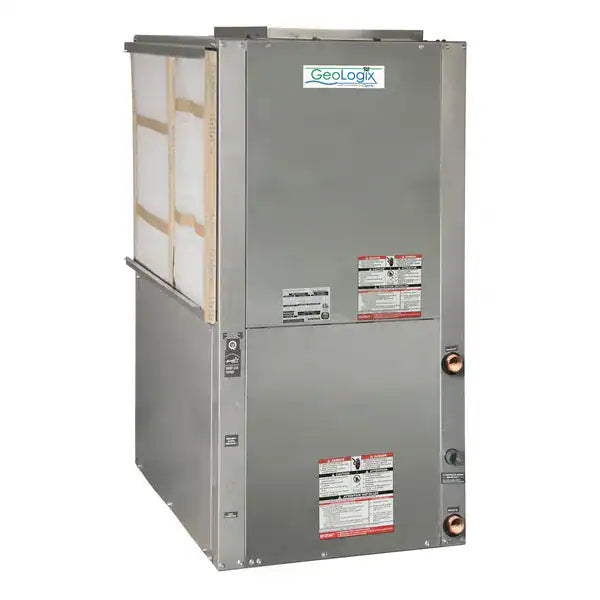

HEAT CONTROLLER HBV018A1C30CRT Water Source Heat Pump

Product Description

The HEAT CONTROLLER HBV018A1C30CRT is designed for heating and cooling with efficiency and functionality. This water source heat pump operates using R-410A refrigerant and features a rotary compressor. It is built for vertical installation, with air return on the right side and supply on the top. This model is ideal for water loop and boiler-tower applications.

• Equipped with a PSC blower motor with three speeds.
• Includes copper water coil and noncoated air coil.
• Protection against short cycling, low/high voltage, and coil freeze.

Product Highlights

The HBV018A1C30CRT delivers versatile heating and cooling for various applications in residential and commercial settings.

Product Information

Standard Information

• Brand: HEAT CONTROLLER
• Equipment Type: Water Source Heat Pump

Technical Specifications

• MPN: HBV018A1C30CRT
• Tonnage: 1.5
• Cooling Capacity: 18400 BTU/h
• Heating Capacity: 13900 BTU/h
• EER: 14.3
• COP: 3.4-5
• Input Voltage: 208-230 VAC
• Cycle/Hertz: 60 Hz
• Phase: Single
• Refrigerant: R-410A
• Blower Motor HP: 1/6 HP
• Blower Motor Speeds: 3
• CFM: 600
• Drain Connection Size: 3/4
• Maximum Fuse Size: 15
• Rated Current Amps (RCA): 8.4
• Rated Load Amps (RLA): 7.2
• Locked Rotor Amps (LRA): 33
• Minimum Circuit Ampacity (MCA): 10.2
• Return Air Filter Size (RA): 16 x 25 x 1
• Weight: 163 lbs
• Dimensions: 39 H x 21.5 W x 21.5 L
• Compressor Type: Rotary
