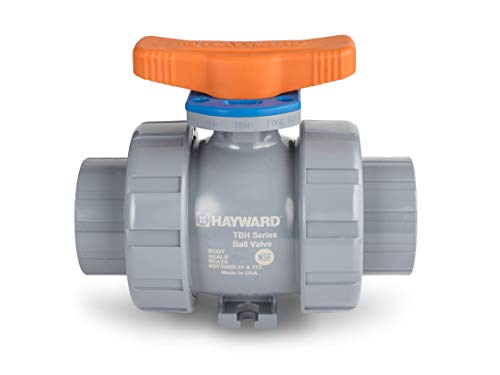

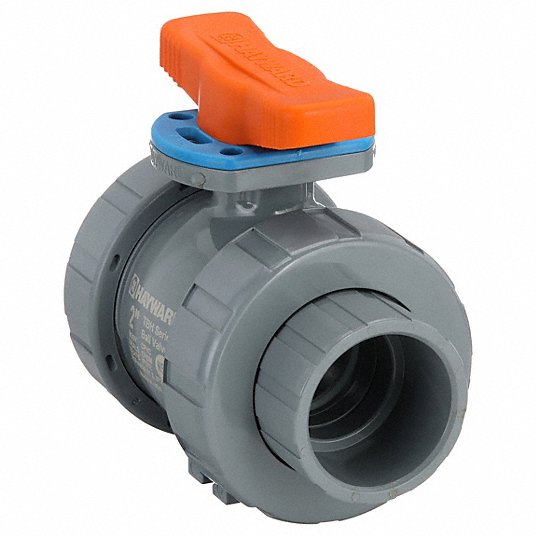

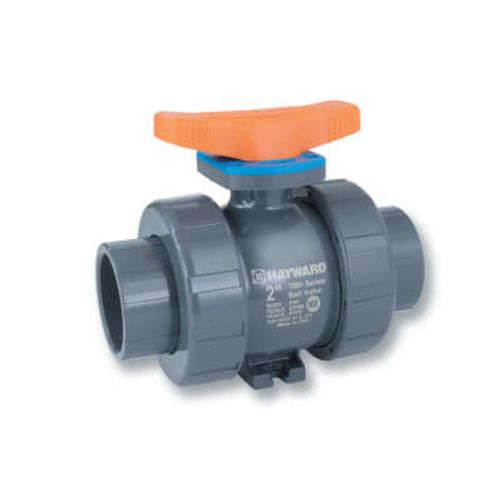

Hayward tbh2200aste0000 tbh series true union ball valve 2 inches socket/threaded end

Product Description

The Hayward TBH2200ASTE0000 Series TBH True Union Ball Valve features a socket/threaded end and EPDM seals. Designed for low maintenance, it incorporates System2™ Sealing Technology. An integral lock-out feature secures to the valve body, enhancing safety. It is actuator ready with an ISO 5211 pattern.

• Features System2™ Sealing Technology for enhanced sealing.
• Includes an integral lock-out feature for enhanced safety.
• Has an actuator-ready design with ISO 5211 pattern.

Product Highlights

This CPVC ball valve offers a reliable and safe solution for various applications, with easy maintenance and a design ready for actuation.

Product Information

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: TBH2200ASTE0000
• Country of Origin: United States

Technical Specifications

• Brand: Hayward
• Model / MPN: TBH2200ASTE0000
• Size: 2"
• Number of Items: 1.0
• Product Type: VALVE
• Manufacturer: Hayward Industries
• Product Group: BISS
• Features: EPDM O-Ring
• Port Type: Full Port
• Handle Style: T-Handle
• Connection Type: Socket x Socket, FNPT x FNPT
• Pressure Rating: 250 PSI @ 70 00b0F
• Type: Ball Valve
• Style: True Union
• Series: TBH Series
• Valve Type: Ball
• Valve Size: 2"
• Valve Connection Type: Socket and Threaded
• Material: CPVC
• Seal Type: Double O-Ring Stem
• Seal Material: EPDM
• Seat Material: PTFE
• Max Pressure: 250 PSI (17.2 bar) @ 70 00b0 F (21 00b0 C)
• Carton Qty: 1
• Ratings & Standards: NSF/ANSI 61
• End Style: Socket/Thread
• Nominal Size: 2 In
• For Media: Corrosive Chemicals; Water
• Body Material: CPVC
• Valve Construction: Three-Piece
• Valve Body Style: Straight
• Ball Port Style: Full
• Port: Nominal Valve Size
• Connection Size - Side 1: 2 in
• Connection Gender - Side 1: Female
• Connection Type - Side 1: True-Union Socket/True-Union NPT
• Connection Size - Side 2: 2 in
• Connection Gender - Side 2: Female
• Connection Type - Side 2: Socket
• Max. Pressure (CWP): 250 psi
• Handle: Locking Tee
• Handle Material: GFPP
• Ball Material: CPVC
• Stem Material: CPVC
• Stem Type: Blowout Resistant
• Vented Ball Valve: Non-Vented
• Media Temp. Range: 34 00b0F to 190 00b0F
• Special Features: Actuator Compatible
• Standards: ASTM D1784 Cell Class 23447; ASTM D4101 Cell Class 85580; NSF/ANSI 372
• Included Mounting: ISO 5211 Actuator Mounting Pad
• Overall Length: 11.51 in
• Handle Length: 5.17 in
• Handle Height: 4.4 in
• Ball Opening Size: 1.91 in
• Valve Series: TBH
• UNSPSC: 40141607
• Item Number: TBH2200ASTE0000
• Category: Thermoplastic Valves
• Chassis Description: Standard Body
• Class: TBH Series True Union Ball Valves
• Cv Coefficient: 150
• End Connection Type: Socket/Threaded
• End Connection: Socket/Threaded
• Flow Configuration: Bi-directional
• O-Ring Material: EPDM
• Operating Pressure [Max]: 16 bar 250 psi
• Operation Type: Manual
• Pipe Size: 2 in
• Sealing Material: EPDM
• Valve Material: CPVC
• Model Number: TBH2200ASTE0000
• Model: TBH2200ASTE0000
• MPN: TBH2200ASTE0000
• Product Brand: HAYWARD
• UPC: Not Applicable
