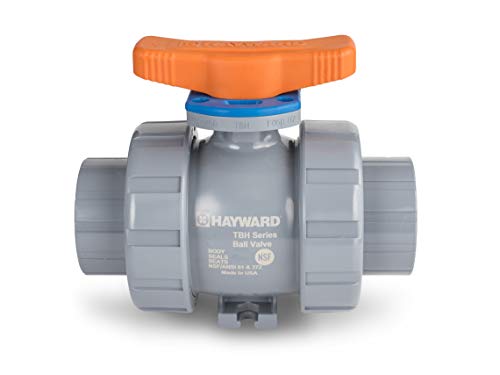

Hayward TBH2050ASTE0000 TBH Series True Union Ball Valve 1/2 inches Socket/Threaded End

Product Description

The Hayward TBH2050ASTE0000 Series True Union ball valve features a socket/threaded end, CPVC construction, and EPDM seals. Designed for low maintenance, it incorporates System2 Sealing Technology. This valve is actuator-ready with an ISO 5211 mounting pattern and includes an integral lock-out for enhanced safety.

• System2 Sealing Technology provides longer cycle life
• 250 PSI / 16 Bar, non-shock at 70°F / 23°C full pressure rating
• Lockout/Tagout mechanism secures directly to valve body for enhanced safety

Product Highlights

The Hayward TBH series ball valve offers enhanced sealing, safety, and ease of actuation for various applications.

Product Information

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: TBH2050ASTE0000
• Country of Origin: United States

Technical Specifications

• Brand: Hayward
• Material: CPVC
• End Connection: Socket/Threaded
• Seal Material: EPDM
• Size: 1/2"
• Product Type: VALVE
• Model / MPN: TBH2050ASTE0000
• Number of Items: 1.0
• Pkg Quantity: 1.0
• Port Type: Full Port
• Handle Style: T-Handle
• Connection Type: Socket x Socket, FNPT x FNPT
• Pressure Rating: 250 PSI @ 70 00b0F
• End Style: Socket/Thread
• Nominal Size: 1/2 In
• Series: TBH
• Housing Material: CPVC (Chlorinated Polyvinyl Chloride)
• WOG Rating: 250PSI
• Valve Operation: Manual
• Diameter: 1/2 in
• Category: Business & Industrial
• Operating Pressure [Max]: 250 psi
• Cv Coefficient: 8.0
• Flow Configuration: Bi-directional
• Valve Material: CPVC
• Seat Material: PTFE
• O-Ring Material: EPDM
• Handle Material: GFPP
