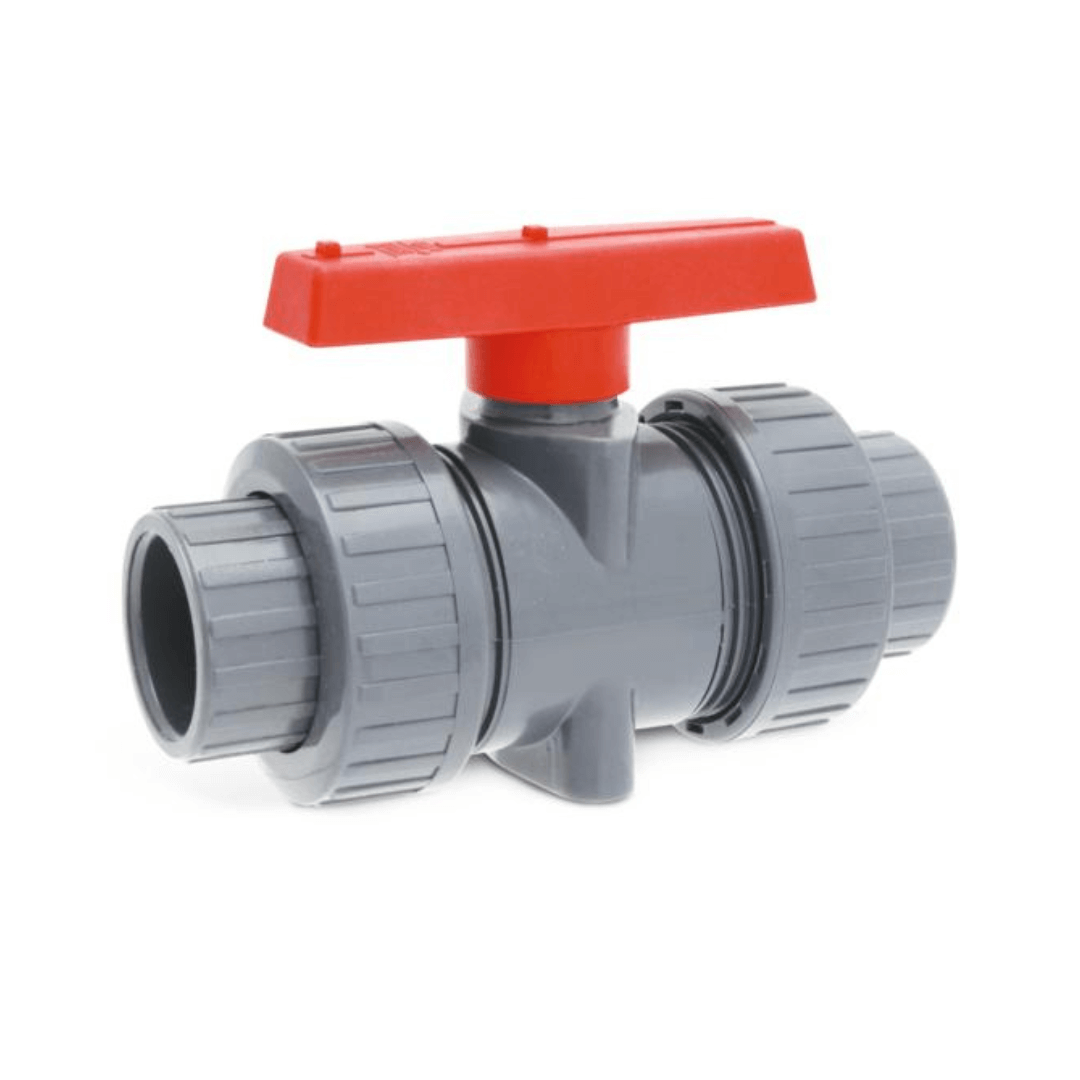

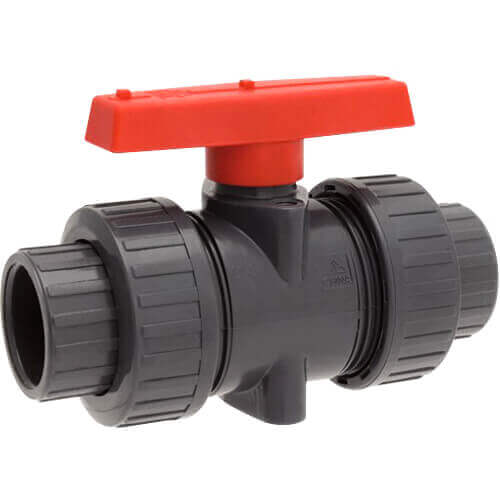

Hayward TBB2007CPEG True Union Ball Valve 3/4 inches (Socket x Threaded)

Product Description

The HAYWARD TBB2007CPEG true union ball valve features a CPVC body with EPDM O-rings and PTFE seats. Designed for easy maintenance and automation, this valve includes a double O-Ring stem seal and adjustable seat retainer. Suitable for various applications with its full port design, it ensures minimal flow restriction.

• Easy maintenance
• Easily automated
• Double O-Ring stem seal

Product Highlights

This 3/4" true union ball valve offers reliable performance with its robust CPVC construction and versatile connection options.

Product Information

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: TBB2007CPEG
• Country of Origin: United States

Technical Specifications

• Size: 3/4"
• Connection Type: Socket x FNPT
• Body Material: CPVC
• End Style: Socket/Thread
• Inlet to Outlet Length: 5.31 in
• Nominal Size: 3/4 In
• Orifice Size: 0.71 in
• Port Type: Full
• Pressure Rating: 225 psi
• Series: TBB
• Softgoods Material: EPDM
• Temperature Rating: 70 deg F
• Top to Inlet Center: 2.24 in
• Trim Material: PTFE Seat
• Brand: Hayward
• Model number: TBB2007CPEG
• Seal Material: EPDM O-Rings with PTFE Seats
• Valve Operation: Manual
• Material: CPVC (Chlorinated Polyvinyl Chloride) Body and Ball
• Country of Origin: United States
• Ball Material: CPVC
• Body Style: Inline True Union
• Ball Port Style: Full Port
• Valve Structure: 1 Piece
• Handle Type: T-Shaped
• Stem Type: O-Rings
• Seat Material: PTFE
• Max. Pressure: 225 PSI @ 70 Degrees F
• Stem Material: EPDM
• Temp. Range: 215 Degrees F
