Product Description

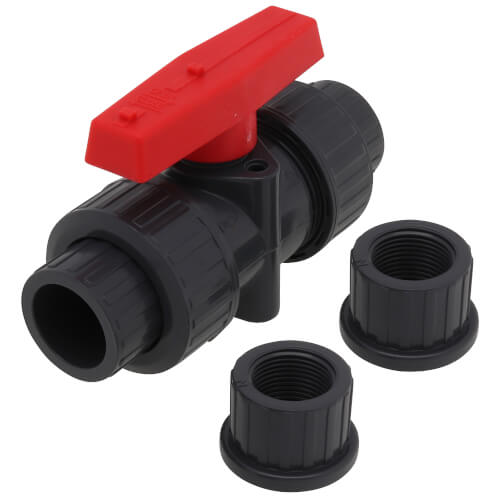

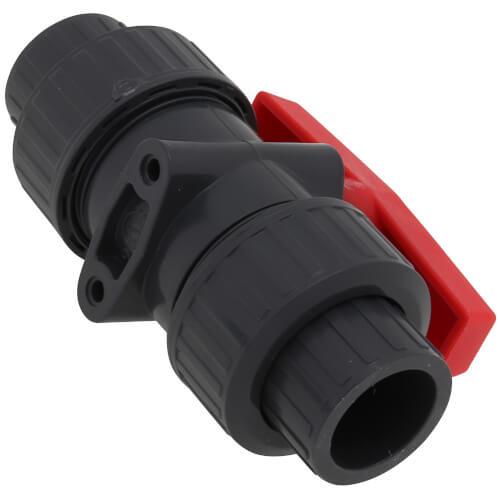

The Hayward TBB1005CPEG True Union Ball Valve is designed for durability and versatility in fluid control systems. Made with a 1/2-inch gray PVC body, this valve features EPDM O-rings and socket/threaded end connections. It ensures a reliable seal with its double O-ring stem seals.
- Pressure rating: 225 psi
- EPDM seals
- Double O-ring stem seals
Product Highlights
The TBB Series union ball valve allows easy removal without dismantling piping connections. It operates efficiently under a 225 psi pressure rating, with an easily automated design and adjustable seat retainer.
Product Information
Standard Information
-
Brand: Hayward
-
Model: TBB1005CPEG
Technical Specifications
-
Body Material: PVC
-
Color: Gray
-
End Style: Socket/Thread
-
Inlet to Outlet Length: 4.49 inches
-
Nominal Size: 1/2 inch
-
Orifice Size: 0.51 inch
-
Port Type: Full
-
Pressure Rating: 225 psi
-
Series: TBB
-
Softgoods Material: EPDM
-
Temperature Rating: 70 degrees Fahrenheit
-
Top to Inlet Center: 1.85 inches
-
Trim Material: PTFE Seat
-
Manufacturer: Hayward Industrial Products
