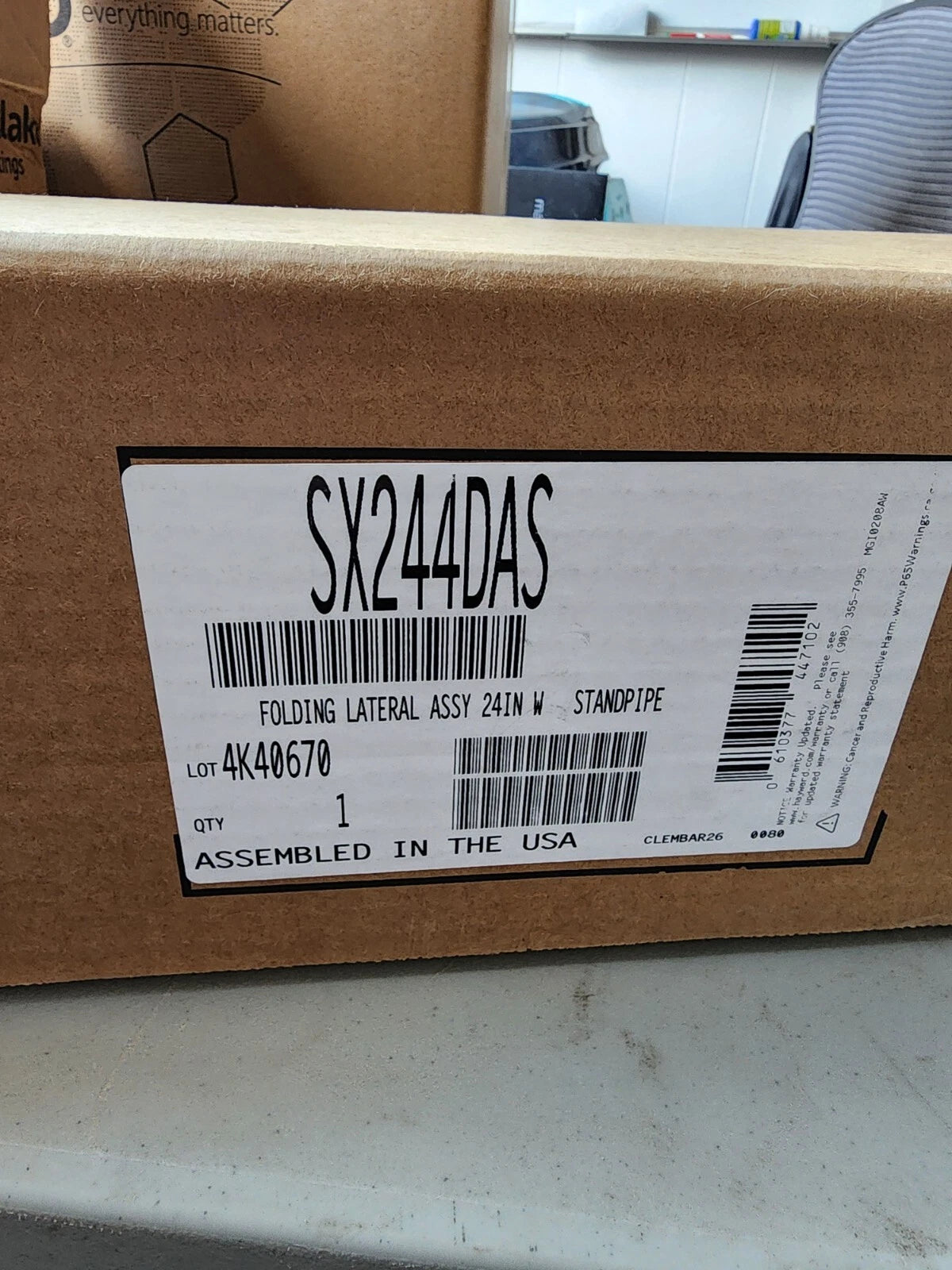

Hayward SX244DAS HAYWARD SX244DAS Sand Filter Lateral Assembly

Product Description

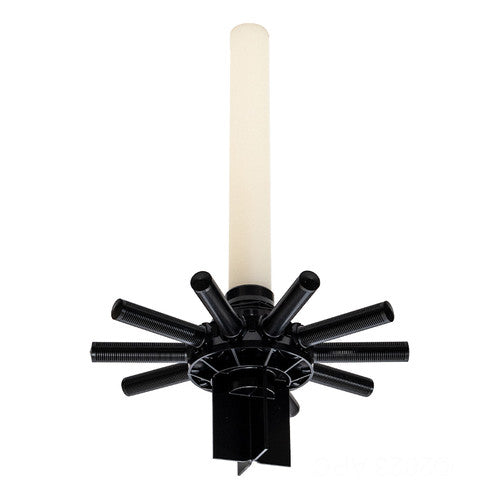

The Hayward SX244DAS is a twenty-four inch sand filter lateral assembly specifically designed for in-ground pools. This unit is compatible with Hayward ProSeries sand filters. It features a folding lateral design with a center pipe for easy installation and optimal water flow.

• Includes a durable flange clamp for 360-degree rotation.
• Equipped with an integral top diffuser for even water distribution.
• Constructed from corrosion-proof polymeric material for longevity.

Product Highlights

This assembly also offers a sight glass for easy monitoring of backwash cycles, ensuring efficient operation. Additionally, there is a large sand/water drain for servicing.

Product Information

Standard Information

• Brand: Hayward
• Model: SX244DAS

Technical Specifications

• Product Dimensions: forty-two inches x twenty-four point five inches x twenty-four point five inches
• Weight: forty-six pounds
• Shipping Dimensions: forty-four point five inches x twenty-four point five inches x twenty-four point five inches
• Maximum Working Pressure: fifty PSI
• Backwash Flow Rate: sixty-two GPM
• Effective Filtration Area: three point fourteen square feet
• Sand Capacity: three hundred pounds
• Parts Warranty: three years
