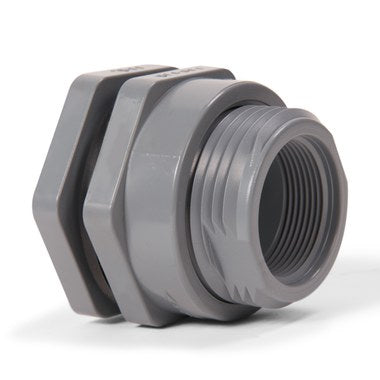

Hayward BFA2010CES 1 CPVC Bulkhead Fitting w/EPDM Gasket Socket x Thread

Product Description

The Hayward BFA2010CES is a one-inch CPVC bulkhead fitting designed for easy installation in various applications. This fitting features a socket x threaded end style, and incorporates an EPDM standard flange gasket. It is suitable for high-pressure environments, rated at 150 psi, and operates in temperatures up to 70 degrees Fahrenheit.

• Extra-long design for thick tank walls
• Left-handed threads for secure fitting
• Hex body allows for one-person installation

Product Highlights

This bulkhead fitting is suitable for water and wastewater treatment, chemical processing, and more.

Product Information

Standard Information

• Manufacturer: Hayward Industrial Products
• Series: BFA

Technical Specifications

• Material: CPVC
• Nominal Size: 1 inch
• Length: 3.88 inches
• Hole Size: 1.88 inches
• Hex Size: 2.56 inches
• Thickness: 2.08 inches
• Pressure Rating: 150 psi
• Temperature Rating: 70 degrees Fahrenheit
• End Style: Socket x Thread
• Domestic/Import: Domestic
