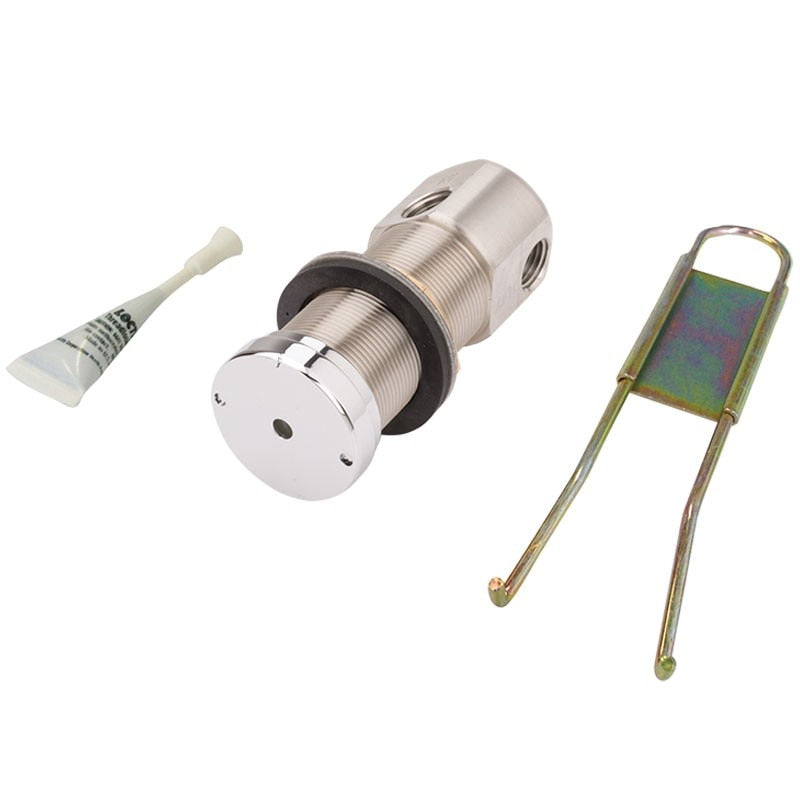

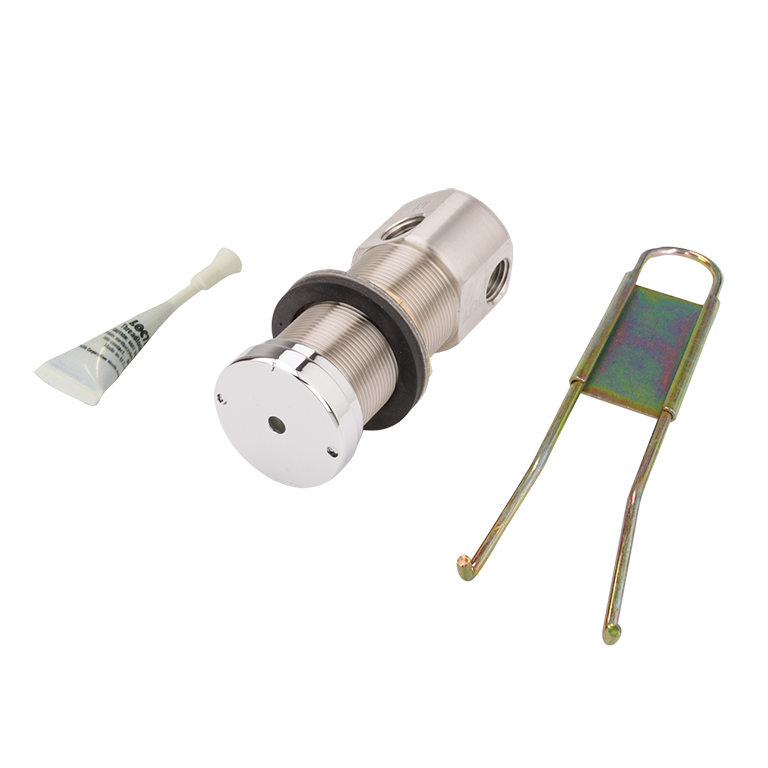

Haws 5874PB Fountain Valve with Push Button

Product Description

The Haws 5874PB is a push-button fountain valve made from lead-free stainless steel. This valve offers a front-accessible design, allowing for easy stream adjustment and maintenance. It comes equipped with a replaceable pressure regulation control cartridge and a PBA7 recessed style push button assembly, ensuring efficient operation with Haws fountains fitted with a recessed valve mount.

• Push-button activated valve
• Front accessible for stream adjustment and servicing
• Includes PBA7 recessed style push button assembly

Product Highlights

This valve assembly automatically regulates pressure to maintain functionality across varying water pressures.

Product Information

Standard Information

• Manufacturer: Haws
• Material: Stainless Steel

Technical Specifications

• Operating Pressure Range: 30 to 90 psi (2.1 to 6.2 bar)
• Connection: 1/4 in NPT Inlet and Outlet
• UPC Code: 611970334684
• Weight: 2
• Dimensions: Height: 3-11/16 inches, Diameter: 1-1/2 inches
