Haws 2000HS Rivive Hydration Station <1 Amp (Recessed)

Product Description

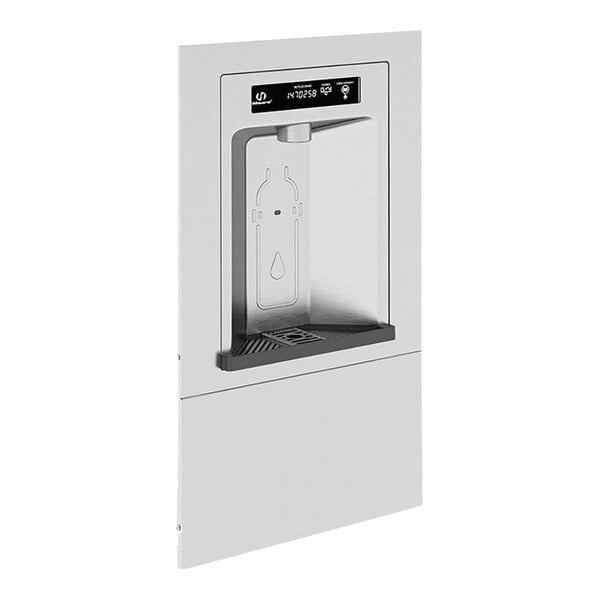

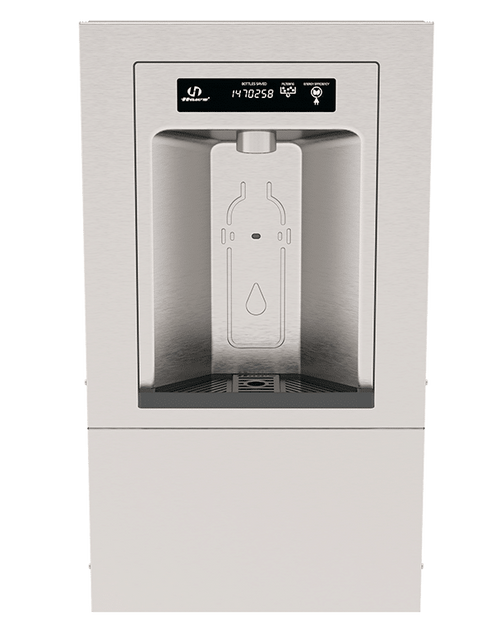

HAWS 2000HS is a recessed, wall-mounted RIVIVE Hydration Station designed for touch-free bottle filling. The unit is constructed of heavy-duty 16-gauge Type 304 stainless steel with a satin finish and includes a heavy-gauge galvanized mounting frame for in-wall installation. It provides a laminar 1.2 gpm (4.2 L/min) flow, a motion-activated sensor with a 20-second timeout, a 24-hour auto-purge, and a field-configurable 3,000-gallon carbon block filtration system with replacement indicator.

• Touch-free motion-activated electric sensor with 20-second timeout and LED bottle counter
• Field-configurable filtration: 3,000-gallon carbon block filter with replacement indicator and front access for service
• 1.2 gpm laminar flow, 24-hour auto-purge, ADA-compliant recessed installation with heavy-gauge galvanized mounting frame

Product Highlights

Recessed, touch-free bottle filler with 1.2 gpm laminar flow and 3,000-gallon carbon block filter.

Product Information

Standard Information

• Brand: HAWS
• Manufacturer Part Number: 2000HS
• Country of Origin: United States of America

Technical Specifications

• Brand: HAWS
• Model: 2000HS
• Material: 16-gauge Type 304 Stainless Steel
• Finish: Satin

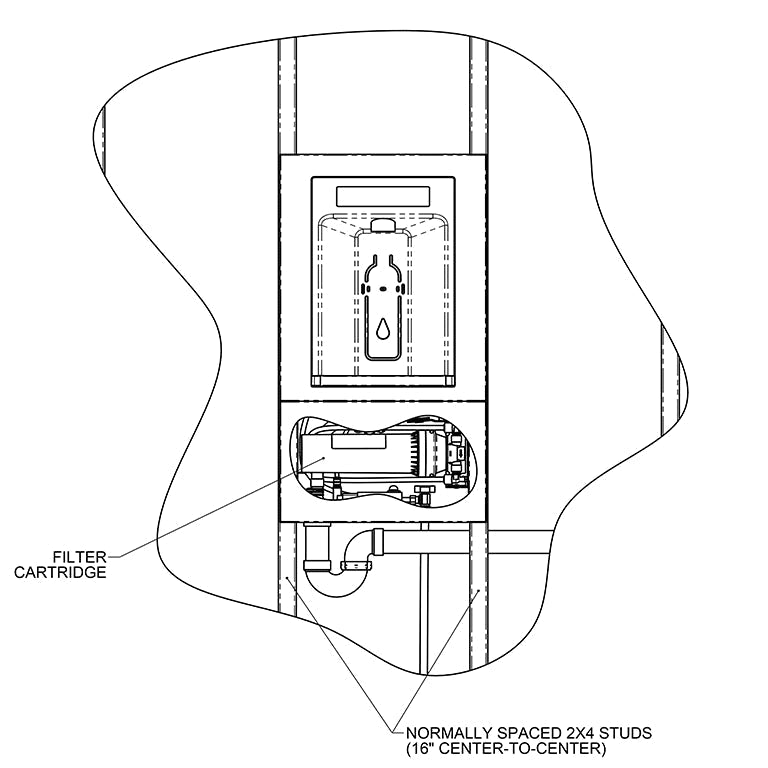

• Mounting Type: Recessed wall-mounted (in-wall frame included)
• Mounting Frame: Heavy-gauge galvanized steel
• Dimensions: 1" x 17-1/4" x 30-3/4" (depth x width x height) — expressed in inches
• ADA Compliance: Yes (wheelchair accessible)
• Fill Rate: 1.2 gpm (4.2 L/min)
• Flow Characteristics: Laminar flow to prevent splashing
• Power: <1 Amp (electrical draw under 1 A; typically supplied by low-voltage or 120VAC transformer — confirm installation electrical requirements)
• Sensor: Motion-activated electric sensor; touch-free; 20-second timeout
• Auto Purge: Auto-purge after 24 hours of non-use

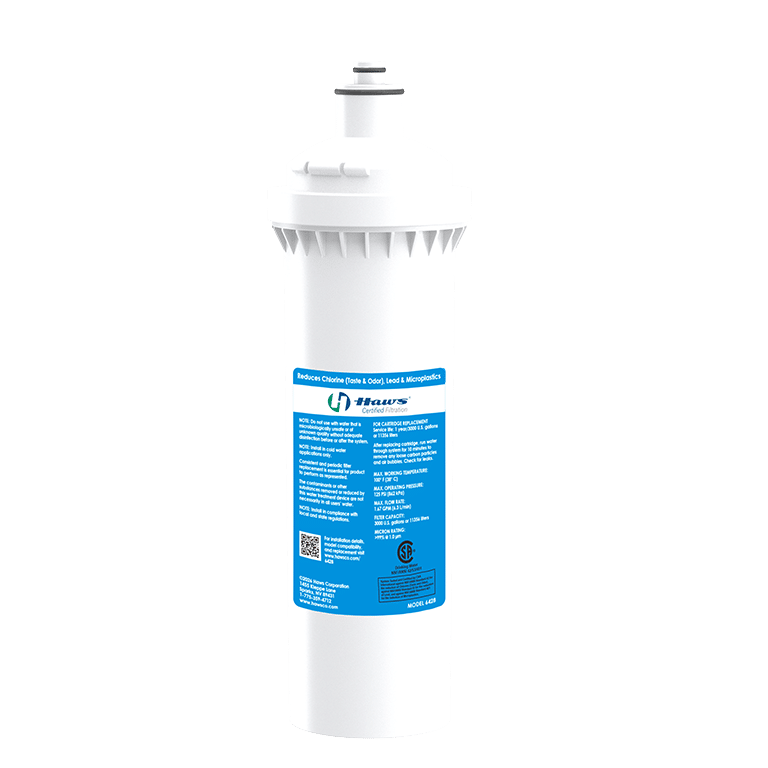

• Filtration: Field-configurable; 3,000-gallon (11,356 L) carbon block filter (model 6428) with replacement indicator
• Filter Control: Filter replacement indicator; front-access filter change
• Bottle Opening Clearance: 12" LED-lit bottle opening (height clearance for bottles)
• Bottle Counter: LED bottle counter
• Hygienic Features: 24-hour purge of water line; sensor-operated filler; 100% lead-free waterways
• Included Components: Bottle filler, mounting frame, interchangeable filter and strainer
• Intended Use: Indoor use only
• Certifications: CSA Certified; NSF/ANSI/CAN 61 Section 9; NSF/ANSI/CAN 372; CSA Standard B483.1; California Health and Safety Code 116875/116876
