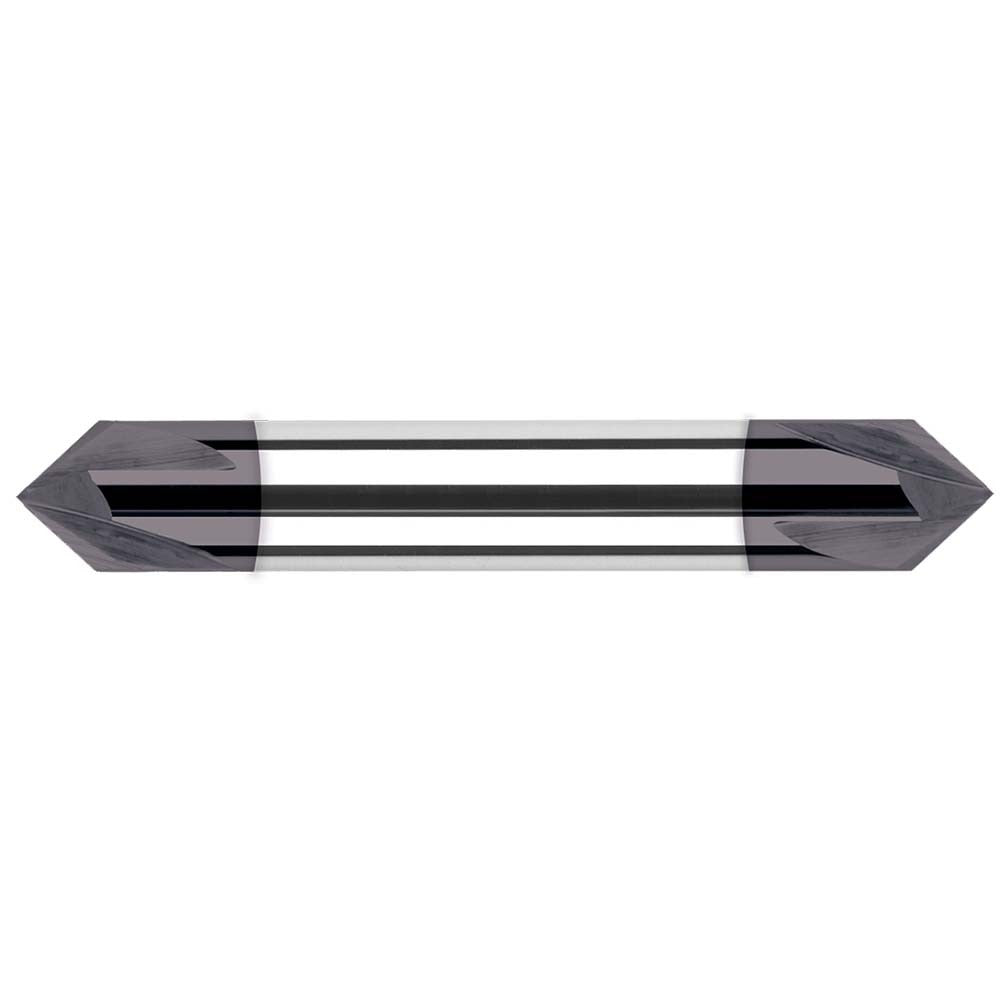

Harvey Tool 998345-C3 Chamfer Mill 3/8 in Solid Carbide

Product Description

The HARVEY TOOL 998345-C3 is a solid carbide chamfer mill designed for deburring, chamfering, and edge-breaking operations on a wide range of workpiece materials. Built with a 3/8-inch cutter head diameter and a 90-degree included angle, this double-end tool removes material cleanly and consistently. The AlTiN coating improves heat resistance and extends tool life in demanding cutting environments. With 2 flutes and right-hand cutting direction, it delivers efficient chip evacuation and smooth surface finishes on ferrous and non-ferrous metals alike. This tool is sized for use in CNC machining centers and manual milling machines.

The 998345-C3 is suited for production and job-shop environments where reliable chamfering is required on metal components. The 3/8-inch shank diameter makes it compatible with standard collet chucks and end-mill holders found in most machining setups. Its 2-1/2-inch overall length gives adequate reach for the majority of general chamfering applications without sacrificing rigidity. Machinists and CNC operators working with steel, stainless, aluminum, and similar workpiece materials will find this tool a dependable option for consistent edge preparation.

Key Features

• Solid carbide construction for rigidity and wear resistance
• AlTiN coating for improved heat resistance and extended tool life
• 90-degree included angle for standard chamfering and deburring
• Double-end design maximizes usable tool life
• Right-hand cutting direction compatible with standard spindle rotation
• 2-flute geometry promotes efficient chip evacuation

Compatibility

Designed as a direct-fit replacement for standard 3/8-inch shank chamfer mill applications in CNC machining centers and manual mills using collet chucks or end-mill holders sized for 3/8-inch shanks.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is powered down or in a safe locked-out state before inserting or removing the tool. Seat the shank fully into the collet or holder to the recommended grip length before torquing the retention mechanism. Verify runout with a dial indicator before beginning production cuts to avoid premature wear or chipping.
