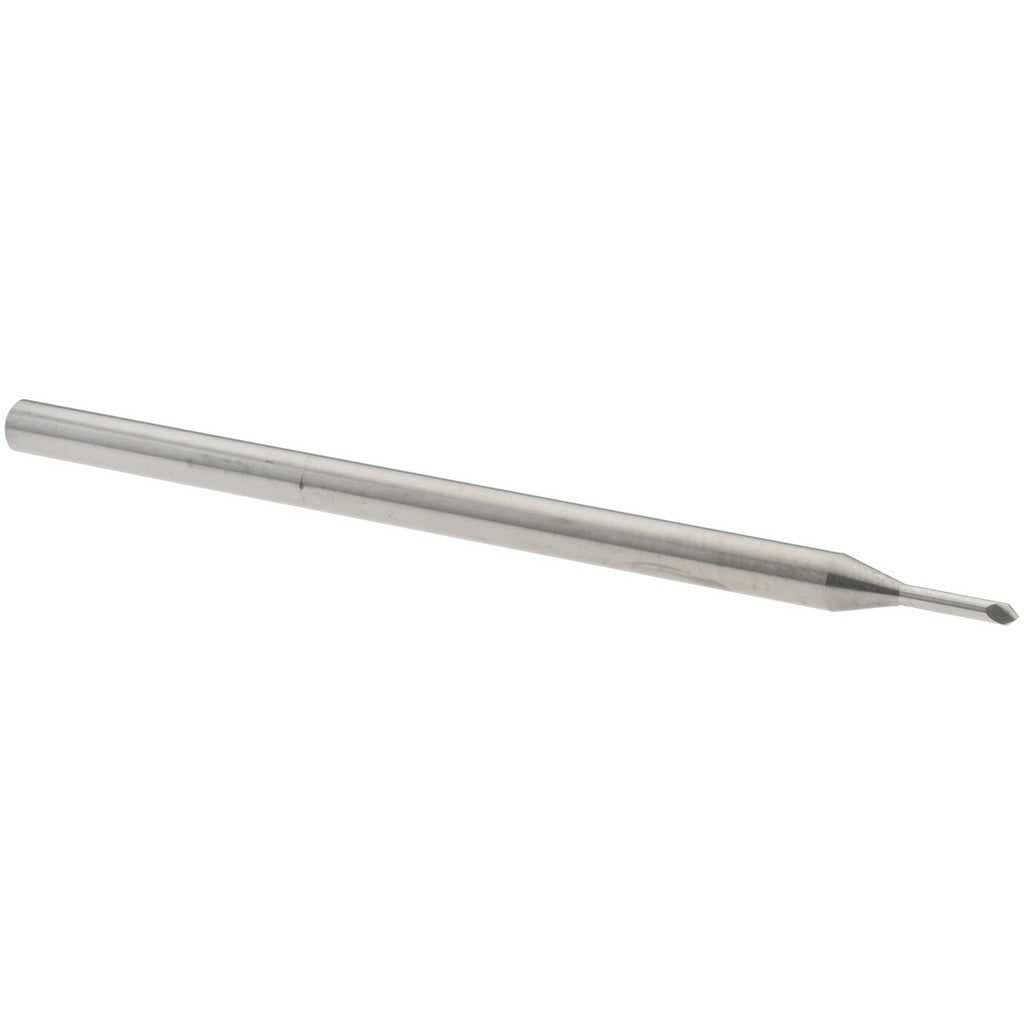

Harvey Tool 996845 Chamfer Mill 3/64 in 2 Flute Solid Carbide

Product Description

The HARVEY TOOL 996845 is a solid carbide chamfer mill designed for precision chamfering and deburring operations on CNC machining centers and manual mills. With a 3/64-inch cutter head diameter and a 90-degree included angle, it produces consistent, accurate chamfers on ferrous and non-ferrous materials. The 2-flute configuration provides efficient chip evacuation in tight geometries, and the bright/uncoated finish makes it well suited for non-ferrous metals and plastics where coating buildup is a concern. Machinists and tool-and-die professionals typically deploy this tool where small-diameter precision work demands tight tolerances and repeatable edge prep.

This chamfer mill is intended for small-feature chamfering applications in precision machining environments, including aerospace component work, mold and die shops, and general metalworking operations. The 1/8-inch shank diameter fits standard collets and tool holders common in both production and prototype shops. Its right-hand cutting direction is compatible with conventional CNC spindle setups. The short length of cut at 0.024 inches makes it purpose-built for light-duty edge breaking rather than deep chamfer passes.

Key Features

• 3/64-inch cutter head diameter for small-feature precision chamfering
• 90-degree included angle for standard chamfer geometry
• 2-flute design promotes chip clearance in confined cutting zones
• Solid carbide construction provides rigidity and wear resistance
• Bright/uncoated finish is well suited for non-ferrous metals and plastics
• Right-hand cutting direction for use with standard CNC spindle rotation

Compatibility

Designed for use with 1/8-inch collets and tool holders in CNC machining centers and manual mills requiring small-diameter chamfer mill tooling.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's tool-holding specifications. Ensure the spindle is fully stopped and the machine is powered down before loading or removing the tool. Secure the 1/8-inch shank fully within the collet or tool holder to the manufacturer-specified engagement depth to prevent runout. Verify spindle direction is set to right-hand rotation before initiating a cut.
