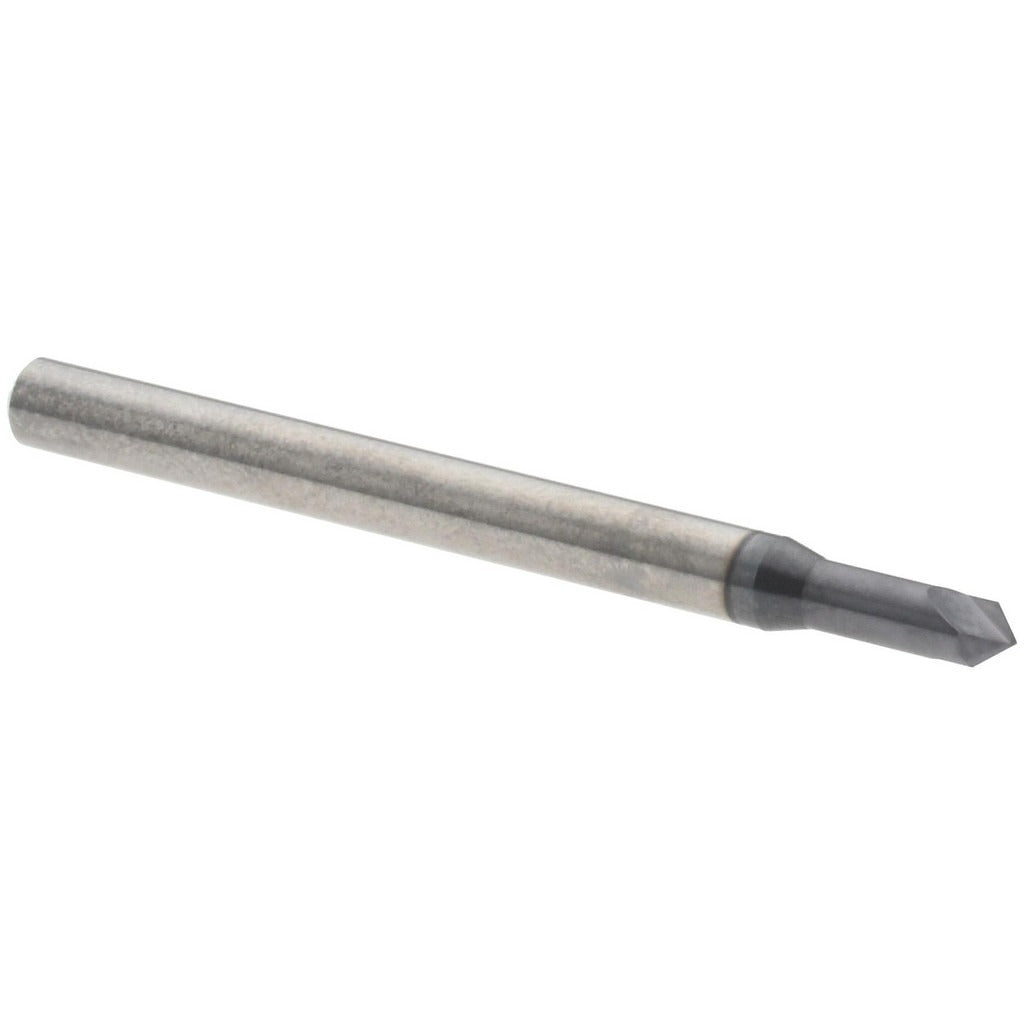

Harvey Tool 995345-C3 Chamfer Mill 3/32 in 2 Flute Carbide

Product Description

The HARVEY TOOL 995345-C3 is a solid carbide chamfer mill designed for precise chamfering, deburring, and edge-breaking operations on metal and hard materials. With a 3/32-inch cutter head diameter and a 90-degree included angle, this single-end mill delivers clean, consistent chamfers in tight spaces where larger tooling cannot reach. The AlTiN coating improves heat resistance and extends tool life during high-speed cutting. At 1.5 inches overall length with a 1/8-inch shank diameter and a 0.0470-inch length of cut, it is sized for light-duty precision work. Machinists and CNC operators install this tool on standard milling machines and machining centers.

This chamfer mill is suited for use on CNC machining centers and manual mills handling small-diameter chamfering tasks on ferrous and non-ferrous workpieces. The right-hand cutting direction and 2-flute geometry support chip evacuation in confined bores and near-edge features. Its compact profile makes it well-suited for intricate part geometries where clearance is limited. Typical applications include edge preparation before threading, countersink work, and part deburring in production and job-shop environments.

Key Features

• 3/32-inch cutter head diameter for tight-clearance chamfering work
• 90-degree included angle for standard chamfer geometry
• AlTiN coating for improved heat resistance and extended tool life
• Solid carbide construction for rigidity and wear resistance
• 2-flute, right-hand cutting design for efficient chip evacuation
• 1/8-inch shank diameter compatible with standard collet systems

Compatibility

Designed as an OEM-style chamfer mill compatible with standard 1/8-inch collet holders and tool holders used on CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Power down and lock out the spindle before mounting or removing the tool. Seat the shank fully and securely in the collet or tool holder to the recommended engagement depth before tightening. Verify runout with a dial indicator before initiating a cut to ensure concentricity and tool integrity.
