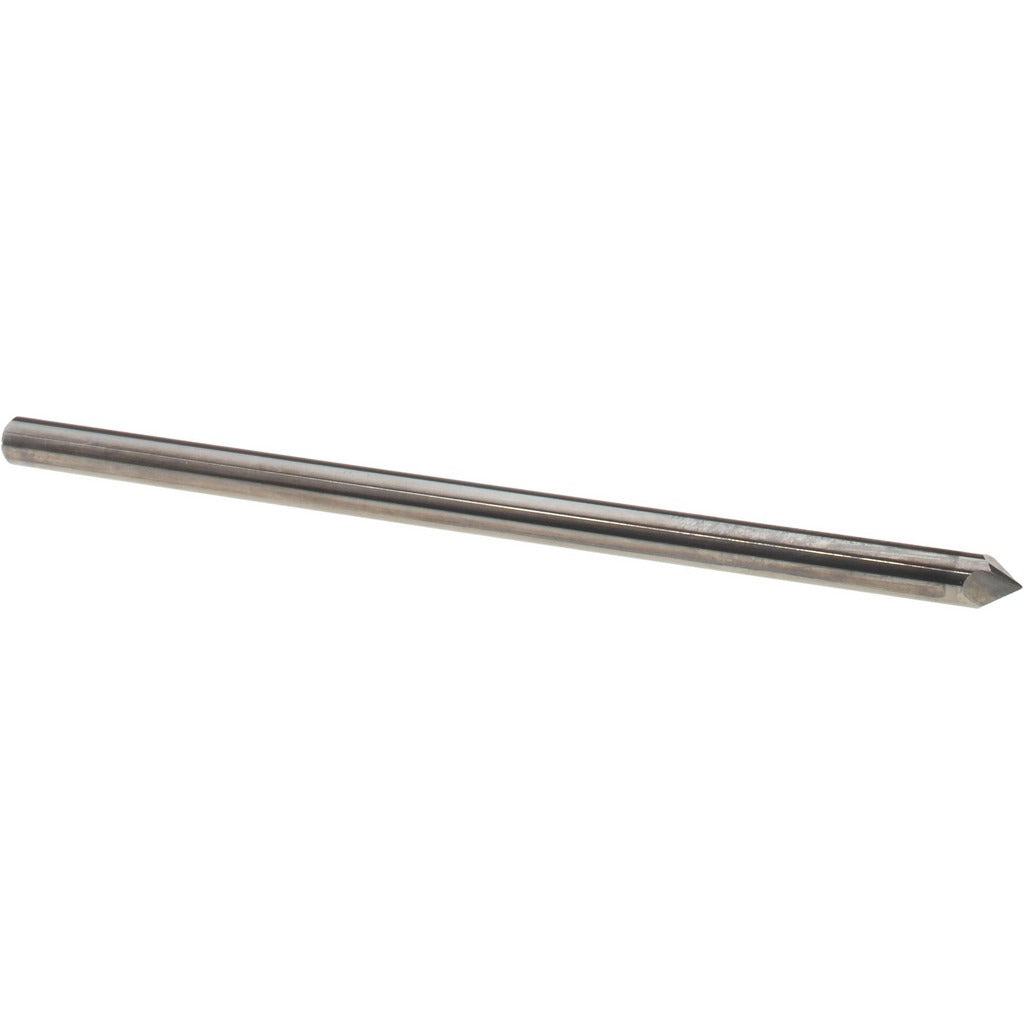

Harvey Tool 986945 Chamfer Mill 3/16 in 2 Flute Solid Carbide

Product Description

The HARVEY TOOL 986945 is a solid carbide chamfer mill designed for precise chamfering, deburring, and edge-breaking operations on ferrous and non-ferrous materials. With a 3/16 inch cutter head diameter, a 90-degree included angle, and a bright uncoated finish, this single-end tool delivers accurate, clean chamfers in tight-tolerance machining environments. At 4 inches overall length with a matching 3/16 inch shank diameter, it fits standard collet toolholding systems found on CNC machining centers and manual mills. Machinists and tool and die professionals rely on this geometry for consistent edge preparation without the need for secondary hand deburring.

This chamfer mill is suited for production and job-shop environments where repeatable chamfer geometry is required. The right-hand cutting direction and 2-flute configuration make it appropriate for general-purpose chamfering on aluminum, steel, and similar workpiece materials. With a 0.094 inch length of cut and a compact diameter, it is well suited for small-feature chamfering, countersinking light-duty applications, and spot-facing in confined part geometries. A licensed machinist or CNC operator would typically deploy this tool in operations requiring a controlled 45-degree edge on through-holes, pockets, or part perimeters.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cutting conditions
• 90-degree included angle for standard 45-degree chamfer geometry on each side
• 2-flute, single-end design optimized for general chamfering and deburring
• Bright uncoated finish suitable for use with or without cutting fluid on a wide range of materials
• Right-hand cutting direction compatible with standard CNC and manual milling spindles
• Compact 3/16 inch diameter for small-feature and tight-clearance chamfering applications

Compatibility

Designed as a standard chamfer mill for use in 3/16 inch collet or end mill holders on CNC machining centers and conventional milling machines with right-hand spindle rotation.

Installation Notes

This tool is installed by a machinist or CNC operator using a precision collet or end mill holder rated for the 3/16 inch shank diameter. Ensure the machine spindle is fully stopped and the tool holder is clean and free of debris before seating the tool. Confirm runout with a dial indicator before beginning production cuts. Follow the machine tool manufacturer guidelines and applicable shop safety procedures when setting tool length offsets and programming feed and speed parameters.
