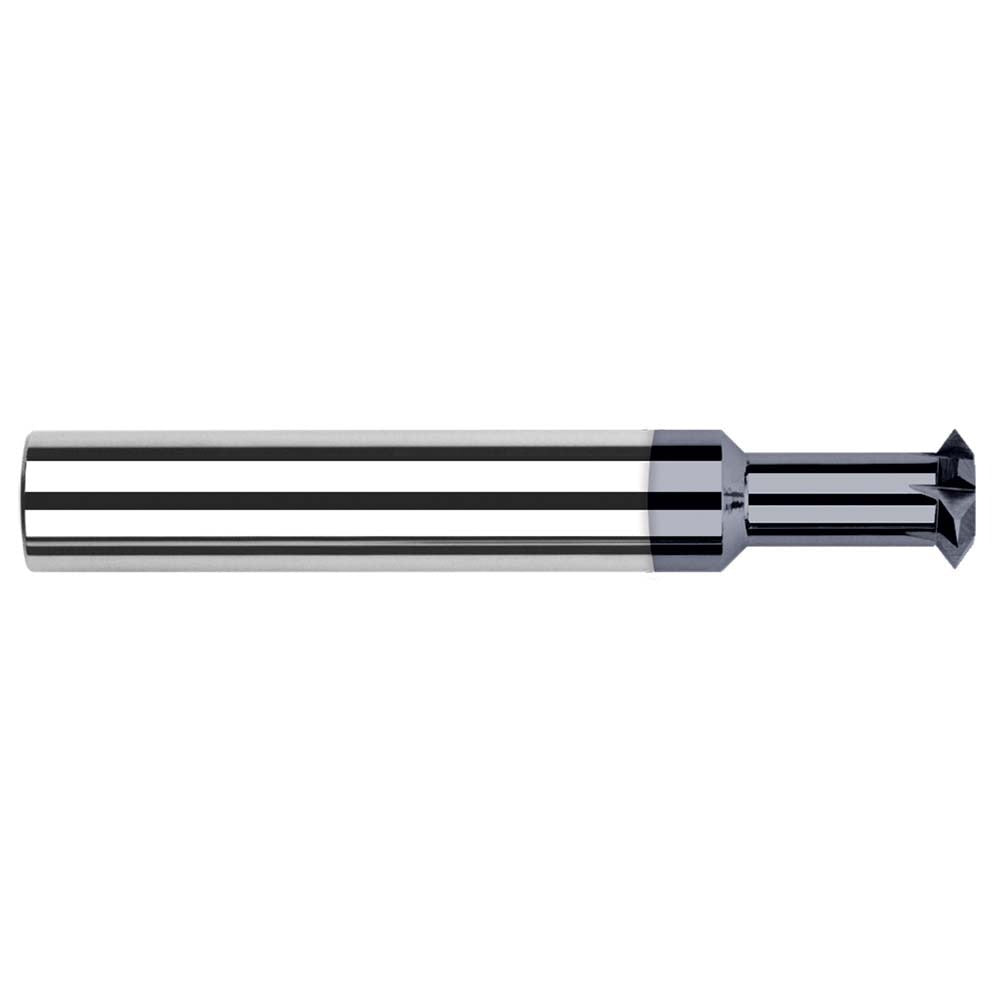

Harvey Tool 917024-C3 Double Angle Milling Cutter 45 Deg

Product Description

The HARVEY TOOL 917024-C3 is a double angle milling cutter designed for precision grooving, chamfering, and dovetail-adjacent milling operations in metalworking applications. Built from solid carbide and coated with AlTiN (aluminum titanium nitride), it handles high-heat cutting environments and maintains edge integrity in ferrous and hardened materials. The cutter features a 45-degree included angle, a 3/8-inch cut diameter, and a 0.052-inch cutting width, making it well suited for tight, precise angle slots. Six cutting teeth deliver a balance of surface finish quality and chip evacuation efficiency. A licensed machinist or toolroom technician is the typical installer.

This cutter is used in CNC machining centers and manual milling machines where controlled-depth angle cuts are required. Its 3/8-inch shank diameter accommodates standard collet and end mill holders. The 1/4-inch neck diameter and 1-inch neck length provide clearance for workpiece features during deep or recessed slot operations. The 2-1/2-inch overall length suits typical vertical and horizontal milling setups in tool-and-die, aerospace component, and precision parts manufacturing environments.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cuts
• AlTiN coating improves heat resistance and extends tool life in ferrous materials
• 45-degree included angle for precise chamfer and angle slot work
• 0.052-inch cutting width enables narrow, controlled groove profiles
• 6-tooth configuration balances finish quality with chip clearance
• 1/4-inch neck diameter with 1-inch neck length for workpiece clearance in recessed features

Compatibility

Designed as an OEM-style solid carbide double angle milling cutter compatible with standard 3/8-inch collet holders and end mill tool holders used in CNC and manual milling machines.

Installation Notes

Installation is performed by a qualified machinist or CNC toolroom technician. Ensure the machine spindle is fully powered down and locked out before changing tooling. Seat the 3/8-inch shank fully into the collet or tool holder and torque the retention mechanism according to the holder manufacturer's specifications. Verify runout with a dial indicator before initiating the cut, as excessive runout will accelerate edge wear on a fine-geometry cutter of this type.
