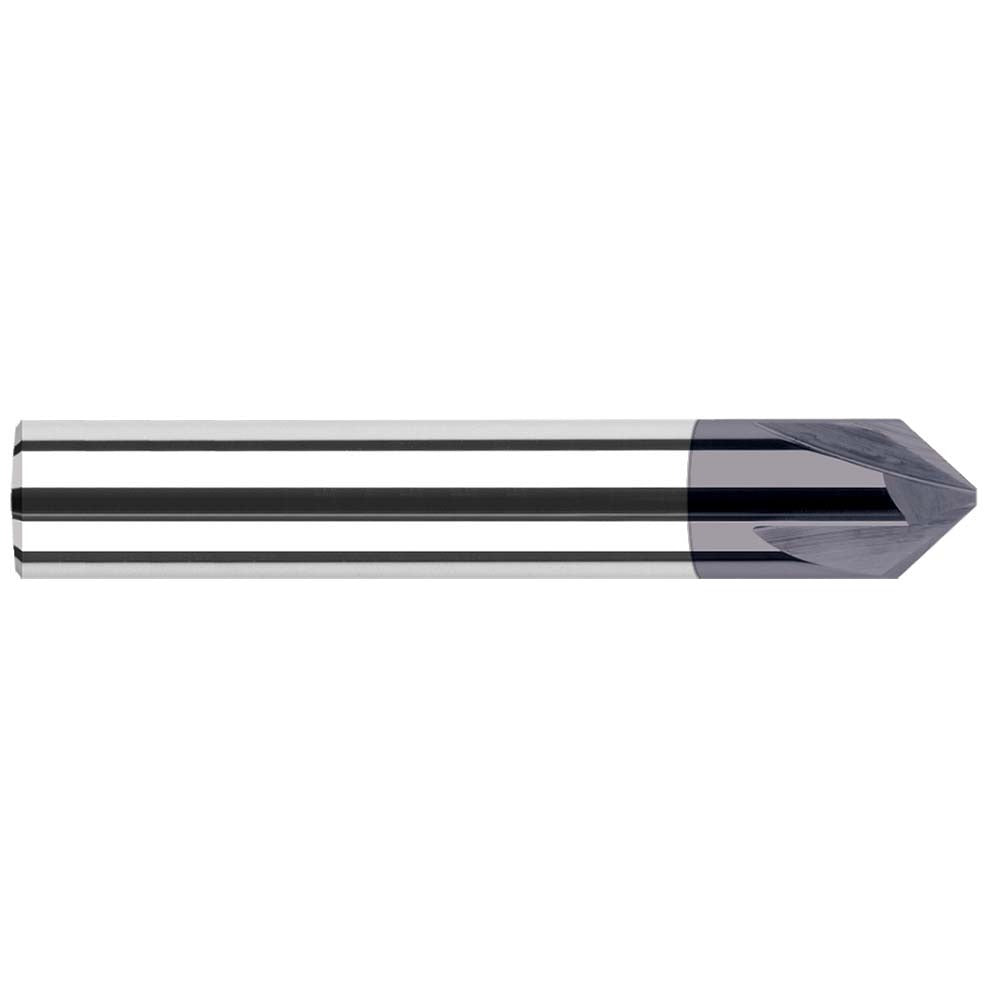

Harvey Tool 895115-C3 Chamfer Mill 4 Flute 3/8 Inch

Product Description

The HARVEY TOOL 895115-C3 is a 4-flute solid carbide chamfer mill designed for precise chamfering, deburring, and edge-breaking operations on ferrous and non-ferrous metals. It features an AlTiN (aluminum titanium nitride) coating, which increases surface hardness and heat resistance to extend tool life in demanding cutting environments. The 3/8-inch cutter head diameter and 3/8-inch shank diameter provide a compact, balanced profile suited for tight-tolerance work. With an overall length of 2.5 inches and a 0.588-inch length of cut, this tool fits standard toolholders and is installed by machinists and CNC operators in production and job-shop settings.

This chamfer mill is intended for use in milling operations where consistent chamfer geometry is required. It is appropriate for both manual mills and CNC machining centers. The right-hand cutting direction is the standard configuration for conventional and climb milling on vertical and horizontal spindles. Applications include chamfering drilled holes, preparing weld joints, and breaking sharp edges on machined components across aerospace, automotive, and general metalworking industries.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard materials
• AlTiN coating increases heat resistance and extends tool life in high-speed applications
• 4-flute design provides improved surface finish and chip evacuation
• 0.588-inch length of cut supports consistent chamfer depth across workpiece edges
• Right-hand cutting direction compatible with standard spindle rotation
• 3/8-inch shank fits common ER collet chucks and end mill holders

Compatibility

Designed as an OEM-style replacement chamfer mill for use in standard 3/8-inch toolholders including ER collet systems and straight-bore end mill holders on vertical and horizontal machining centers.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Power down and lock out the machine spindle before inserting or removing the tool from the toolholder. Ensure the shank is fully seated and the collet or set screw is torqued per the toolholder manufacturer specifications. Inspect the cutting edges for chips or wear before each use, and do not exceed the recommended speeds and feeds for the AlTiN coating and workpiece material combination.
