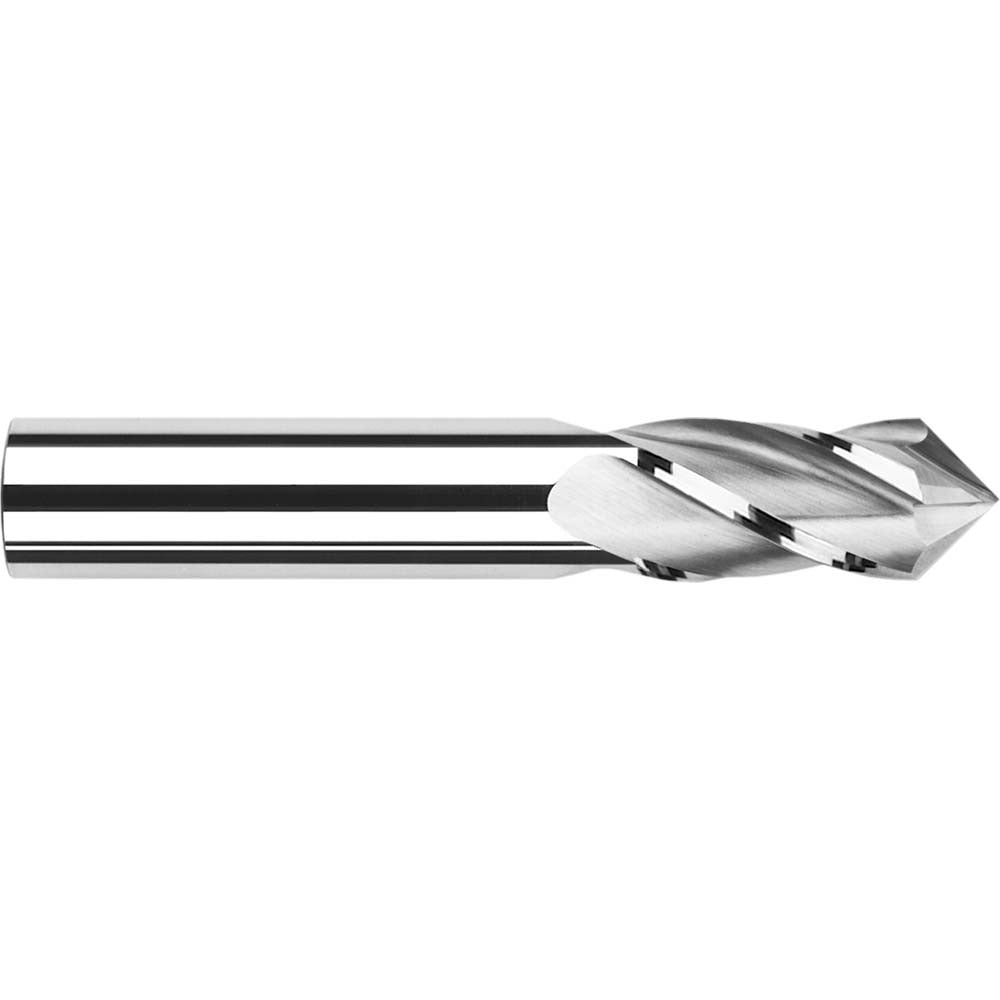

Harvey Tool 824024 Drill Mill 3/8 in 4 Flute Solid Carbide

Product Description

The HARVEY TOOL 824024 is a solid carbide drill mill designed for combined drilling and milling operations in a single tool. With a 3/8 inch cutting diameter, 90-degree point angle, and four flutes, it handles center drilling, spot drilling, chamfering, and peripheral milling without a tool change. The 2-inch length of cut provides substantial reach for slot and pocket work, while the solid carbide construction delivers the rigidity and heat resistance required at higher spindle speeds. Licensed machinists and CNC operators use this tool in production and job-shop environments where reducing tool changes and cycle time matters.

This drill mill suits vertical machining centers, CNC mills, and manual knee mills running ferrous and non-ferrous materials. The uncoated carbide finish makes it a straightforward choice for aluminum, brass, and similar non-ferrous alloys where coating buildup is a concern, as well as for applications where regrinding is anticipated. The 3/8 inch shank diameter fits standard ER collet chucks, end mill holders, and similar toolholding systems common in most shop environments.

Key Features

• 90-degree point angle supports spot drilling, chamfering, and center drilling in the same operation
• Four-flute geometry balances chip evacuation with rigidity for milling passes
• Solid carbide construction provides stiffness and wear resistance at elevated cutting speeds
• 2-inch length of cut accommodates deeper slots and stepped features
• Uncoated finish suited for non-ferrous materials and regrind programs
• 3/8 inch shank fits standard collet and end mill holder tooling systems

Compatibility

Designed as an OEM-style replacement or direct-use drill mill for CNC machining centers and manual mills accepting 3/8 inch shank toolholders.

Installation Notes

Installation is performed by qualified machinists or CNC setup personnel. Secure the shank fully in a clean, undamaged collet or end mill holder and torque the retention nut to the toolholder manufacturer specification before running. Inspect the cutting edges for chips or damage before each use, and confirm spindle speed and feed rates match the material being cut. Never exceed the tool's rated length of cut when taking full-depth passes.
