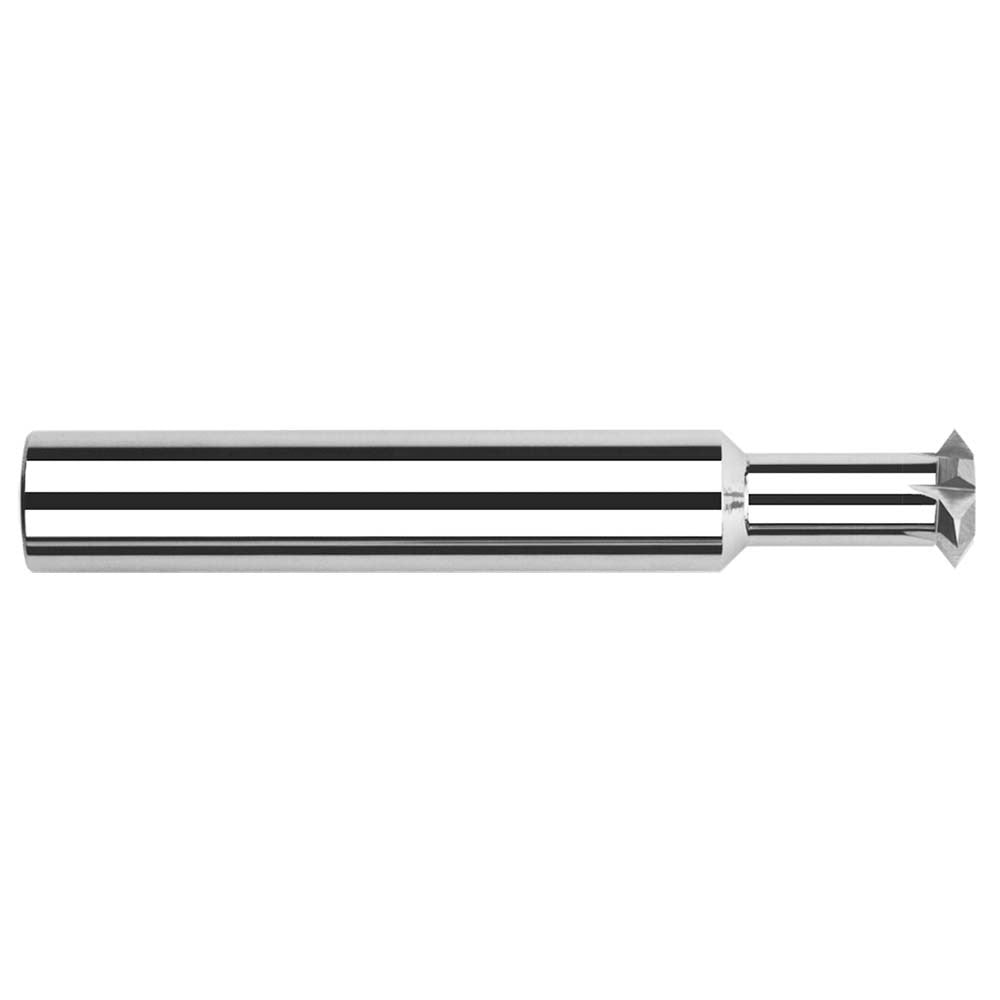

Harvey Tool 807224 Double Angle Milling Cutter 90 Deg

Product Description

The HARVEY TOOL 807224 is a solid carbide double angle milling cutter designed for precision angular milling operations in metalworking and machining applications. With a 90-degree included angle and a 3/8-inch cutting diameter, this tool cuts a 1/8-inch wide channel in a single pass. The 3/8-inch shank diameter and 1/4-inch neck diameter suit standard collet and end mill holders. At 3 inches overall length, the 807224 fits in both CNC machining centers and manual knee mills. Solid carbide construction provides the rigidity and wear resistance required for consistent, repeatable cuts. The bright, uncoated finish makes it suitable for a wide range of workpiece materials without coating compatibility concerns. Installed by machinists and toolmakers.

This cutter is used in applications requiring precise V-grooves, chamfers, dovetail preparation, and angular milling on ferrous and non-ferrous metals, plastics, and composites. The 90-degree included angle makes it a standard choice for deburring edges, cutting reference grooves, and creating angular seats in tooling plates, fixtures, and production components. The 1-1/4-inch neck length provides clearance when working in recessed or stepped features. With 6 teeth, the cutter balances feed rate capacity with surface finish quality in both roughing and light finishing passes.

Key Features

• 90-degree included angle for standard V-groove and chamfer milling
• Solid carbide construction for rigidity and extended tool life
• 3/8-inch cutting diameter with 1/8-inch cutting width for narrow angular profiles
• 6 teeth for balanced material removal and surface finish
• 1/4-inch neck diameter with 1-1/4-inch neck length for clearance in recessed features
• Bright uncoated finish compatible with a broad range of workpiece materials

Compatibility

Designed for use in standard 3/8-inch collets and end mill holders on CNC machining centers and manual milling machines. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Secure the shank fully in the collet or tool holder to the minimum insertion depth before tightening to the holder manufacturer's specification. Verify spindle runout before beginning the cut, as carbide tooling is sensitive to runout-induced chipping. Do not use this cutter as a plunge end mill unless the application specifically supports it.
