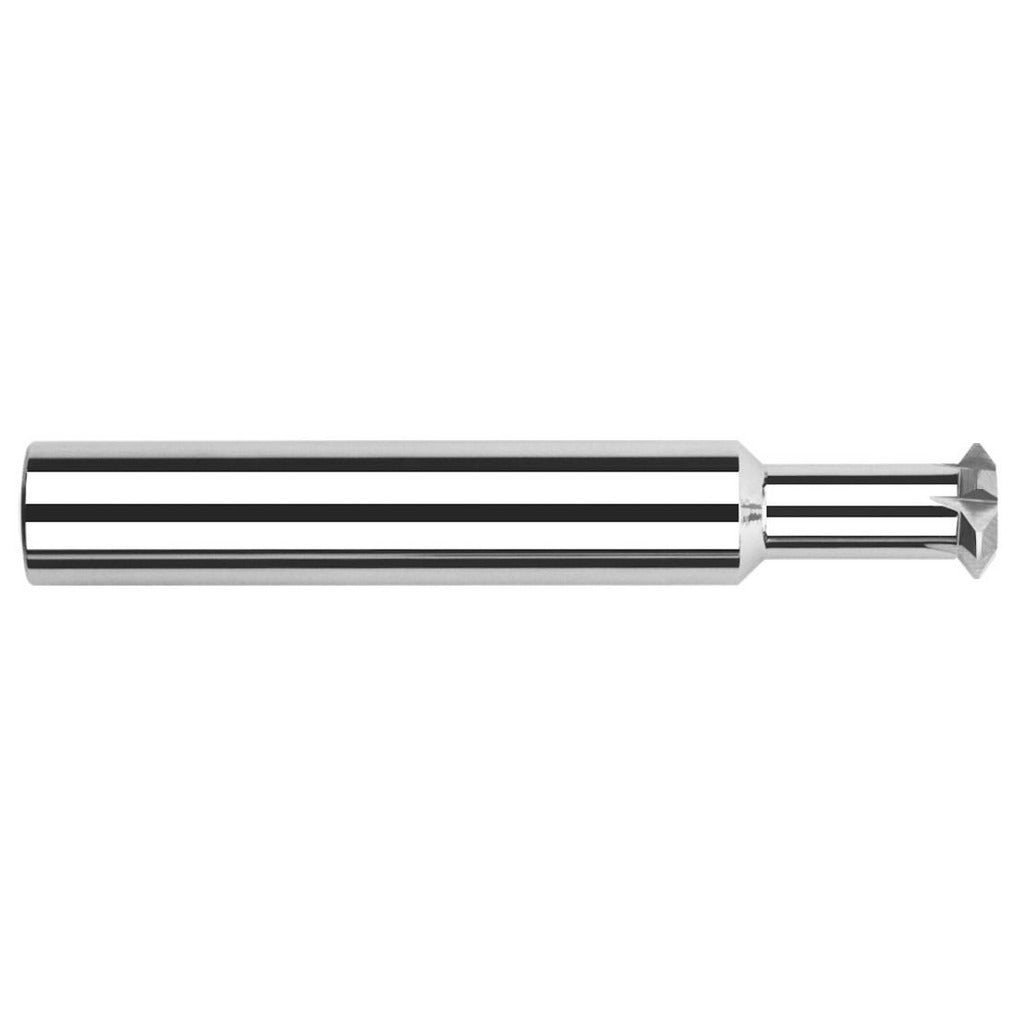

Harvey Tool 775112 Double Angle Milling Cutter 90 Degree

Product Description

The HARVEY TOOL 775112 is a solid carbide double angle milling cutter designed for precision dovetail slotting, chamfering, and angular groove milling in ferrous and non-ferrous materials. The cutter features a 90-degree included angle with a 3/16-inch cut diameter and a 0.105-inch cutting width, making it suited for tight, accurate angular features in production and tool room environments. With 4 teeth and a bright uncoated finish, the 775112 delivers clean cuts in materials where coating buildup or heat distortion is a concern. Licensed machinists and CNC tooling technicians are the primary users of this tool.

This cutter is applied in CNC machining centers and manual mills where angular slots, chamfers, or dovetail features are required. The 3/16-inch shank diameter allows it to seat in standard collets and end mill holders. With a 3/32-inch neck diameter and a 3/4-inch neck length, it provides clearance for shallow-to-moderate depth angular milling operations. The 2.5-inch overall length keeps deflection low during light finishing passes. It is well-suited to prototype shops, tool and die operations, and precision production runs.

Key Features

• 90-degree included angle for standard dovetail and chamfer applications
• Solid carbide construction for rigidity and wear resistance in hard and abrasive materials
• 4-tooth configuration balances chip evacuation with surface finish quality
• Bright uncoated finish maintains dimensional accuracy where coating thickness is a concern
• 3/32-inch neck diameter provides clearance above the cutting zone
• 2.5-inch overall length minimizes overhang-related deflection

Compatibility

Designed to fit standard 3/16-inch collets and end mill holders used in CNC machining centers and manual milling machines accepting straight-shank tooling.

Installation Notes

Installation and operation should be performed by a qualified machinist or CNC technician. Secure the shank fully in a compatible collet or end mill holder and verify runout before cutting. Ensure the spindle is fully stopped and locked out before changing or adjusting the tool. Follow shop-standard speeds and feeds for solid carbide end mills at the applicable material hardness and depth of cut.
