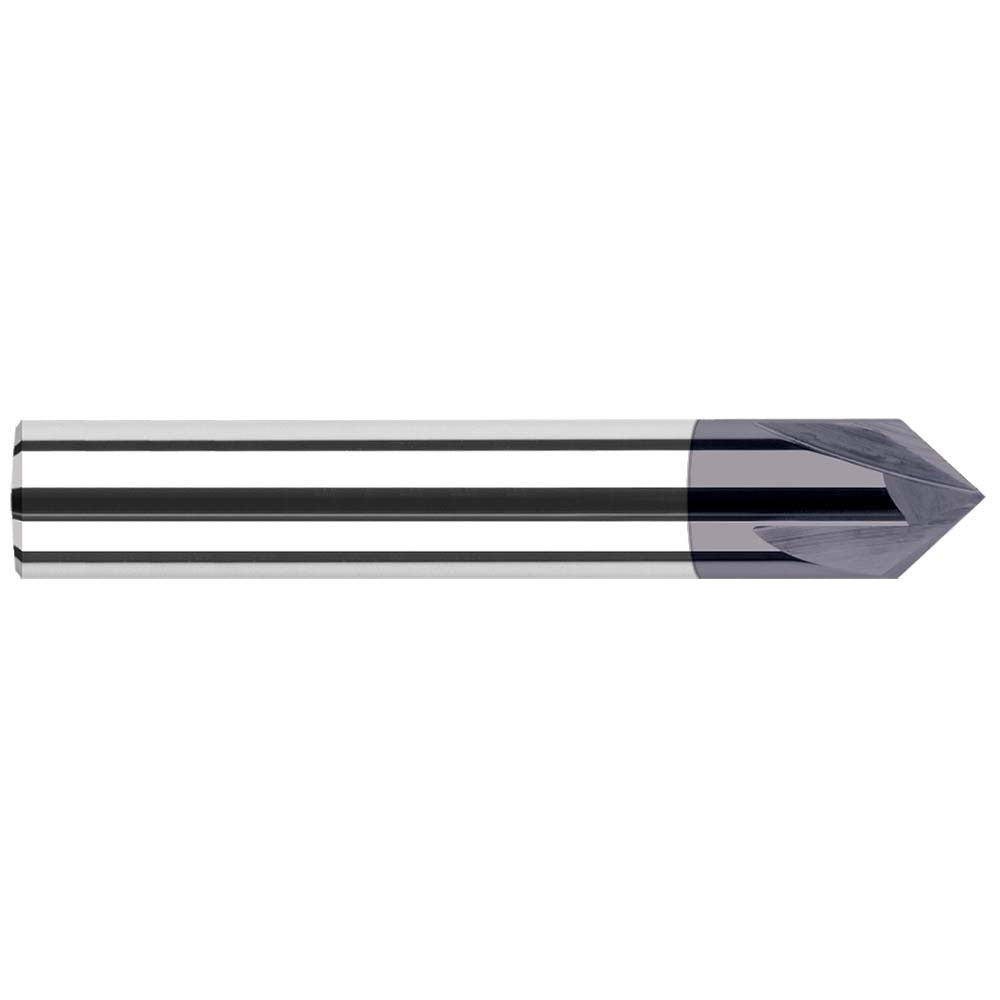

Harvey Tool 742245-C3 Solid Carbide Chamfer Mill 4-flute

Product Description

The HARVEY TOOL 742245-C3 is a solid carbide chamfer mill designed for precise chamfering, deburring, and edge-breaking operations on ferrous and non-ferrous materials. With a 0.5-inch cutter head diameter and a 4-flute, right-hand cutting geometry, this tool delivers clean, consistent chamfer profiles in demanding machining environments. The AlTiN coating provides elevated heat resistance and extended tool life under high-speed cutting conditions. At 3 inches of overall length, it fits standard 0.5-inch toolholders and is well-suited for CNC machining centers and manual mills alike.

This chamfer mill is used in precision machining shops, production environments, and toolrooms where consistent edge preparation is required. It is appropriate for chamfering operations on steel, stainless, cast iron, and similar materials where AlTiN-coated tooling is recommended. The single-end design concentrates cutting geometry for point-accurate chamfer work. Machinists and CNC operators installing this tool will find it suited for both pre-tap chamfering and finish edge-breaking passes.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard materials
• AlTiN coating for improved heat resistance and extended tool life
• 4-flute geometry delivers smooth surface finish and efficient chip evacuation
• Right-hand cutting direction compatible with standard CNC spindle rotation
• 0.2450-inch length of cut suitable for precise chamfer depth control
• Single-end design for focused chamfering, deburring, and edge prep

Compatibility

Designed for use in standard 0.5-inch collet chucks or end mill holders on CNC machining centers and manual mills capable of right-hand rotation tooling.

Installation Notes

This tool should be installed and operated by a qualified machinist or CNC technician. Always power down and lock out the spindle before tool changes. Secure the shank fully within the toolholder to the recommended gauge-line depth and verify runout before cutting. Follow the tool manufacturer and machine builder guidelines for speed and feed selection appropriate to the workpiece material.
