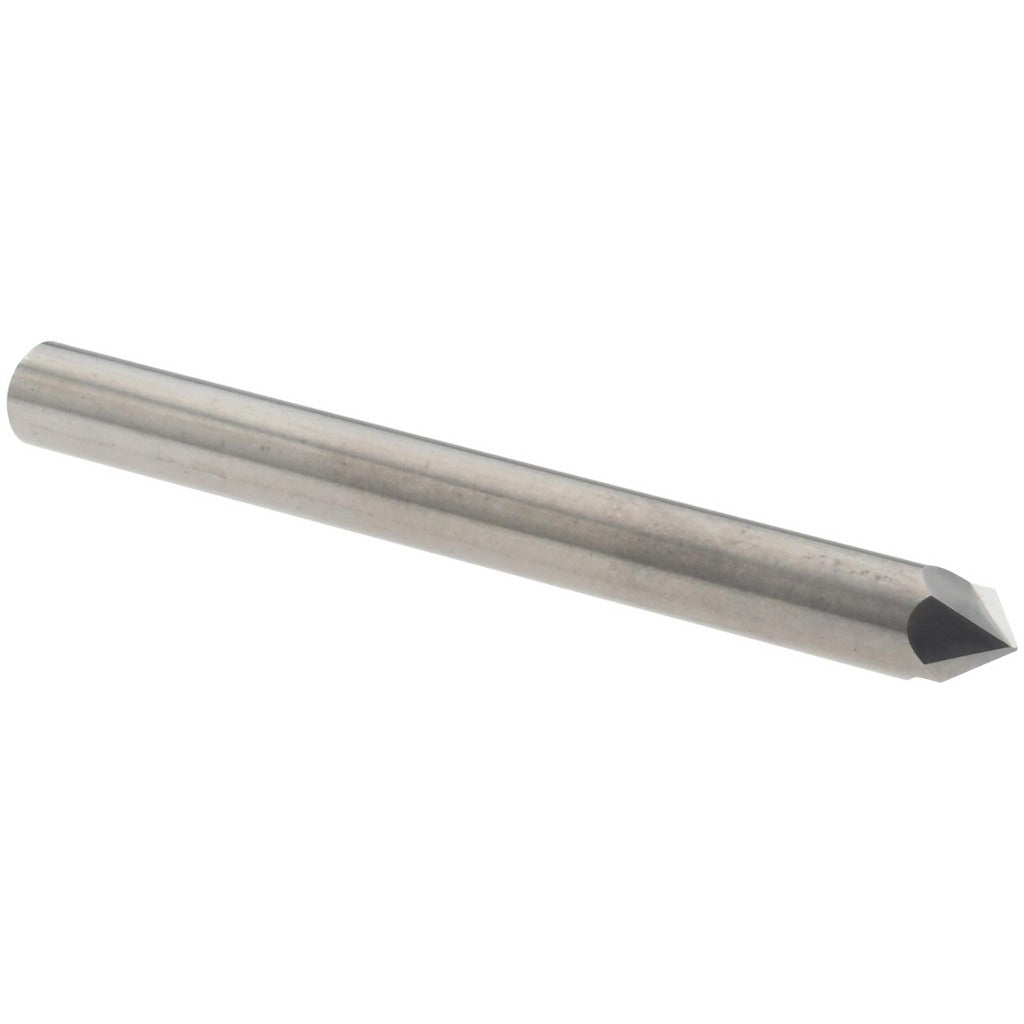

Harvey Tool 72445 Chamfer Mill 3/16 in 2 Flute Solid Carbide

Product Description

The HARVEY TOOL 72445 is a solid carbide chamfer mill designed for deburring, chamfering, and edge-breaking operations on a wide range of workpiece materials. With a 3/16-inch cutter head diameter, 2-flute geometry, and a 90-degree included angle, this tool delivers clean, consistent chamfers in a single pass. The bright/uncoated finish makes it well suited for use on aluminum, plastics, and non-ferrous metals where coating buildup is a concern. At 2 inches overall length with a 3/16-inch shank diameter, it fits standard collet chucks and is sized for work in tight or low-clearance setups. Machinists and CNC operators in job shops, aerospace, and general manufacturing use this tool for finish chamfering on milled or drilled features.

This chamfer mill is intended for use in CNC machining centers and manual milling machines where precision edge preparation is required. The single-end, right-hand cutting configuration suits conventional climb-milling setups on both ferrous and non-ferrous stock. Its compact diameter makes it effective for chamfering smaller drilled holes and edges where a larger-diameter tool would not seat properly. It is typically installed in a standard end mill holder or precision collet chuck.

Key Features

• 90-degree included angle for standard chamfering and countersinking applications
• Solid carbide construction for rigidity and wear resistance across diverse workpiece materials
• Bright/uncoated finish minimizes built-up edge on aluminum and non-ferrous metals
• 2-flute design provides chip clearance in shallow chamfering passes
• Right-hand cutting direction compatible with conventional CNC spindle rotation
• Compact 3/16-inch diameter for chamfering small-diameter holes and tight-tolerance features

Compatibility

Designed as an OEM-style solid carbide chamfer mill for use in standard 3/16-inch collet chucks or end mill holders on CNC machining centers and manual mills.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Power down and lock out the spindle before loading or removing the tool from the holder. Seat the shank fully into the collet or holder and verify runout before beginning a cut. Follow the machine tool manufacturer guidelines for spindle speed and feed rate recommendations appropriate to the workpiece material.
