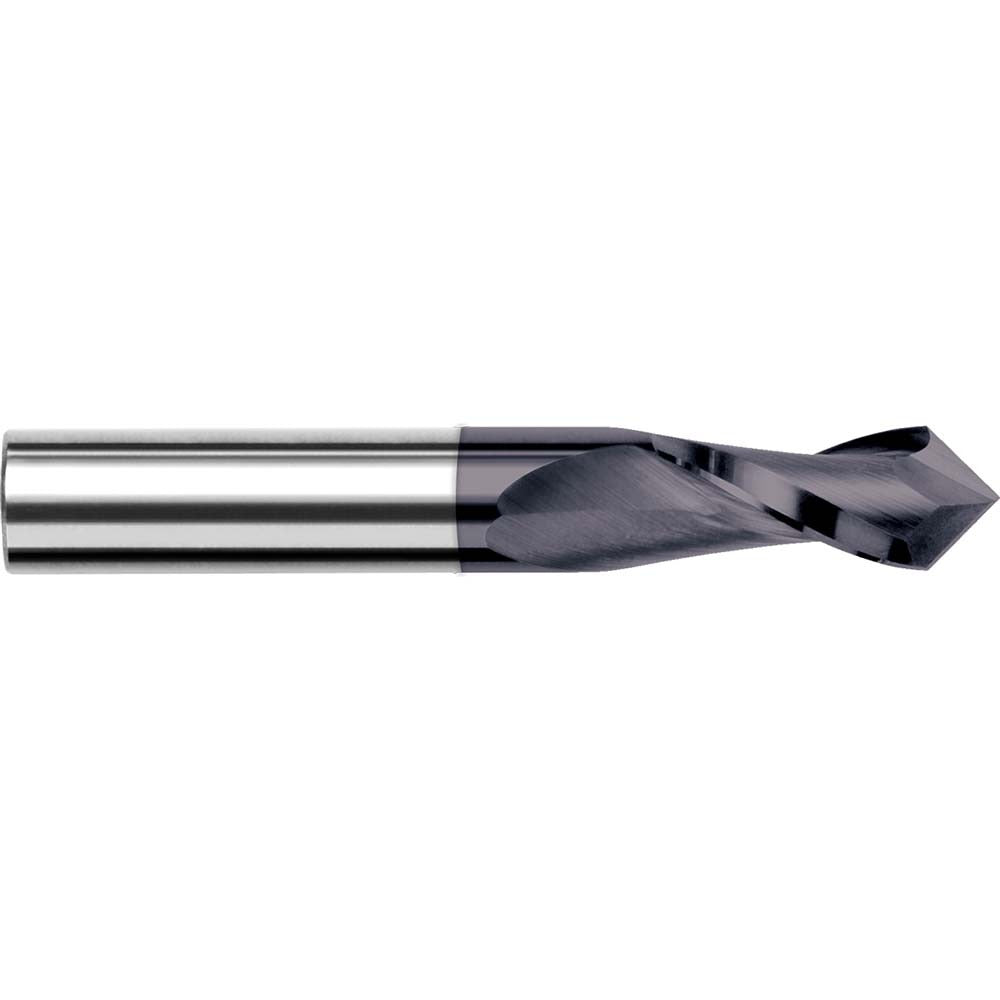

Harvey Tool 72332-C3 Drill Mill 1/2 in 2 Flute Solid Carbide

Product Description

The HARVEY TOOL 72332-C3 is a solid carbide drill mill designed for operations that combine drilling and milling in a single tool. With a 1/2 inch diameter, 1 inch length of cut, and a 90-degree point angle, this drill mill handles center drilling, spot drilling, and peripheral milling without a tool change. The AlTiN coating improves heat resistance and extends tool life in ferrous and high-temperature alloy materials. Machinists and CNC operators use it in production and job-shop environments where cycle time and tool changes matter.

This drill mill is suited for use in vertical machining centers and CNC mills where multi-function tooling is required. The 90-degree point angle makes it effective for chamfering, countersinking, and plunge-entry milling. The 2-flute geometry supports chip evacuation in both drilling and side-milling passes. Applications include aerospace, die-and-mold, and general precision machining where a single tool must perform multiple operations across ferrous metals, stainless steels, and high-temp alloys.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding machining operations
• AlTiN coating provides high heat resistance and extended tool life in ferrous and exotic materials
• 90-degree point angle enables spot drilling, chamfering, and countersinking in a single setup
• 2-flute design promotes chip clearance during both drilling and milling passes
• 1/2 inch shank diameter matches standard ER and end mill collet holders
• 3 inch overall length provides reach for typical machining center setups

Compatibility

Designed as a direct-fit tool for standard 1/2 inch collet chucks and end mill holders used in CNC vertical machining centers and manual knee mills requiring combined drill and mill capability.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Seat the shank fully into the collet or tool holder and torque the retention nut to holder manufacturer specifications. Verify runout with a dial indicator before beginning a cut, as excessive runout will reduce tool life and surface finish quality.
