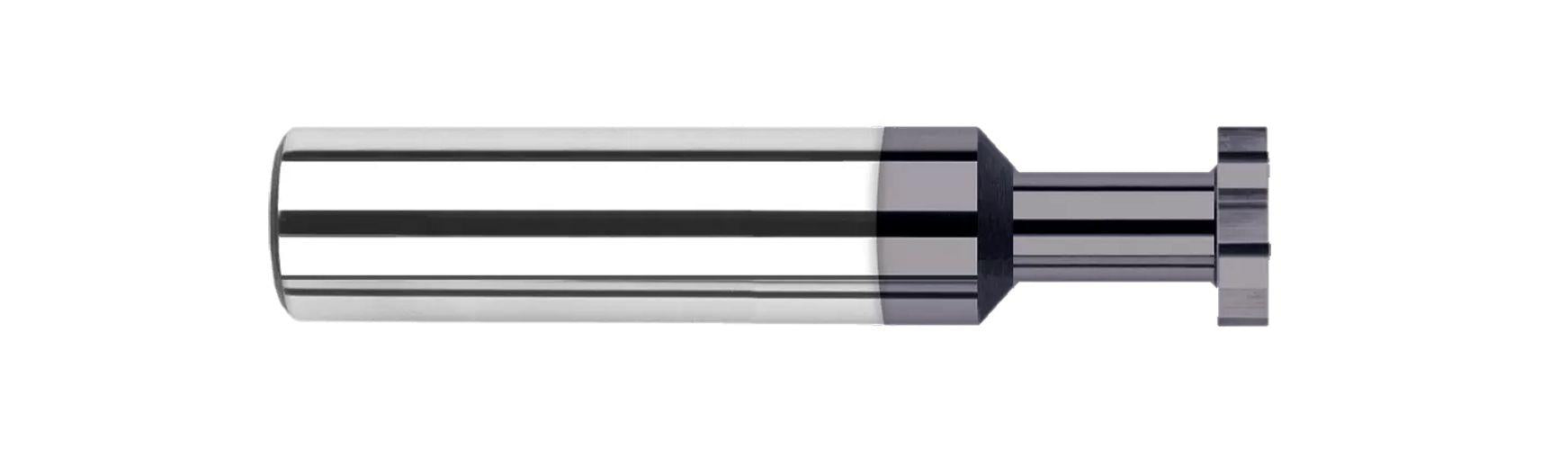

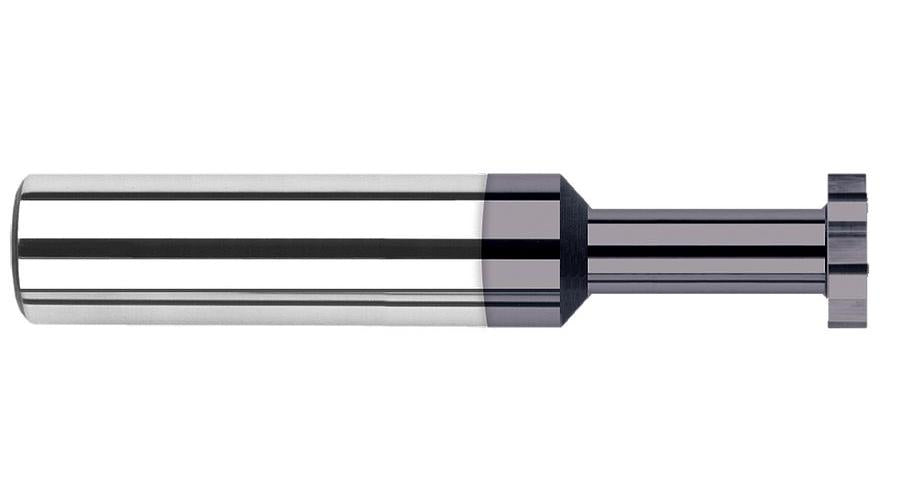

Harvey Tool 71850-C3 HARVEY 7/16 D x 3/32 W CARB KEYSEAT AlTiN

Product Description

The Harvey Tool 71850-C3 is a carbide keyseat cutter designed for precision in milling operations. This tool has a diameter of seven-sixteenths inches and a cutting width of ninety-three thousandths of an inch. The overall length of the cutter measures two and three-fourths inches, making it suitable for various keyseating tasks.

• Made of solid carbide for durability and performance
• Features an AlTiN coating for improved wear resistance
• Designed for right-hand cutting direction

Product Highlights

This tool is perfect for applications involving non-ferrous metals, cast iron, and stainless steel.

Product Information

Standard Information

• Brand: Harvey Tool
• Part Number: 71850-C3

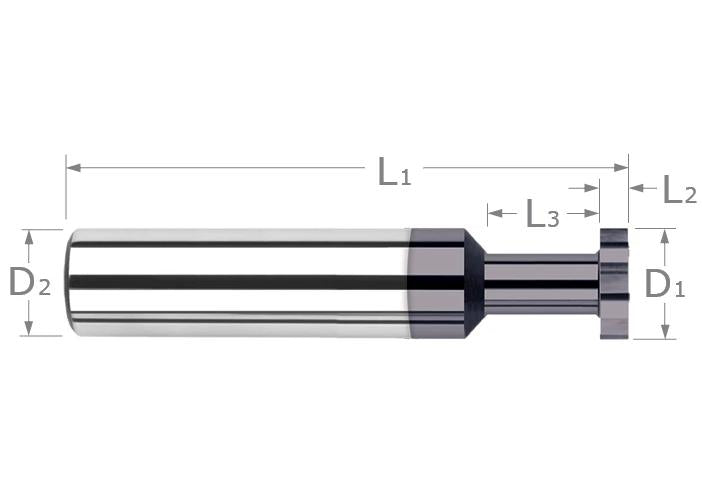

Technical Specifications

• Diameter: 0.4375 inches (11.113 mm)
• Cut Width: 0.093 inches
• Shank Diameter: 0.4375 inches (11.113 mm)
• Overall Length: 2.750 inches (69.850 mm)
• No. of Teeth: 8
• Neck Diameter: 0.219 inches
• Neck Length: 0.625 inches (15.875 mm)
