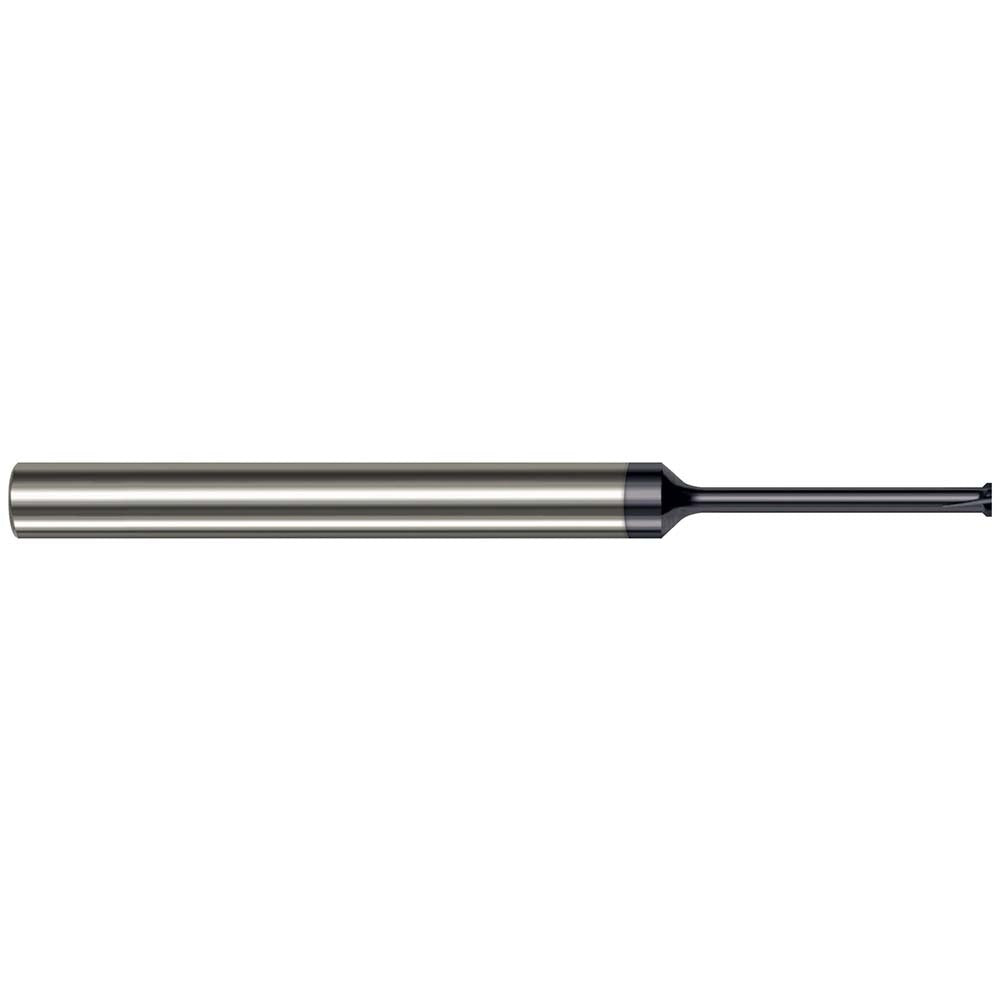

Harvey Tool 57130-C3 Back Chamfer Cutter 0.165 in 90 Deg 6 Flute

Product Description

The HARVEY TOOL 57130-C3 is a solid carbide back chamfer cutter designed for deburring and chamfering from the reverse side of a workpiece. The cutter produces a 90-degree included angle chamfer 0.019 inches wide on a 0.165-inch cutter head diameter. Six flutes and an AlTiN coating allow the tool to run at elevated speeds in ferrous and non-ferrous materials while maintaining edge integrity. The burr-style end enables entry through a pre-drilled hole so the chamfer is applied to features that cannot be reached from the face of the part. This tool is used by machinists and tool-and-die professionals in CNC milling and manual mill operations.

This back chamfer cutter is suited for production and job-shop environments where through-holes, cross-holes, or undercut features require edge breaking on the blind side. It fits standard 3/16-inch collets and tool holders, making it compatible with most vertical machining centers and manual knee mills. Typical applications include deburring intersecting bores, chamfering hidden shoulders, and finishing undercut slots in steel, stainless, aluminum, and hardened alloys. The AlTiN coating extends tool life in high-temperature cutting conditions common in ferrous machining.

Key Features

• 90-degree included angle for standard back chamfer geometry
• 0.019-inch chamfer width provides controlled, consistent edge break
• Six-flute design improves surface finish and allows higher feed rates
• AlTiN coating increases heat resistance and wear life in ferrous materials
• Solid carbide construction delivers rigidity and dimensional stability
• 0.121-inch neck diameter allows clearance in deep or confined bore entries

Compatibility

Designed as an OEM-style replacement and standard-production back chamfer cutter for use in 3/16-inch shank collet chucks and compatible tool holders on CNC and manual milling machines.

Installation Notes

Installation is performed by qualified machinists following standard toolroom procedures. Secure the 3/16-inch shank in a clean, properly sized collet or end mill holder and verify runout before cutting. Always confirm the pre-drilled entry hole diameter exceeds the cutter head diameter before inserting the tool. Follow machine manufacturer guidelines and applicable shop safety protocols when setting speeds and feeds for the workpiece material.
