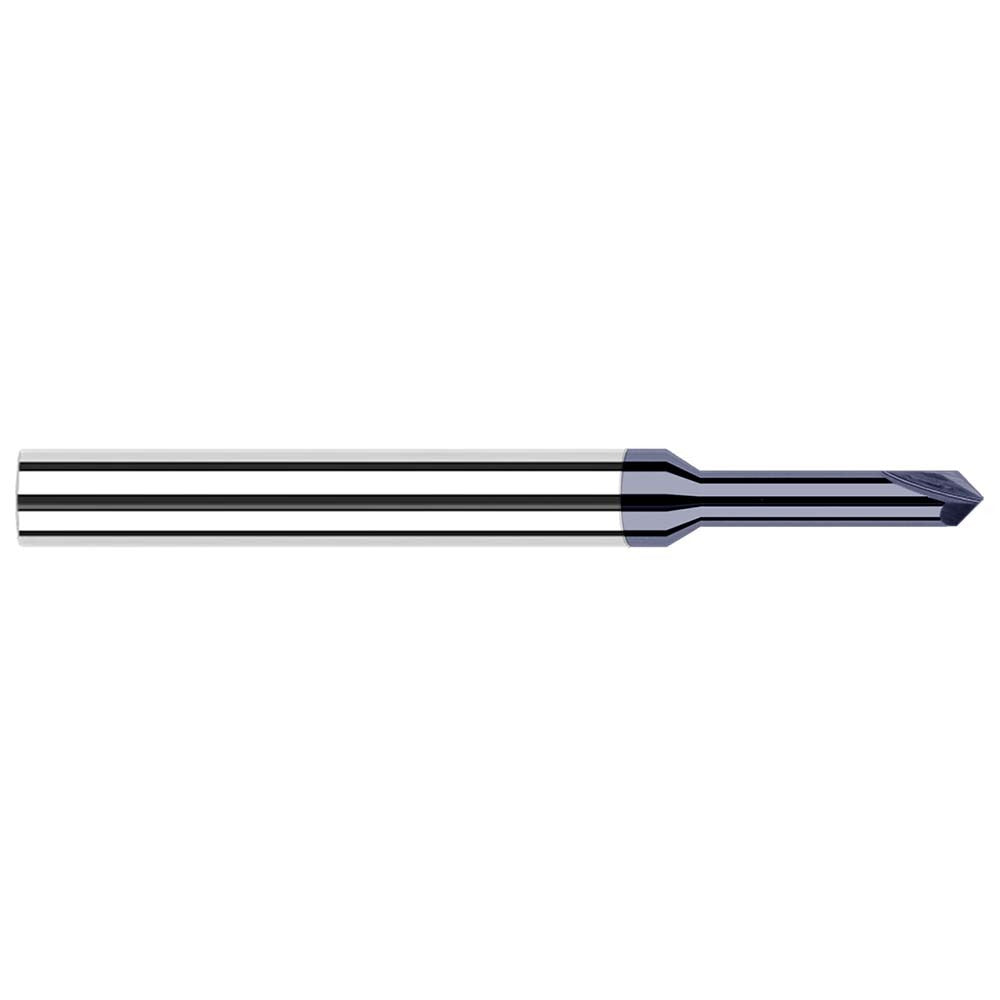

Harvey Tool 56845-C3 Chamfer Mill Solid Carbide Altin

Product Description

The HARVEY TOOL 56845-C3 is a solid carbide chamfer mill designed for precise chamfering, deburring, and edge-breaking operations on ferrous and non-ferrous materials. This 2-flute end mill features an AlTiN (aluminum titanium nitride) coating that improves heat resistance and extends tool life in demanding cutting environments. With a cutter head diameter of 1/32 inch and a length of cut of 0.016 inches, the 56845-C3 is built for tight, controlled work in small-feature applications. The 2.5-inch overall length and 1/8-inch shank diameter make it compatible with standard miniature toolholders. Right-hand cutting direction is standard. Machinists and CNC operators working on precision components rely on this geometry for consistent, repeatable chamfer results.

The 56845-C3 is suited for use in CNC machining centers, manual mills, and high-speed spindle setups where small-diameter chamfer work is required. Typical applications include edge preparation on precision parts, countersink blending, and cross-hole deburring. The solid carbide construction and AlTiN coating make it appropriate for use on steel, stainless steel, aluminum, and hardened alloys. This tool is used in job shops, aerospace component manufacturing, and precision medical device machining where surface integrity and edge consistency are critical.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard materials
• AlTiN coating improves high-temperature performance and extends tool life
• 2-flute geometry supports efficient chip evacuation on small chamfer features
• 1/32 inch cutter head diameter for fine, small-feature chamfering
• Right-hand cutting direction, compatible with standard CNC spindle rotation
• 1/8 inch shank diameter fits standard miniature collets and toolholders

Compatibility

Designed for use in CNC machining centers and manual mills with 1/8 inch collet or toolholder systems. Specific machine or system compatibility was not provided in the product data; confirm shank fitment and spindle speed range before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Power down the machine and confirm the spindle is fully stopped before changing tooling. Ensure the collet and toolholder are clean and free of debris before seating the shank. Follow the tool manufacturer and machine builder guidelines for runout tolerance and clamping torque appropriate to the toolholder type.
