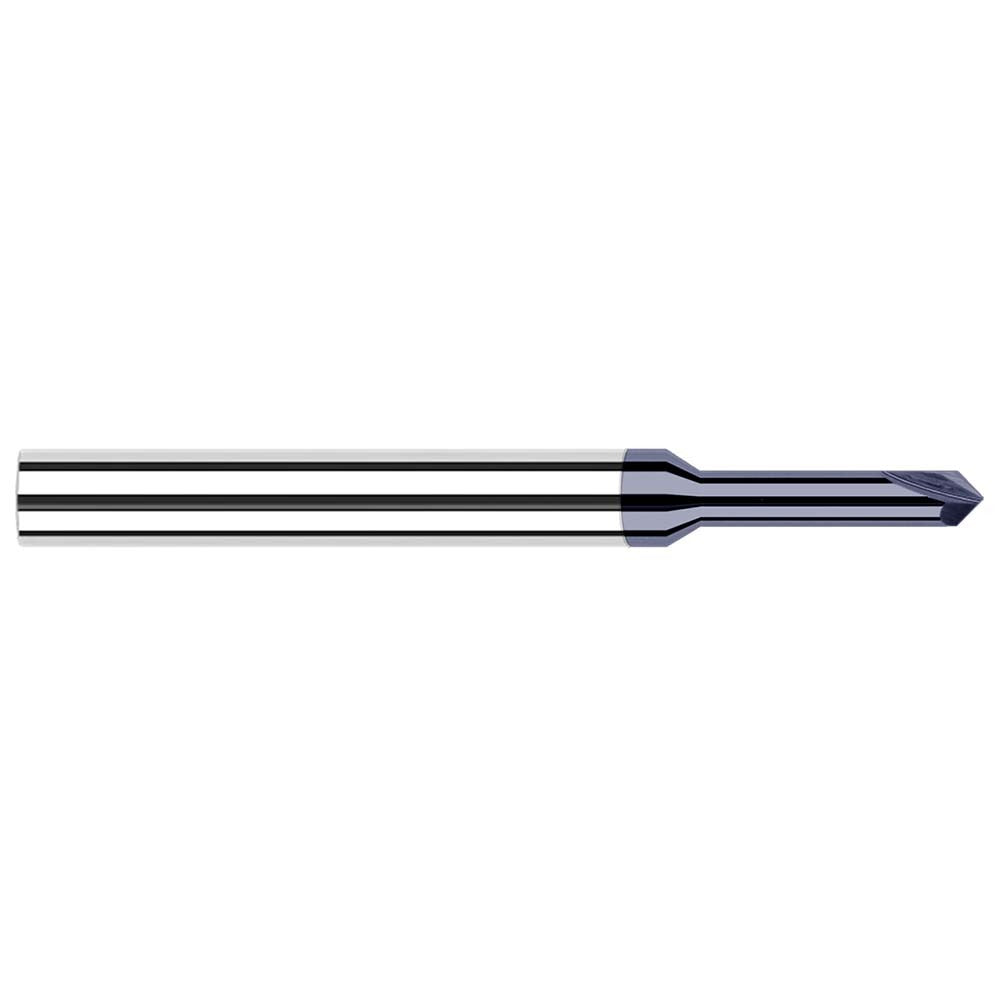

Harvey Tool 52145-C3 Chamfer Mill 3/32 in Solid Carbide

Product Description

The HARVEY TOOL 52145-C3 is a solid carbide chamfer mill designed for precise chamfering, deburring, and edge-breaking operations on a wide range of materials. With a 3/32 inch cutter head diameter and a 90-degree included angle, this single-end tool delivers consistent, controlled cuts in tight spaces and fine-detail applications. The AlTiN coating provides elevated heat resistance and extended tool life during high-speed machining. At 2.5 inches overall length with a 1/8 inch shank, it fits standard collet toolholders used in CNC machining centers and manual mills. Machinists and toolroom technicians handling small-scale precision work will find this tool well-suited to the task.

The 52145-C3 is intended for use in CNC milling applications requiring accurate chamfer geometry on metal, composites, and hard plastics. The right-hand cutting direction and 2-flute configuration make it appropriate for general-purpose chamfering on small features, countersinking, and spot-facing where a full-size chamfer mill would be too large. It is particularly useful in mold and die work, aerospace component finishing, and precision instrument manufacturing where close tolerances are required on edge geometry.

Key Features

• 3/32 inch cutter head diameter for small-feature chamfering in confined areas
• 90-degree included angle for standard chamfer geometry
• Solid carbide construction for rigidity and wear resistance
• AlTiN coating improves heat resistance and extends tool life in ferrous and hardened materials
• 1/8 inch shank diameter fits common small-bore collet toolholders
• Right-hand cutting direction, single-end design with 2-flute geometry

Compatibility

Designed for use with standard 1/8 inch collet toolholders on CNC machining centers and manual milling machines. No specific compatible machine models or replacement part numbers were identified in the product data.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Secure the 1/8 inch shank in a properly sized collet and torque the toolholder to the spindle manufacturer's specification before operation. Confirm runout with a dial indicator before engaging the cut. Do not exceed the tool's rated cutting length of 3/64 inch per pass without verifying depth-of-cut parameters in the machining program.
