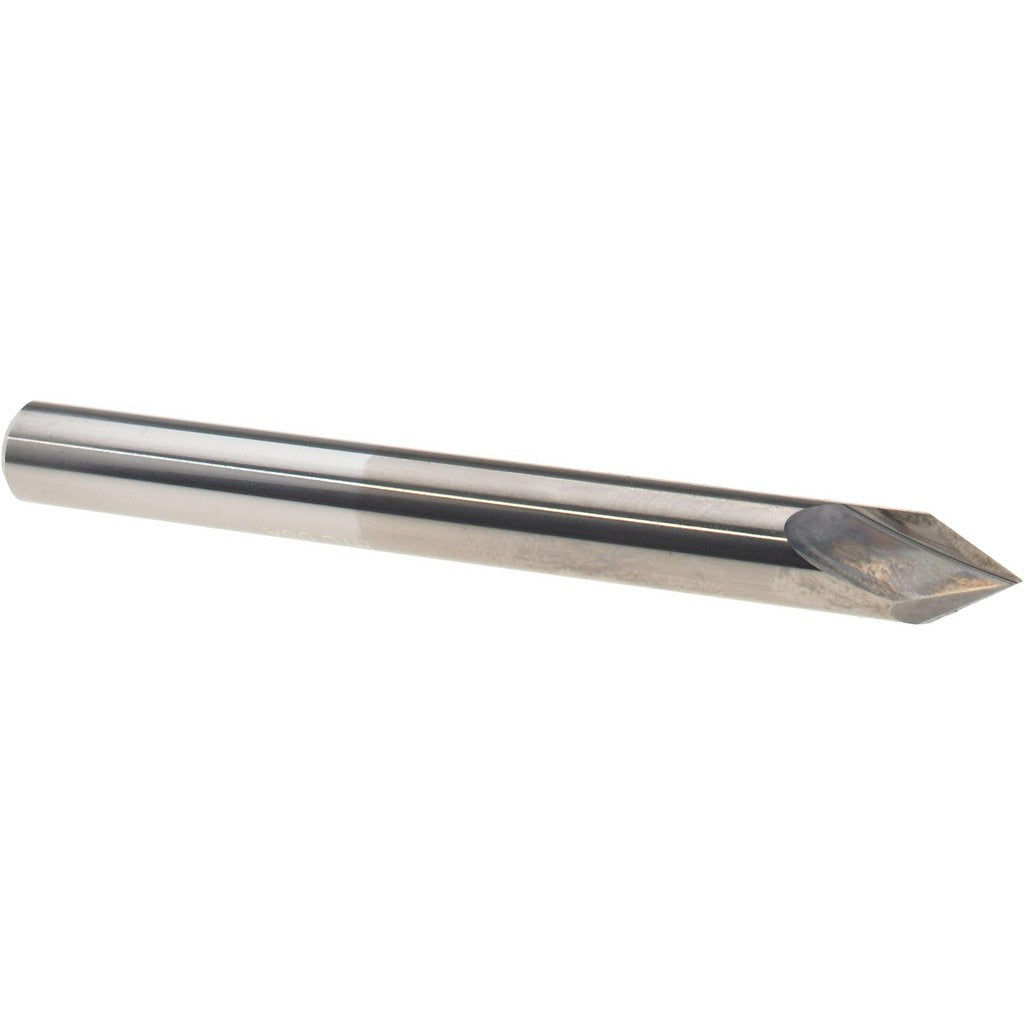

Harvey Tool 47630 Chamfer Mill 1/4 in 2 Flute Solid Carbide

Product Description

The HARVEY TOOL 47630 is a solid carbide chamfer mill designed for chamfering, deburring, and edge-breaking operations on a wide range of workpiece materials. Built with a 1/4 inch cutter head diameter and a 2-flute, right-hand cutting geometry, this mill delivers clean, consistent chamfers with minimal chatter. The Bright/Uncoated finish makes it well suited for use on aluminum, brass, and other non-ferrous materials where a coating is not required or preferred. With an overall length of 2-1/2 inches and a 1/4 inch shank diameter, it mounts directly into standard collet chucks and end mill holders. Machinists and CNC operators use this tool in both manual and automated milling applications where edge geometry and finish quality matter.

This chamfer mill is appropriate for light industrial and precision machining environments including job shops, tool rooms, and production floors. The single-end configuration makes it a straightforward choice for standard chamfering passes on ferrous and non-ferrous metals, plastics, and composites. The 60 and 120 degree included angle options suit a broad range of chamfer geometries. It is sized for use in 1/4 inch toolholders common across vertical machining centers and benchtop mills.

Key Features

• Solid carbide construction for rigidity and wear resistance in milling operations
• 2-flute, right-hand cutting geometry for clean chip evacuation and consistent edge finish
• Bright/Uncoated finish suited for non-ferrous metals and applications where coating is not required
• 60 and 120 degree included angle provides flexibility across common chamfer geometries
• 1/4 inch shank fits standard collet chucks and end mill holders without adapters
• Single-end design for straightforward tool setup and replacement

Compatibility

Designed as an OEM-style replacement or direct-fit chamfer mill for 1/4 inch collet chucks and end mill holders used in standard vertical machining centers, knee mills, and CNC milling machines.

Installation Notes

This tool is installed by qualified machinists or CNC operators. Power down the spindle and confirm the machine is in an e-stop or locked-out state before changing tooling. Seat the 1/4 inch shank fully in the collet or holder and torque the retention nut to the toolholder manufacturer specification. Verify runout with a dial indicator before beginning a cutting pass to avoid premature tool wear or edge chipping.
