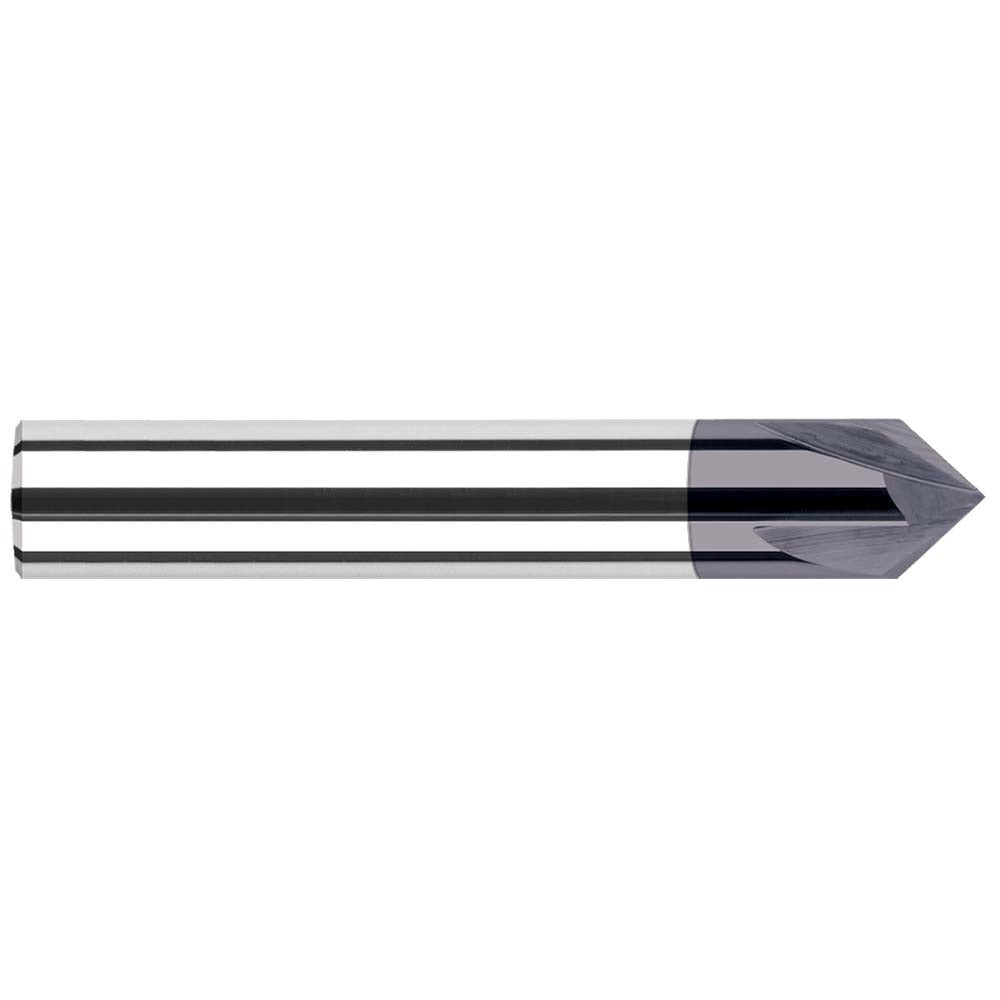

Harvey Tool 47620-C3 Chamfer Mill 1/4 in Solid Carbide

Product Description

The HARVEY TOOL 47620-C3 is a solid carbide chamfer mill designed for precision chamfering, deburring, and edge-breaking operations on a wide range of materials. Built with a 1/4 inch cutter head diameter and a 2-flute geometry, this tool delivers clean, consistent cuts in both light and moderate-duty applications. The AlTiN coating provides elevated heat resistance and extended tool life in ferrous and hardened materials. With a 1/4 inch shank diameter and a 2-1/2 inch overall length, the 47620-C3 fits standard collet chucks and tool holders found on most CNC machining centers and manual mills.

This chamfer mill is suited for use in machine shops, fabrication environments, and production floors where repeatable edge geometry is required. Right-hand cutting direction makes it compatible with conventional spindle setups. The combination of solid carbide construction and AlTiN coating makes it a practical choice for machinists working with steel, stainless, cast iron, and similar materials. It is sold and packaged as a single unit.

Key Features

• Solid carbide construction for rigidity and dimensional stability under cutting loads
• AlTiN coating for improved heat resistance and longer tool life in ferrous materials
• 2-flute design provides good chip clearance and clean edge finishing
• Right-hand cutting direction compatible with standard CNC and manual mill spindle rotation
• 1/4 inch shank diameter fits common collet sizes and tool holders
• 0.3300 inch length of cut supports typical chamfer and deburring depth requirements

Compatibility

Designed as a direct-fit chamfer mill for use in standard 1/4 inch collet chucks and end mill holders on CNC machining centers, knee mills, and similar equipment with right-hand spindle rotation.

Installation Notes

This tool is installed by machinists or CNC operators using standard toolholding equipment. Ensure the spindle is fully stopped and the machine is in a safe state before inserting or removing the tool. Seat the shank fully into the collet or holder and tighten to the holder manufacturer's specified torque before operation. Inspect the cutting edges for chips or damage before each use.
