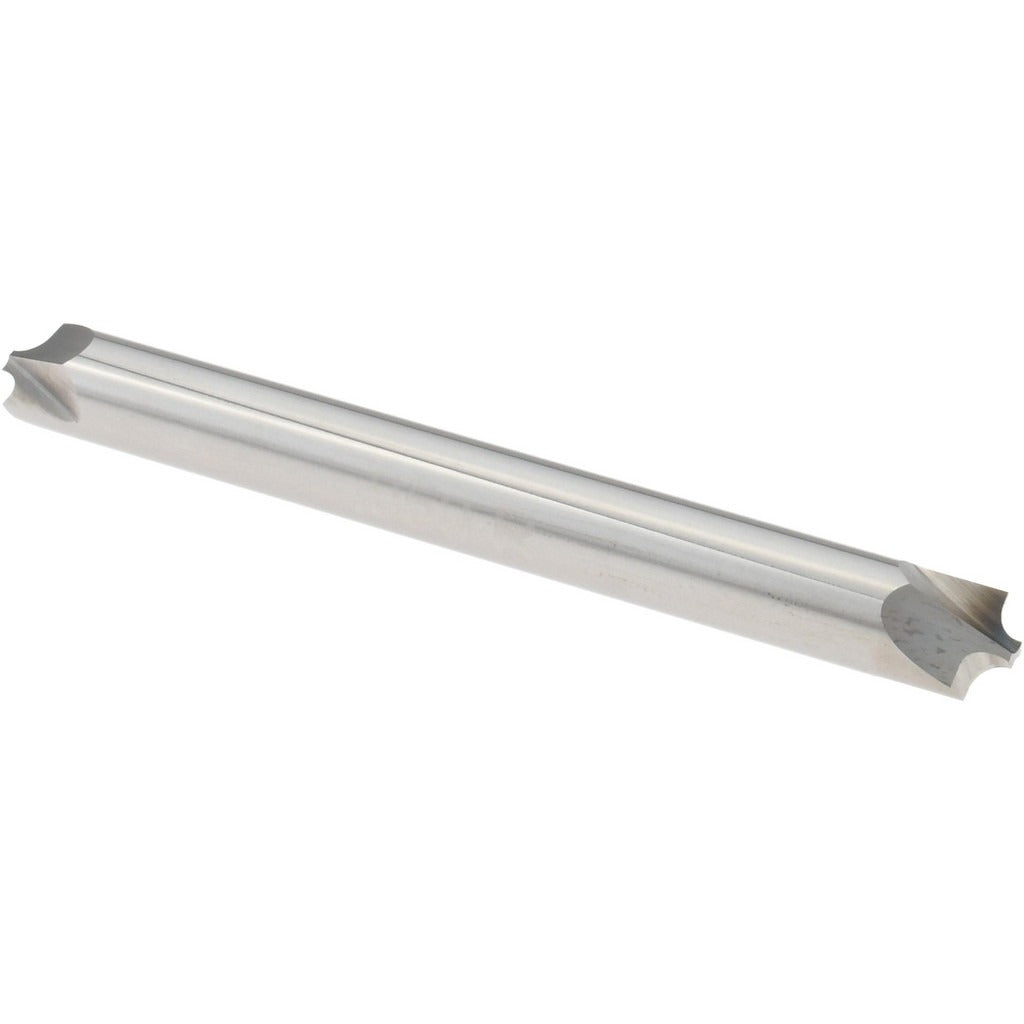

Harvey Tool 46050 Corner Rounding End Mill 3/16 in 2 Flute

Product Description

The HARVEY TOOL 46050 is a solid carbide corner rounding end mill designed to produce consistent, precise edge radii on ferrous and non-ferrous workpieces. It features a 0.05 mm corner radius and a 3/16 inch mill diameter, making it suited for light profiling and edge-break operations where tight radius control is required. The double-end configuration provides two usable cutting ends, extending tool life between changes. With 2 flutes and a bright uncoated finish, this end mill is a straightforward choice for general-purpose corner rounding in machining centers and CNC mills where edge finishing and deburring are part of the process flow.

This end mill is intended for use in precision machining environments, including job shops, toolrooms, and production CNC operations. The small radius and compact tip diameter of 0.047 inches make it well suited for fine edge work on components where larger radius tools would over-cut the geometry. It is typically installed by machinists and CNC operators working on aluminum, steel, and similar materials requiring clean, uniform corner breaks. The 2 inch overall length provides clearance in standard tool holders without excessive overhang.

Key Features

• 0.05 mm corner radius for precise, controlled edge rounding
• Solid carbide construction for rigidity and wear resistance
• Double-end design provides two cutting ends per tool
• 2 flutes with bright uncoated finish for general-purpose application
• Compact 0.047 inch tip diameter allows work in tight geometries
• 3/16 inch shank diameter fits standard collets and tool holders

Compatibility

Designed as a standard replacement or new-installation corner rounding end mill for CNC machining centers and manual mills using 3/16 inch collets or tool holders.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Secure the shank fully in a clean, properly sized collet or end mill holder and torque to the tool holder manufacturer's specification. Inspect the cutting edges for chips or damage before use. Follow shop safety protocols and machine guarding requirements during tool changes and operation.
