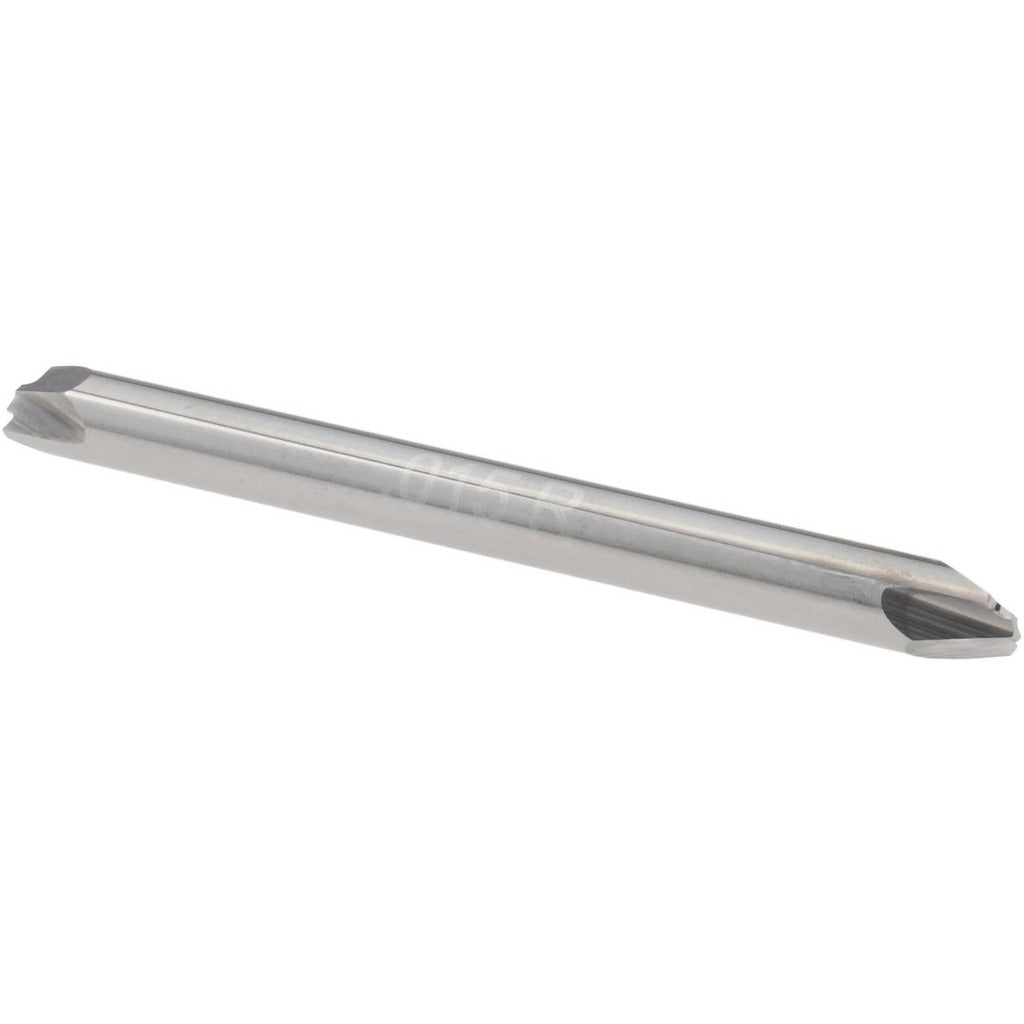

Harvey Tool 46015 Corner Rounding End Mill 1/8 in 2 Flute

Product Description

The HARVEY TOOL 46015 is a solid carbide corner rounding end mill designed to produce precise radius profiles on workpiece edges. With a 1/64 inch corner radius and a 0.125 inch mill diameter, this double-end tool generates smooth, consistent edge breaks on ferrous and non-ferrous materials. The bright uncoated finish makes it well-suited for aluminum, brass, and other non-ferrous stock where coatings may cause adhesion. With 2 flutes and a 0.047 inch tip diameter, the 46015 is built for light-to-moderate material removal in tight geometries where accuracy and surface finish matter most.

This end mill is used in CNC milling applications across job shops, tool rooms, and production machining environments. Its double-end configuration allows for extended tool life by providing two usable cutting ends. The 1/8 inch shank diameter fits standard collets and tool holders commonly found on vertical machining centers and small-format CNC mills. Machinists working on prototype parts, mold components, and precision assemblies will find the small radius and compact diameter useful for edge finishing on confined surfaces.

Key Features

• 1/64 inch corner radius for fine, precise edge rounding
• Solid carbide construction for rigidity and wear resistance
• Double-end design extends usable tool life
• Bright uncoated finish suited for non-ferrous and non-abrasive materials
• 0.047 inch tip diameter enables access to tight part geometry
• 2-flute configuration balances chip evacuation with edge finish quality

Compatibility

Designed as an OEM-style replacement or direct-use cutting tool compatible with standard 1/8 inch collets and tool holders on CNC vertical machining centers and milling machines accepting 1/8 inch shank tooling.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator familiar with rotating cutting tool setup. Ensure the machine spindle is fully stopped and the tool holder is clean and free of debris before seating the shank. Use a properly sized collet or end mill holder torqued to the machine manufacturer's specification for the shank diameter. Verify runout with a dial indicator before beginning a cut, as excessive runout will accelerate wear on a tool of this diameter.
