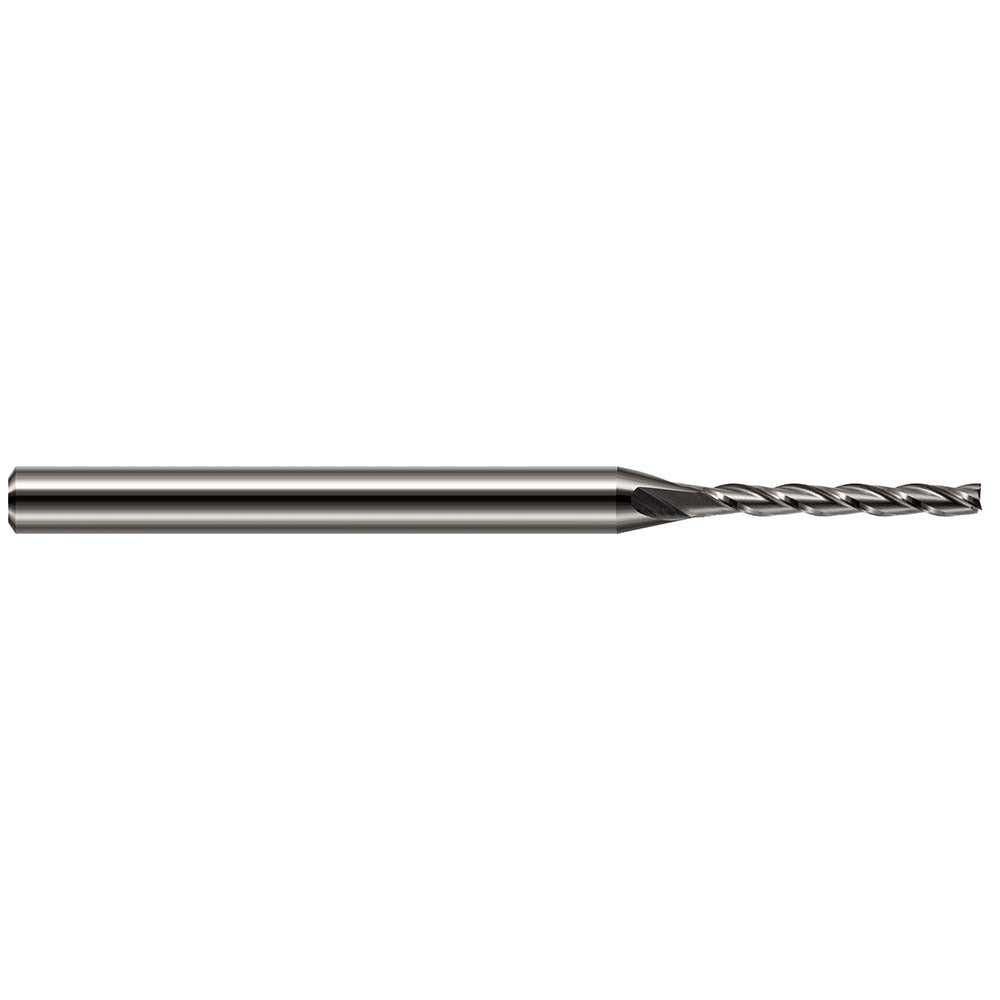

Harvey Tool 33710 Square End Mill 5/32 in 4 Flute Carbide

Product Description

The HARVEY TOOL 33710 is a solid carbide square end mill designed for precision milling operations in ferrous and non-ferrous materials. With a 5/32 inch (0.1562 inch) cutting diameter and 1-1/4 inch (1.25 inch) length of cut, it handles slotting, profiling, and peripheral milling in tight-tolerance work. The 4-flute geometry and 30-degree helix angle promote chip evacuation and surface finish quality. Centercutting capability allows plunge entry without a pre-drilled start hole. This tool is installed and used by machinists and CNC operators working in job shop, production, and tool-and-die environments.

The 33710 is suited for applications requiring a long length of cut relative to diameter, including deep slot milling and side wall finishing. The bright uncoated finish makes it a straightforward choice for general-purpose machining where coating is not required by the application. The 3/16 inch shank diameter fits standard collets and end mill holders used in CNC machining centers and manual mills. Right-hand cut and right-hand flute direction are the standard orientation for conventional and climb milling on most machine setups.

Key Features

• 5/32 inch cutting diameter with 1-1/4 inch length of cut for deep slotting and profiling
• 4-flute solid carbide construction for rigidity and wear resistance
• 30-degree helix angle promotes smooth chip flow and consistent surface finish
• Centercutting design allows direct plunge entry into material
• Right-hand cut and right-hand flute direction for standard milling operations
• Bright uncoated finish suitable for general-purpose machining applications

Compatibility

Designed as a direct-fit replacement for standard 3/16 inch shank square end mill positions in CNC machining centers, vertical mills, and manual milling machines using compatible collet or end mill holder systems.

Installation Notes

Installation and tool changes must be performed with the machine spindle fully stopped and the control in a safe state. Secure the 3/16 inch shank in a clean, undamaged collet or end mill holder to the torque specification required by the toolholder manufacturer. Inspect the cutting edges before use and confirm runout is within acceptable limits before beginning a cut. Tool selection, speeds, and feeds should be confirmed against the material being machined and the machine tool specifications.
