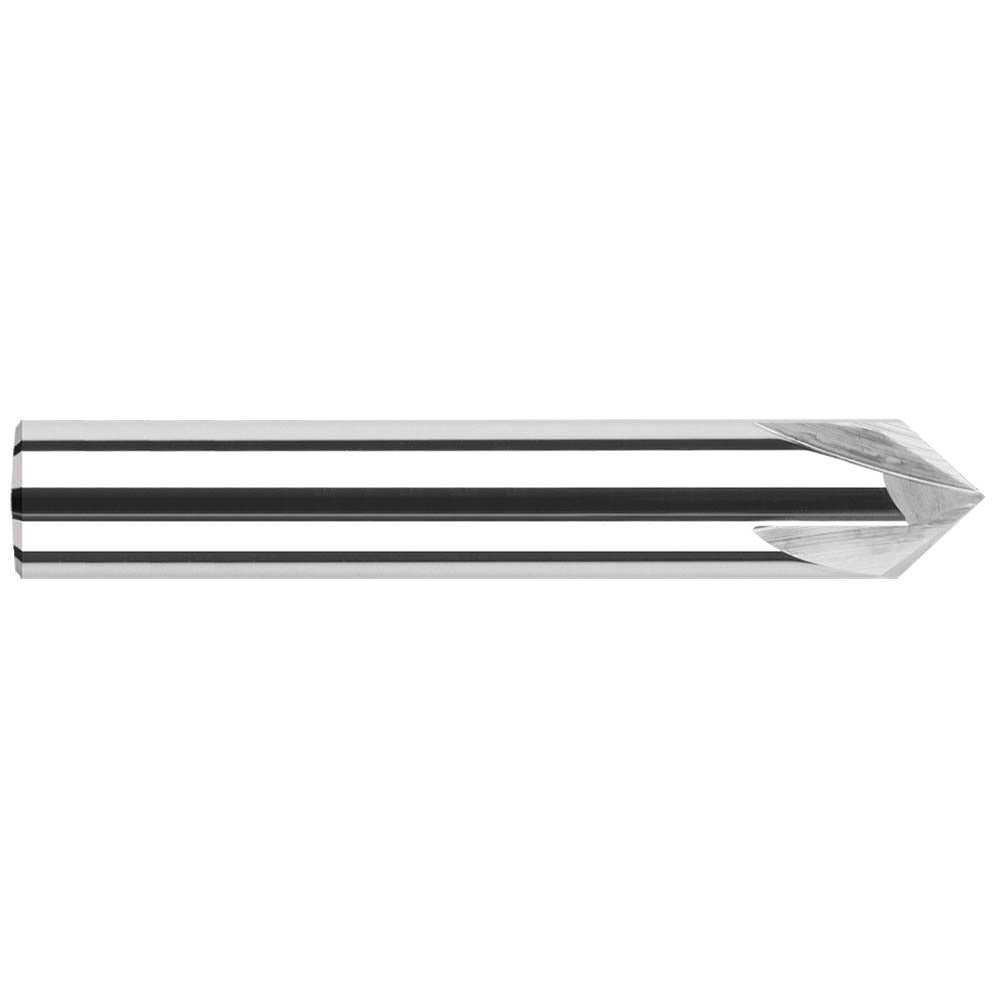

Harvey Tool 18730 Chamfer Mill 1/8 in 2 Flute Solid Carbide

Product Description

The HARVEY TOOL 18730 is a solid carbide chamfer mill designed for chamfering, deburring, and edge-breaking operations on a variety of workpiece materials. With a 1/8 inch cutter head diameter and a 2-flute configuration, this tool delivers clean, precise chamfered edges in tight or confined workspaces where larger tooling cannot reach. The bright, uncoated finish makes it well suited for applications where coating compatibility is a concern or where maximum substrate sharpness is preferred. The right-hand cutting direction is standard for conventional CNC and manual milling setups. Machinists, tool-and-die makers, and production shop operators are the primary users of this tool.

This chamfer mill is appropriate for use on CNC machining centers and manual mills in both job shop and production environments. Its compact 1/8 inch diameter and 1-1/2 inch overall length make it a practical choice for small-part work, micro-component chamfering, and edge preparation in precision machining applications. The 0.1000 inch length of cut provides a controlled engagement zone suited for fine chamfer work on steel, aluminum, and other machinable materials.

Key Features

• Solid carbide construction for rigidity and long tool life
• 1/8 inch cutter head diameter for access in confined or small-part applications
• 2-flute design balances chip evacuation with surface finish quality
• Bright, uncoated finish preserves substrate sharpness and suits a wide range of materials
• Right-hand cutting direction compatible with standard spindle rotation
• 0.1000 inch length of cut for controlled chamfer depth engagement

Compatibility

Designed as a standard chamfer mill for use in CNC machining centers and manual milling machines accepting a 1/8 inch shank diameter collet or tool holder.

Installation Notes

Installation should be performed by a qualified machinist following standard toolroom practices. Secure the 1/8 inch shank in a properly sized collet or end mill holder and confirm runout before cutting. Power down and lock out the spindle before changing or setting tooling. Verify spindle speed and feed rate recommendations from the manufacturer or machining reference data before engaging the workpiece.
