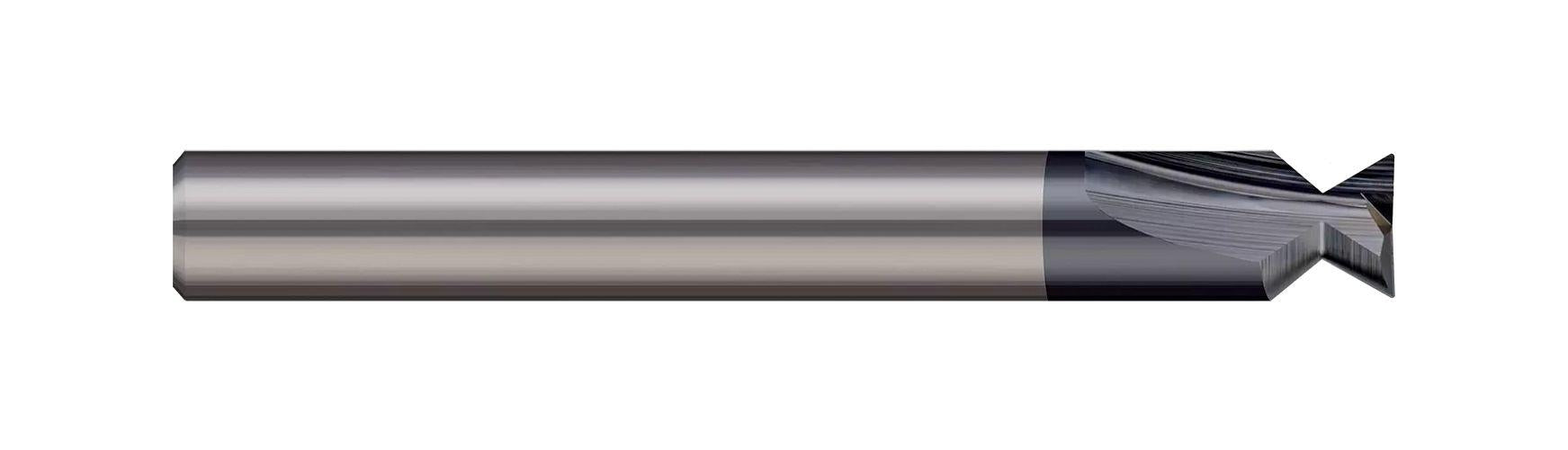

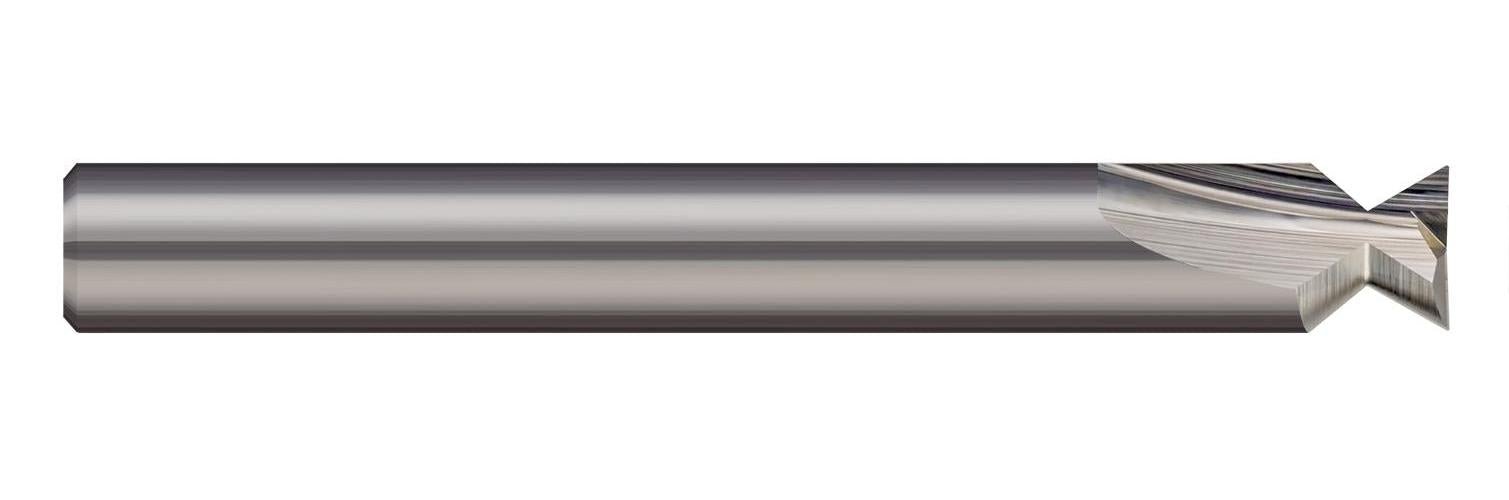

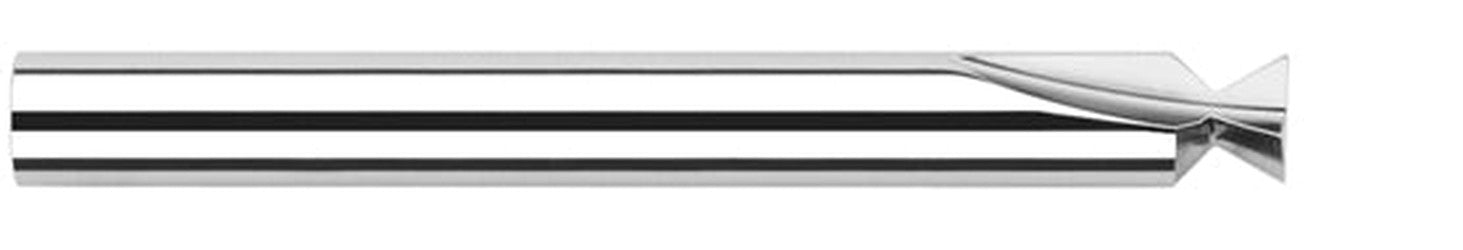

Harvey Tool 16720 5/16 in Dia Cutter 60 deg Included Angle

Product Description

The Harvey Tool 16720 is a 5/16 inch diameter dovetail cutter made from solid carbide. This carbide cutter features a 60-degree included angle and is ideal for a variety of milling applications. The overall length measures two and a half inches. It is designed to assist with creating angled grooves and joints in various materials.

• Material: Solid Carbide
• Three flutes for efficient cutting
• Uncoated for immediate use

Product Highlights

Perfect for milling dovetail joints and profiles in numerous materials.

Product Information

Standard Information

• Brand: Harvey Tool
• MPN: 16720

Technical Specifications

• Diameter: 0.3125 inches (5/16 inch)
• Shank Diameter: 0.3125 inches (5/16 inch)
• Overall Length: 2.5000 inches (2 1/2 inches)
• Cut Length: 0.1560 inches
• Neck Diameter: 0.1470 inches
• Corner Radius: 0.0100 inches
• Number of Flutes: 3
• Included Angle: 60 degrees
