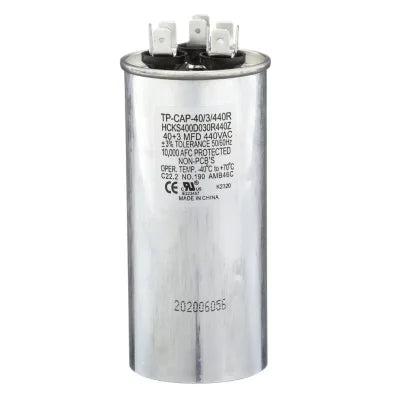

Hartland Controls tp-cap-40/3/440r Run Capacitor 440VAC

Product Description

The HARTLAND CONTROLS tp-cap-40/3/440r is a dual-rated motor run capacitor designed for use in HVAC equipment requiring two capacitance values in a single round housing. Rated at 40 MFD and 3 MFD with a 440 VAC operating voltage, this capacitor supports both the compressor and fan motor circuits from one component. The aluminum oil-filled construction meets UL 810 and EIA standard RS-456 requirements. It is sized and rated for residential and light commercial HVAC systems and is installed by licensed HVAC technicians during routine service calls or compressor and condenser fan motor replacements.

This run capacitor is suited for split-system air conditioners, heat pumps, and package units where a single dual-rated capacitor serves both the compressor and the outdoor fan motor. The round case form factor fits standard capacitor brackets in condenser units. The 40 MFD rating supports the compressor start and run function while the 3 MFD rating supports the condenser fan motor. It is appropriate for residential and light commercial condensing unit applications where a dual-rated 440 VAC round capacitor is specified.

Key Features

• Dual-rated capacitance: 40 MFD and 3 MFD in a single round housing
• 440 VAC operating voltage for compatibility with standard HVAC equipment
• Aluminum oil-filled construction for reliable thermal performance
• Round case design fits standard condenser unit capacitor brackets
• Manufactured in accordance with UL 810 and EIA standard RS-456

Compatibility

Designed as an OEM-style replacement dual-rated run capacitor for residential and light commercial HVAC condensing units requiring a 40/3 MFD, 440 VAC round capacitor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Always disconnect and lock out power to the unit before handling capacitors, and discharge the capacitor using an approved discharge tool before removal, as run capacitors can retain a dangerous charge even after power is removed. Verify that the replacement MFD ratings and voltage rating match the equipment nameplate specifications before installation. Follow all applicable local codes and manufacturer service documentation during replacement.

Technical Specifications

• Capacitance: 40 MFD + 3 MFD
• Voltage Rating: 440 VAC
• Configuration: Dual Rated
• Case Shape: Round
• Construction: Aluminum oil-filled
• Certifications: UL 810, EIA standard RS-456
• Manufacturer Part Number (Alternate): HCKS400D030R440217Z

Standard Information

• Brand: HARTLAND CONTROLS
• Manufacturer Part Number: tp-cap-40/3/440r
