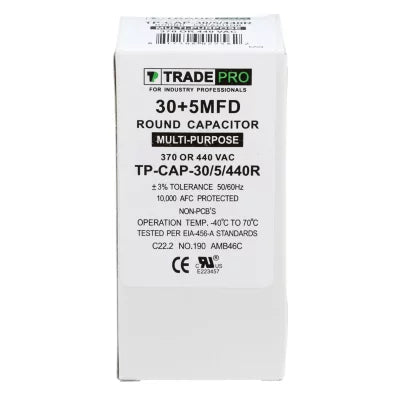

Hartland Controls tp-cap-30/5/440r Run Capacitor 440 Vac

Product Description

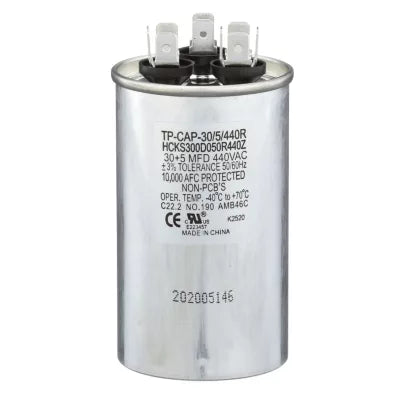

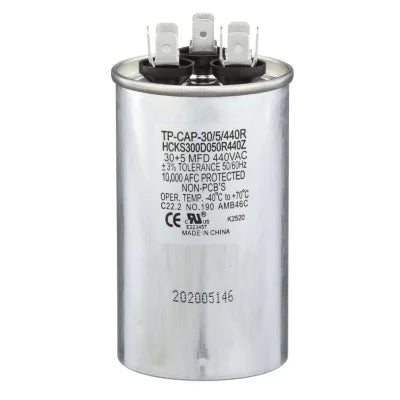

The HARTLAND CONTROLS tp-cap-30/5/440r is a dual-rated motor run capacitor rated at 30 plus 5 microfarads (MFD) and 440 VAC. It features a round aluminum oil-filled case and is designed for continuous-duty motor run applications in HVAC systems. This capacitor supports two motor loads simultaneously from a single unit, making it a common choice for split-system air conditioners and heat pumps where both the compressor and the condenser fan motor require run capacitor support. Licensed HVAC technicians install this part as a direct service replacement or as part of a new system startup.

This dual-rated run capacitor is suited for residential and light commercial HVAC applications. It is typically installed in split-system air conditioners, heat pumps, and package units where a single capacitor must serve both the compressor and an auxiliary motor such as the condenser fan. The round case format fits standard capacitor brackets and mounting hardware common in outdoor condensing units. Units requiring separate 30 MFD and 5 MFD capacitors can often be consolidated using this dual-rated component.

Key Features

• Dual-rated design supports two motors from one capacitor: 30 MFD for compressor, 5 MFD for fan motor
• 440 VAC rating provides a wider voltage safety margin versus standard 370 VAC units
• Round aluminum oil-filled construction for thermal durability in high-ambient outdoor environments
• Manufactured in accordance with UL 810 and EIA standard RS-456
• Round case fits standard condensing unit capacitor brackets without modification

Compatibility

Designed as an OEM-style replacement dual run capacitor for residential and light commercial HVAC condensing units requiring a 30 plus 5 MFD, 440 VAC, round configuration.

Installation Notes

Run capacitors must be installed by a qualified HVAC technician. Always disconnect and lock out power to the condensing unit before handling capacitors, and discharge the capacitor fully before making or breaking any terminal connections, as run capacitors can retain a dangerous charge after power is removed. Verify that the replacement MFD ratings and voltage rating meet or exceed the original equipment specifications before installation. Secure the capacitor in its mounting bracket to prevent vibration damage during operation.

Technical Specifications

• Capacitance: 30 plus 5 MFD (dual rated)
• Voltage Rating: 440 VAC
• Case Style: Round
• Construction: Aluminum oil-filled
• Rating Type: Dual rated
• Standards: UL 810, EIA RS-456
• Manufacturer Part Number (OEM Cross): HCKS300D050R440217Z

Standard Information

• Brand: HARTLAND CONTROLS
• Manufacturer Part Number: tp-cap-30/5/440r
