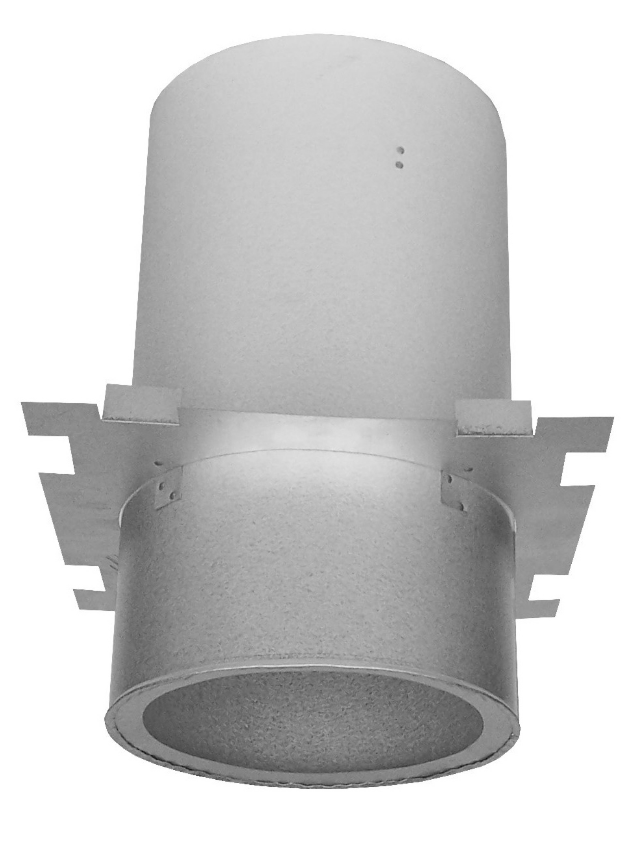

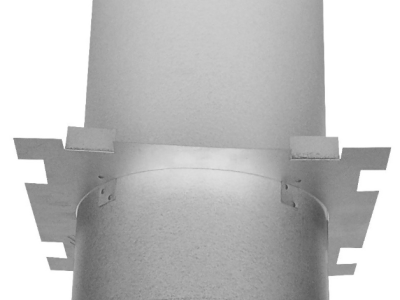

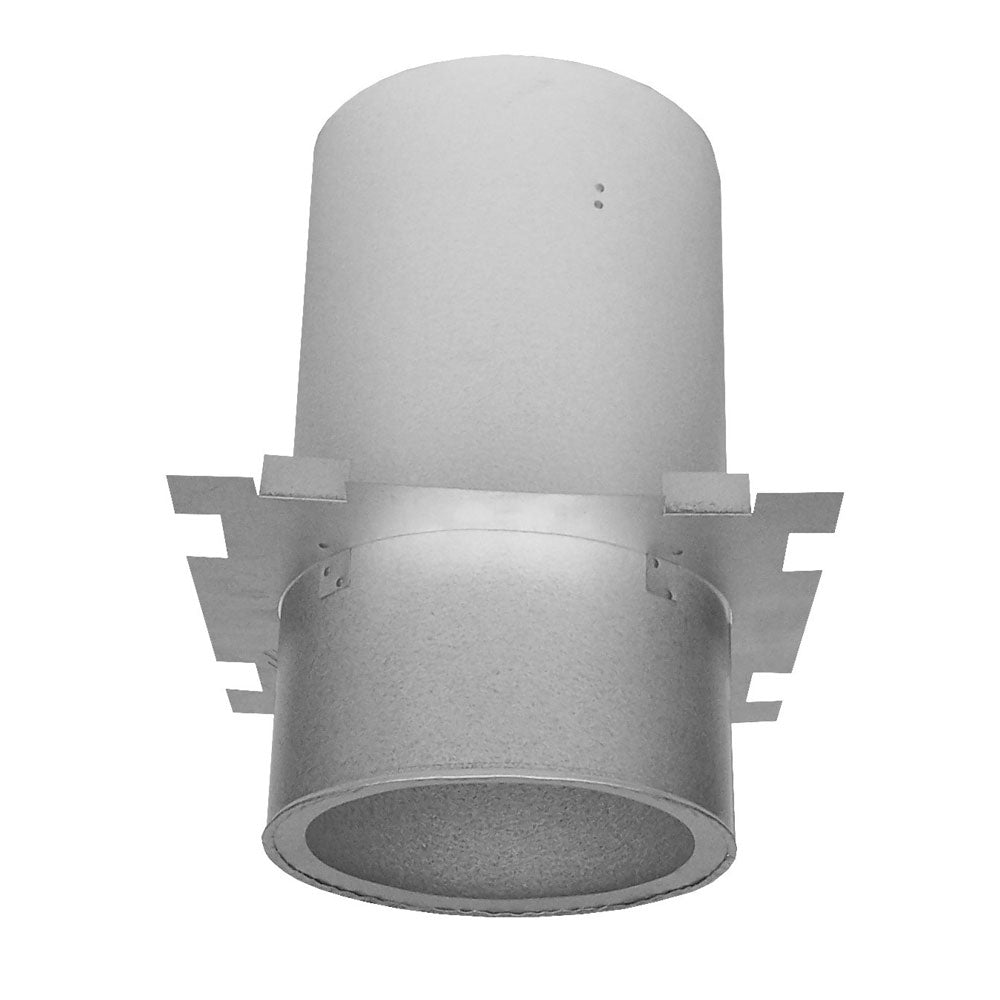

HART & COOLEY 8TLCFRS Hart & Cooley 8-Inch All Fuel Vent Firestop Radiation Shield / Joist Shield

Product Description

The HART & COOLEY 8TLCFRS is an eight-inch all-fuel chimney firestop radiation shield, also referred to as a joist shield. Made of stainless steel, this firestop is intended for use with appliances burning solid, liquid, or gas fuels under natural draft conditions. It is essential for installations where an enclosed vent runs from a lower living area to an upper space. This shield ensures a minimum clearance of two inches from combustible materials. It is applicable in floor and ceiling penetrations, with exceptions noted for ceiling support. The firestop is not required when the vent passes through the roof.

• Constructed of stainless steel
• Maintains a two-inch clearance to combustibles
• Used in floor and ceiling penetrations, excluding those with ceiling support

Product Highlights

This firestop serves a critical role in venting systems, ensuring safety and compliance with installation standards.

Product Information

Standard Information

• Brand: Hart & Cooley
• Model: 8TLCFRS

Technical Specifications

• Type: All Fuel
• Material: Stainless Steel
• Diameter: 8 inches
• Style: Round
• Dimension A: 16 inches
• Dimension B: 12 inches
• Shape: Firestop
