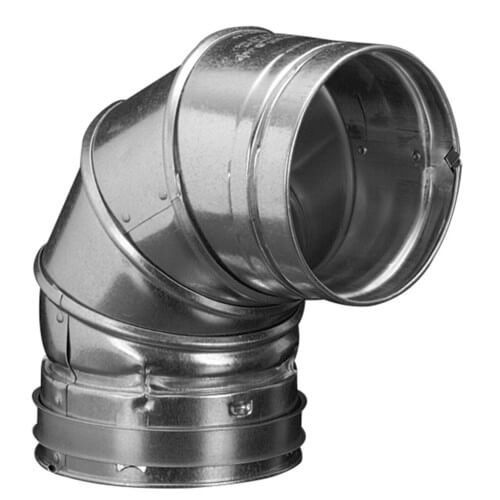

Hart & Cooley 7REA90 REA Vent Elbow 7 Inch 90 deg

Product Description

The Hart & Cooley 7REA90 REA Vent Elbow is an adjustable, round elbow designed for type B gas vent systems. It features a unique locking band that provides a 360-degree turning radius. Constructed with a corrosion-resistant aluminum inner wall and a galvanized steel outer pipe, it ensures rapid warm-up and maximum protection. This elbow adjusts from 0 up to 90 degrees.

• Adapter to transition from all brands of listed type B gas vent to ALK liner
• Unique locking band provides 360 deg turning radius of the pipe and fittings
• Deep locking groove assures solid joint and secure lock

Product Highlights

This 7-inch diameter elbow is suitable for HVAC applications and is UL Listed.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 7REA90

Technical Specifications

• Type: Adjustable Elbow
• Angle: 90 deg
• Finish: Galvanized
• Height: 11-3/4 Inch
• Series: REA
• Diameter: 7 Inch
• Material: G-90 Steel, Aluminum
• Thickness: 0.018 Inch Outer, 0.012 Inch Inner
• Manufacturer: Hart & Cooley
• Vent/Duct Size: 7 Inch
• Temperature Rating: 550 deg F
• Suitable For Use With: Type B Gas Vent Systems
• Product Type: Elbow
• Venting Material: Aluminum, Steel
• Shape: Round
• Application: HVAC
• Vendor Name: Hart and Cooley
• URI Part Number: 7REA90
• Vendor Part Number: 016407
• Length: 10.875
• Width: 8
• Approvals: UL Listed
• Bend Angle Degree: 90°
• Brand: HART & COOLEY® By duravent™
• Composition: Steel
• EAN: 0684048164070
• Gauge: 26 GA
• Inside Diameter: 7"
• Prop 65: No
• Substantial Commodity: Steel; Aluminum
• UPC: 684048164070
• Connection Type: Locking Band
