Hart & Cooley 650 30 x 14 W Series 30 inches x 14 inches Return Air Grille

Product Description

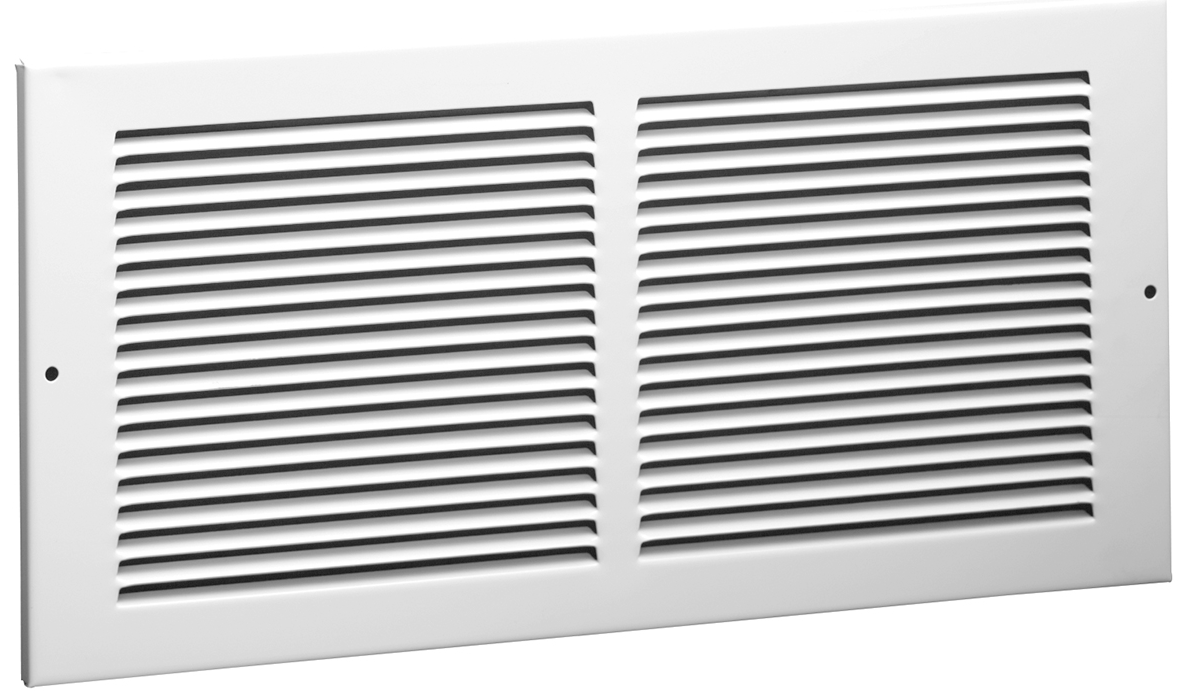

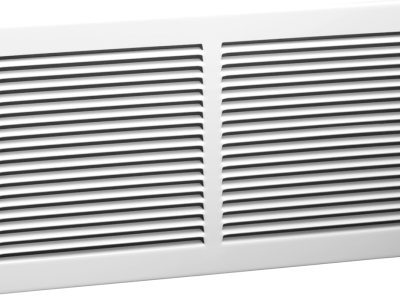

The Hart & Cooley 650 30 x 14 W Series 30" x 14" Return Air Grille is designed to fit a 30"W x 14"H hole. Features all steel construction with 1/3" spaced fins set at 20 degrees with horizontal face bars. Ideal for residential and commercial HVAC systems.

• Exceptional free area
• 5/16 in margin turnback
• All steel construction

Product Highlights

Durable steel construction with a bright white finish. Designed for optimal airflow and easy installation.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 650 30 14 W
• Country of Origin: Domestic

Technical Specifications

• Brand: Hart & Cooley
• Model / MPN: 650 30 14 W
• Series: 650
• Type: Return Air Grille
• Material: Steel
• Deflection Angle: 20 deg
• Blade Spacing: 1/3 in
• Duct Width: 29-1/2 in
• Duct Height: 13-29/32 in
• Overall Width: 31-3/4 in
• Overall Length: 15-3/4 in
• Finish: Bright White Enamel
• Domestic/Import: Domestic
• Height (inches): 14
• Width (inches): 30
