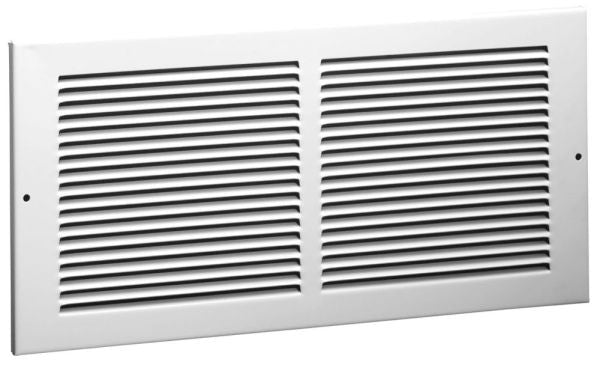

Hart & Cooley 43177 Return Air Grille 30 x 6 inch

Product Description

The HART & COOLEY 43177 return air grille delivers consistent air return performance. Designed for residential and light commercial HVAC systems, this grille features horizontal blades with a fixed 20° deflection for smooth and efficient return airflow. Constructed from steel with a bright white finish, it ensures a clean appearance and reliable performance.

• All-steel construction
• 1/3" spaced fins set at 20 degrees
• Exceptional free area

Product Highlights

Durable steel construction with 1/3" spaced fins set at 20 degrees for residential and light commercial HVAC systems.

Product Information

Standard Information

• Brand: HART & COOLEY
• Manufacturer Part Number: 43177

Technical Specifications

• MPN: 43177
• Brand: HART & COOLEY
• UPC: 684048431776
• Manufacturer: Hart & Cooley
• Product Type: HOME_LIGHTING_ACCESSORY
• Product Group: Home Improvement
• Series: 650
• Material: Steel
• Application: residential and light commercial HVAC return systems
• Width (Wall Opening): 30"
• Height (Wall Opening): 6"
• Wall Opening (Inches): 30" x 6"
• Overall Size: 31-3/4" x 7-3/4"
• Equivalent Part Number: 43177
• Length (inches): 31.75
• Width (inches): 30
• Height (inches): 6
• Item Type: Registers and Grilles
• Sub Type: Return Grille
• Deflection Angle: 20 deg
• Overall Width: 30 in
• Duct opening size: 30 x 6 inches
• Duct width: 29-1/2 inches
• Duct height: 5-29/32 inches
• Overall length: 7-3/4 inches
• Blade spacing: 1/3 inch
• Blade deflection: 20° fixed
• Mid-City Product ID: 8483
• Manufacturer Part Number: 43177
• Manufacturer Part Number Additional: 650_30X6-W
• Additional Information: Airflow Rating 256 to 512 CFM; Face Velocity 300 to 600 FPM; Pressure Loss 0.01 to 0.041; Application Residential
• Fin Angle: 20 Degree
• Fin Spacing: 1/3 Inch
• Finish Color: Bright White
• Grill Size: 30 Inch Width x 6 Inch Height
• Inclusions Features: 5/16 Inch Margin Turnback
• Model: 650
• Overall Dimensions: 31-3/4 Inch Width x 5/16 Inch Depth x 7-3/4 Inch Height
• Product Features: All Steel Construction; 1/3 Inch Spaced Fins Set at 20 Degrees; Exceptional Free Area; 5/16 Inch Margin Turnback
• Size: 30 x 6 in
• Style: Stamped Face
• Type: Return Air
• UNSPSC: 40101503
• Width: 31-3/4 in
